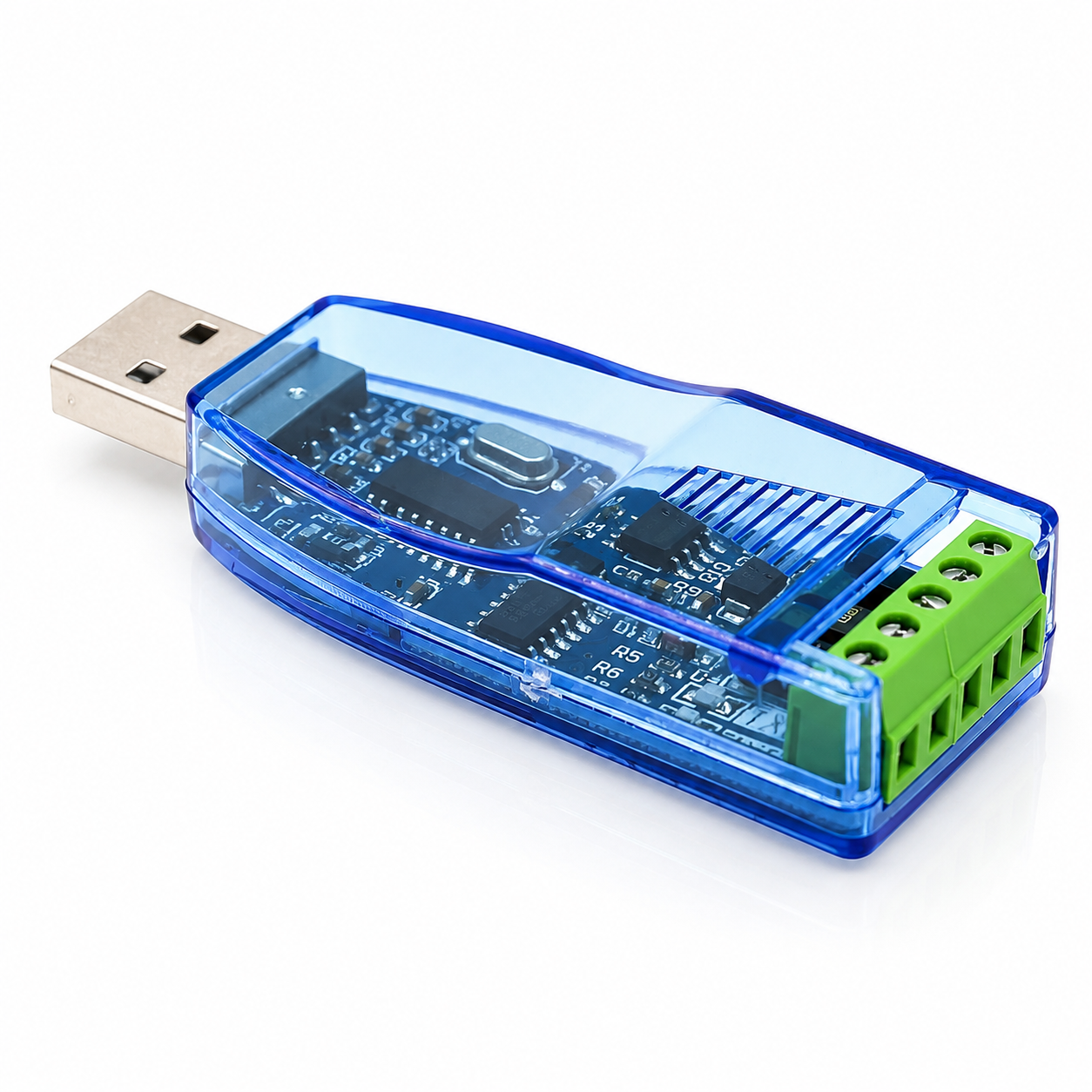

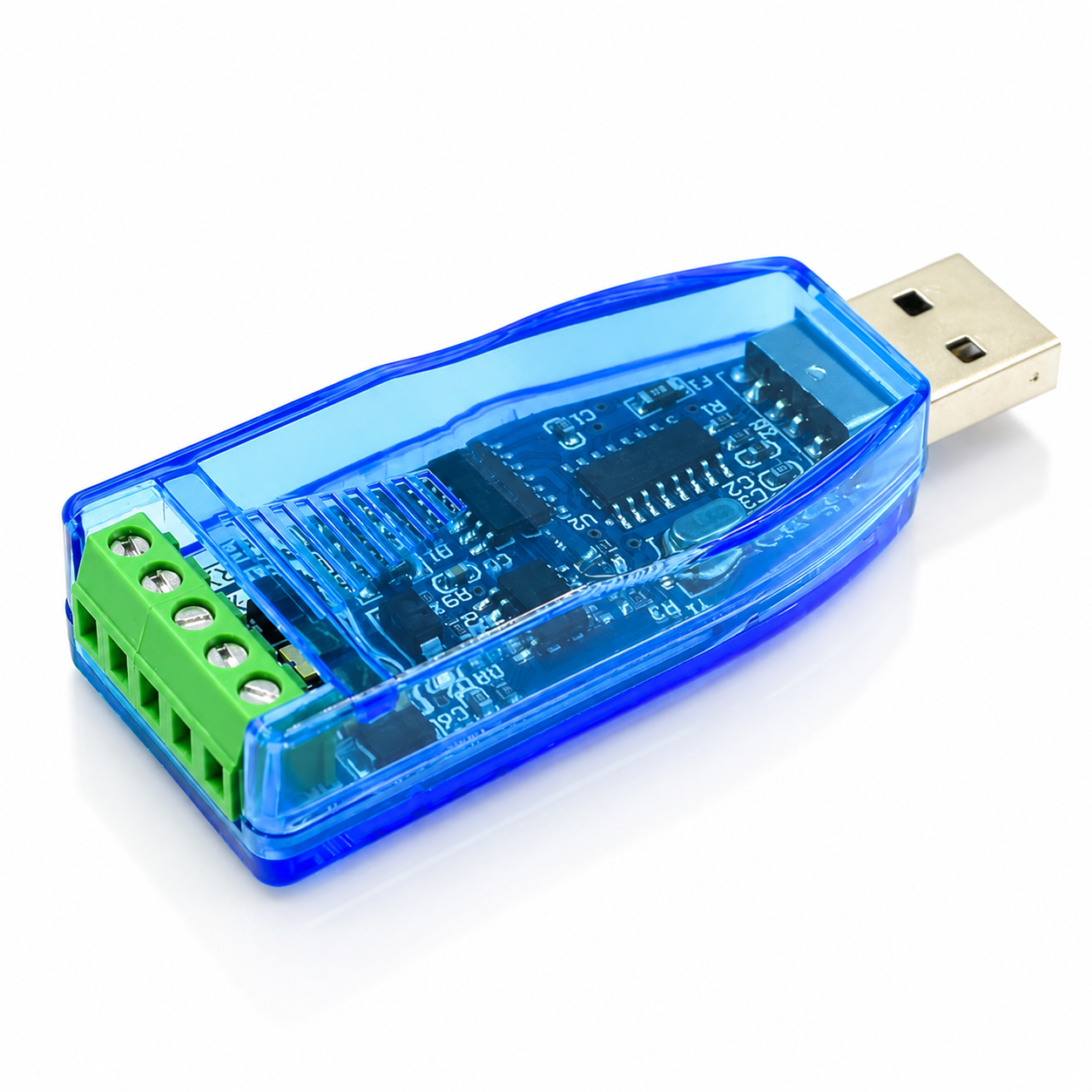

Converter Industrial USB to RS485

The USB to RS485 converter allows PC users to connect their RS-485 devices to systems that use a USB interface. This converter is suitable for printers, POS systems, industrial control devices and other devices with RS485 connections.

Technical specifications:

• Compatibility: USB v2.0 standard
• Interface: Network: USB, Serial: RS-485
• Port: One independent RS-485
• Connectors: USB Type A, Serial RS-485: Terminal screw
• Transmission speed: 600 bps to 115.2 Kbps
• Parity bit: odd, even, absent
• Data bits: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Driver support: Windows 2000/2003/XP/Vista/7 (32 bit and 64 bit)
• Power consumption: 1.5W @ 5V
• Maximum distance: 4000 ft (1200 m) @ 19.2 Kbps
• Housing: Blue transparent ABS
• Operating temperature: -20°~+65°
• Operating humidity: 20% to 95% (non-condensing)
