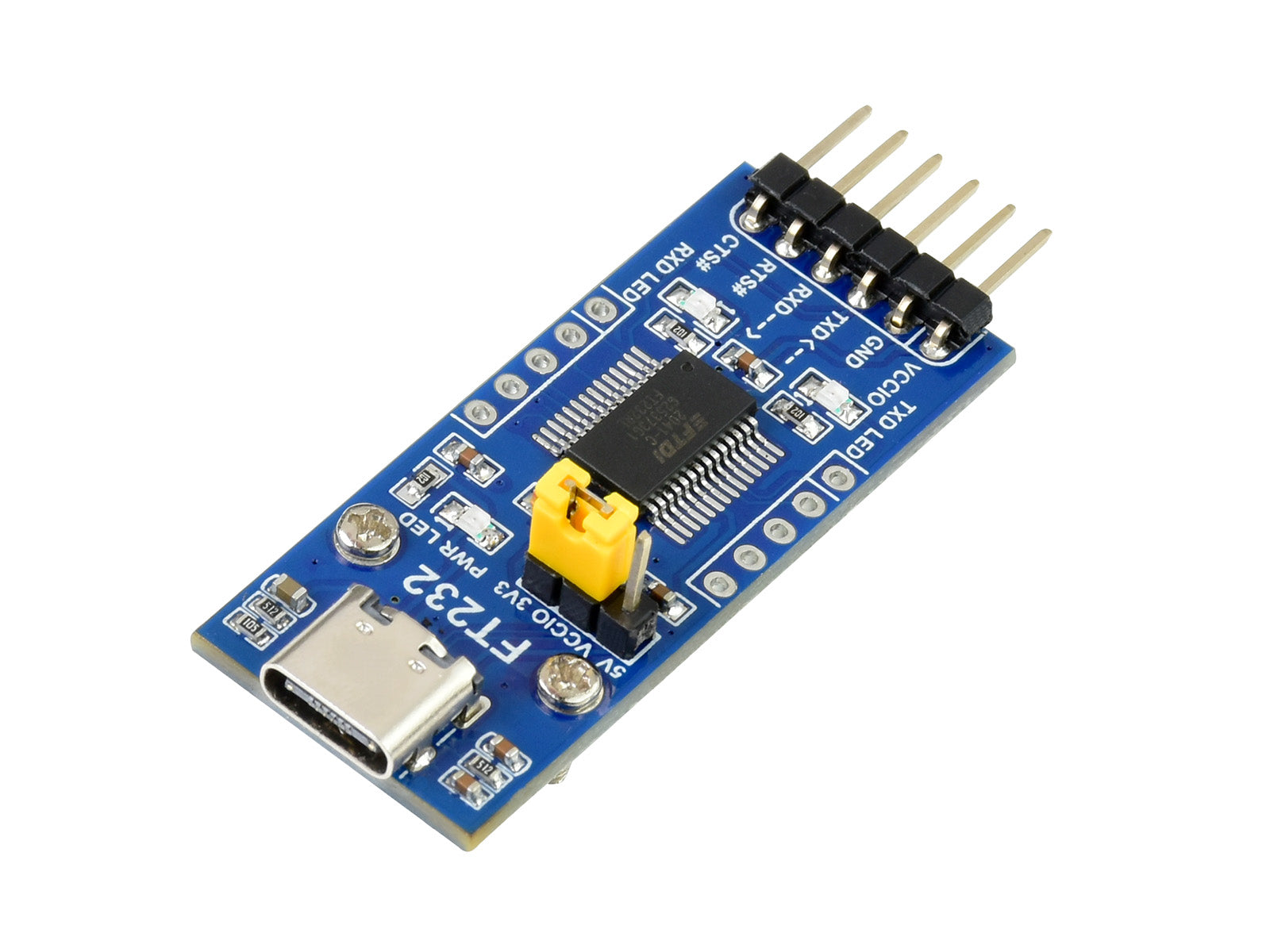

FT232 USB-C To UART (TTL) Communication Module
Uses FT232RL, compatible with 3.3V/5V logic levels
Features
- Original FT232RL onboard
- Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11, and more
- 3 VCCIO power modes via jumper selection:
- VCCIO - 5V: 5V output
- VCCIO - 3.3V: 3.3V output
- Open the jumper: powered from the target board (3.3V-5V)
- 3 LED indicators: TXD, RXD, PWR

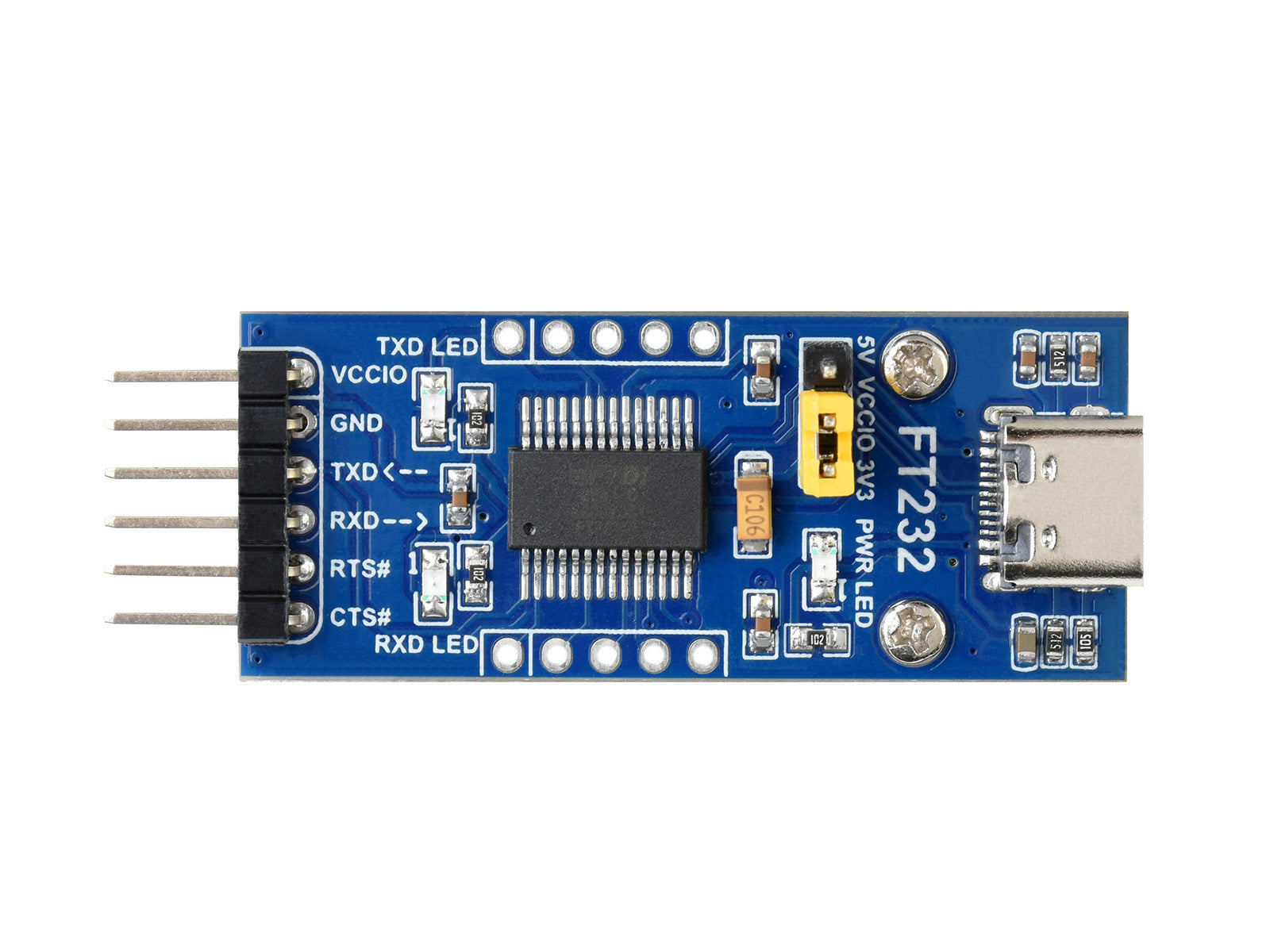

- Pins available on pin headers: TXD, RXD, RTS#, CTS#

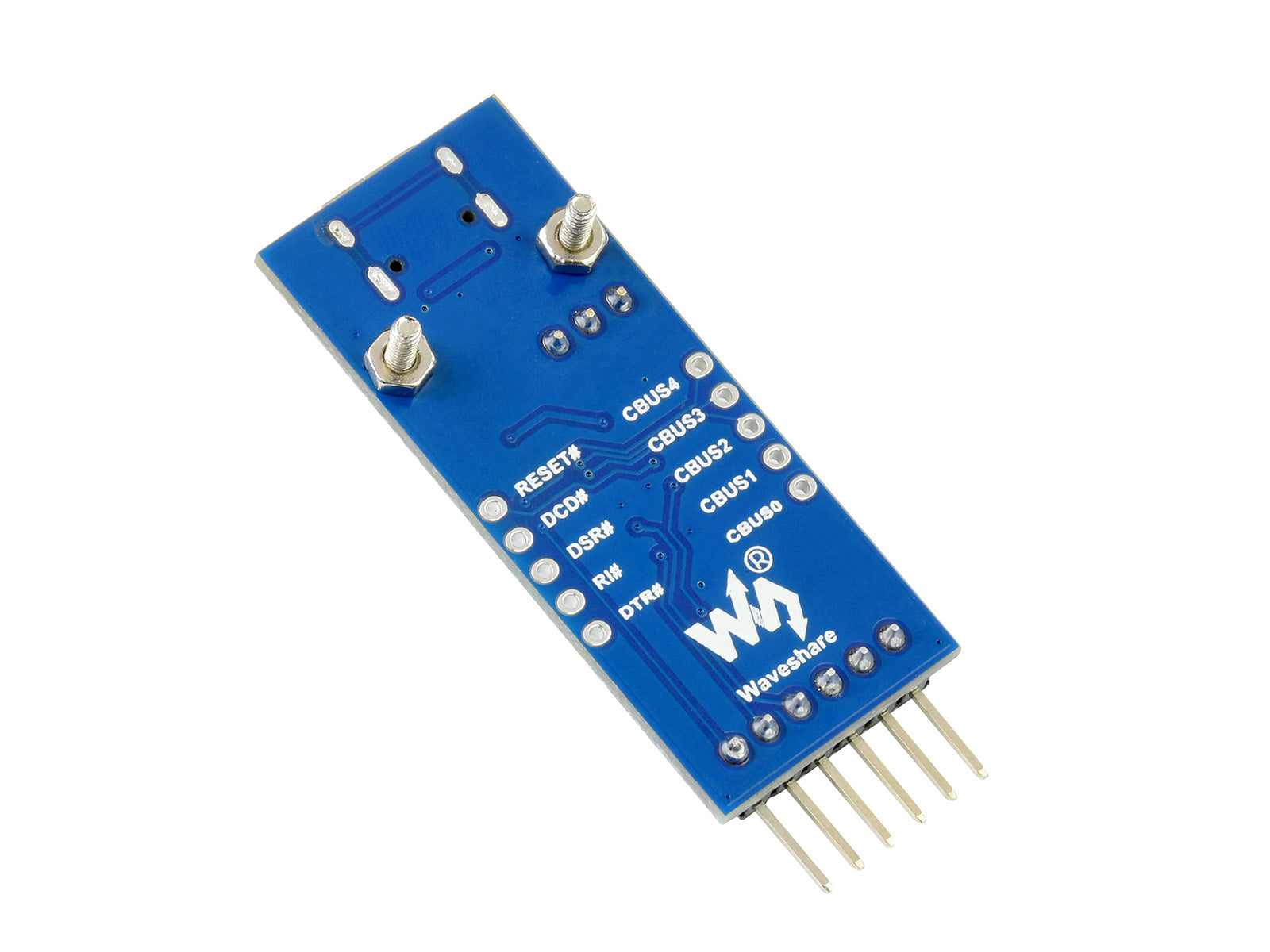

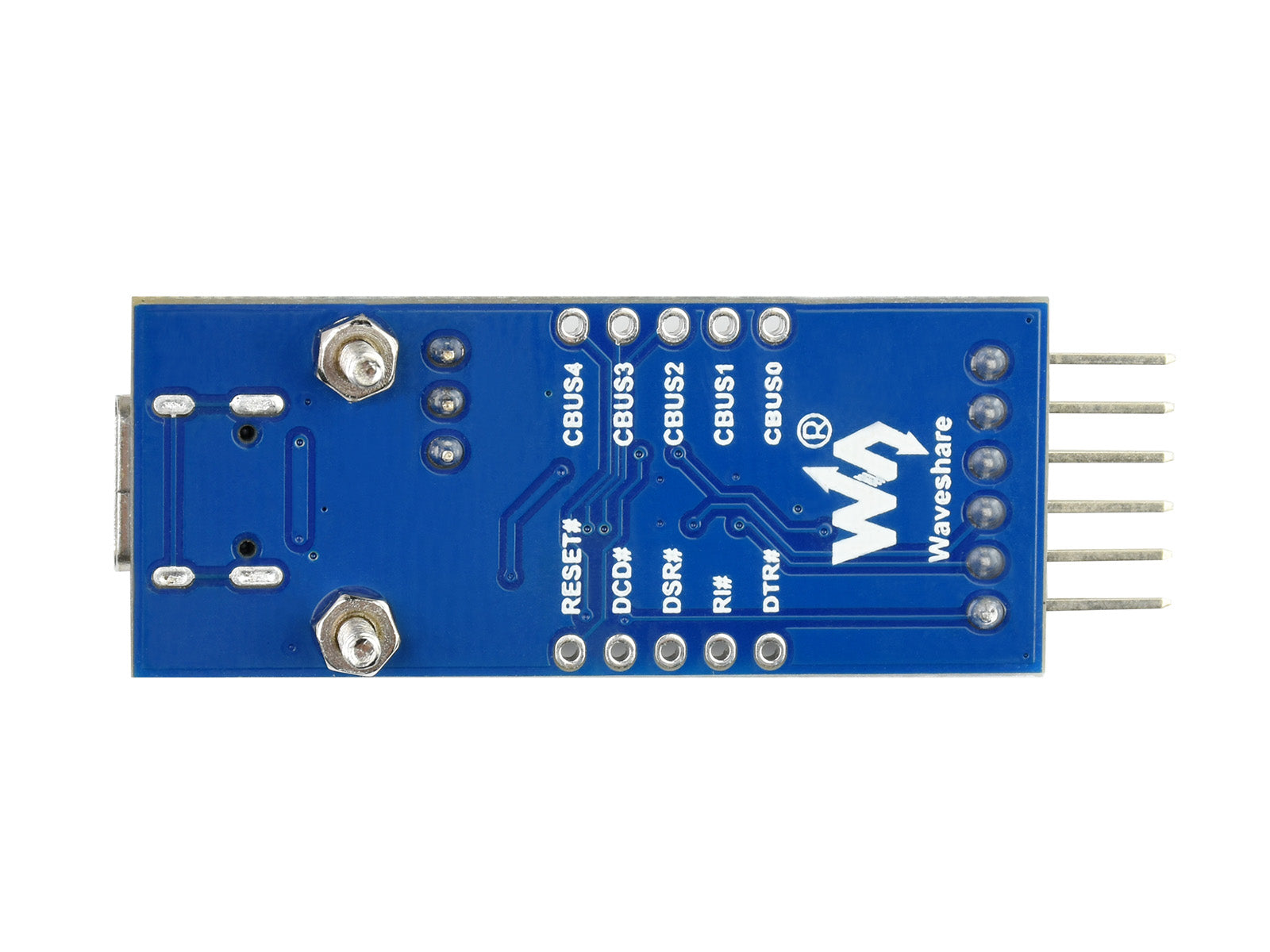

- Other pins available on through holes, easily connect to user system (pin pitch is compatible with universal perfboard)
FT232 Solution
Hardware Connection

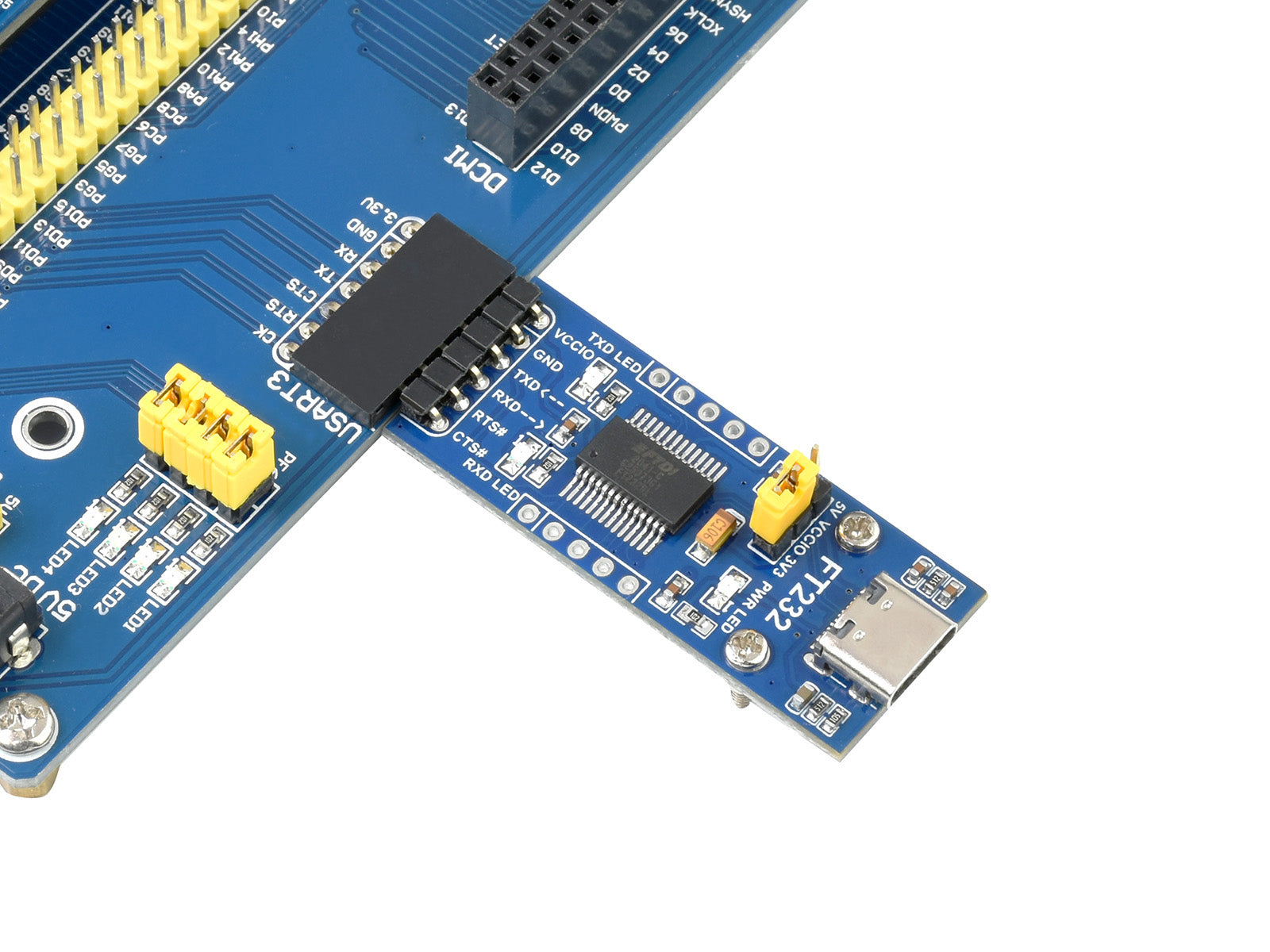

In the case of working with an MCU:
- VCCIO ↔ 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
- GND ↔ GND
- TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
- RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
- RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
- CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)
CAUTION: This module is ONLY compatible with the TTL level. To avoid damage, DO NOT connect it directly to an RS232 circuit.
Outline Dimensions
