PL2303 USB To UART (TTL) Communication Module USB Type A (20265)
PL2303 USB To UART (TTL) Communication Module USB Type A (20265)
SKU: 2661
Out of stock
Couldn't load pickup availability
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description
Key Features
- Uses the new PL2303GS chip
- Supports Windows XP / 7 / 8 / 10 / 11 and later versions
- 3 VCCIO power modes via jumper:
- VCCIO — 5V: 5V output
- VCCIO — 3.3V: 3.3V output
- Jumper open: powered by target board (1.8V / 2.5V / 3.3V / 5V)
- 3 LED indicators: TXD, RXD, PWR

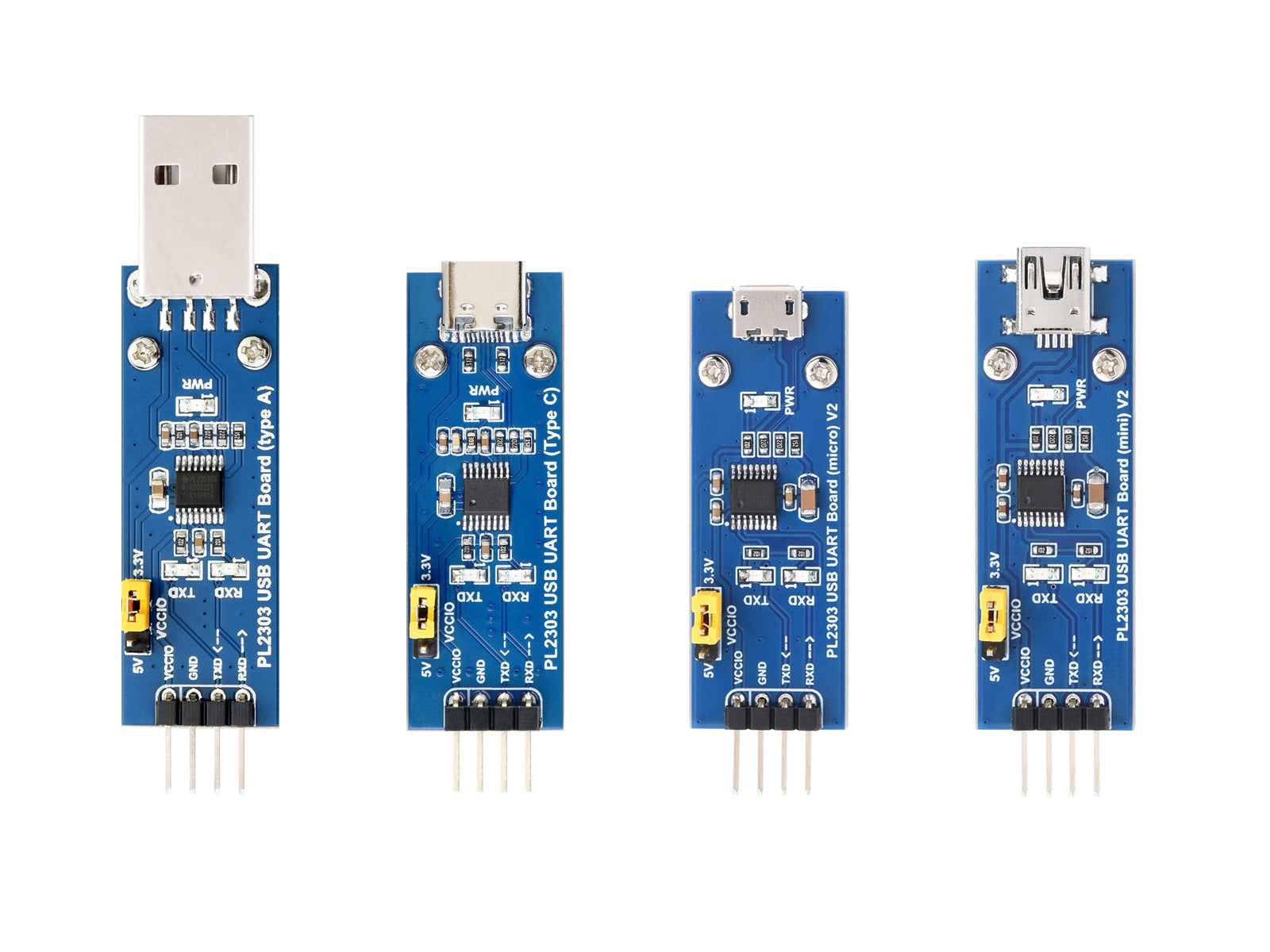

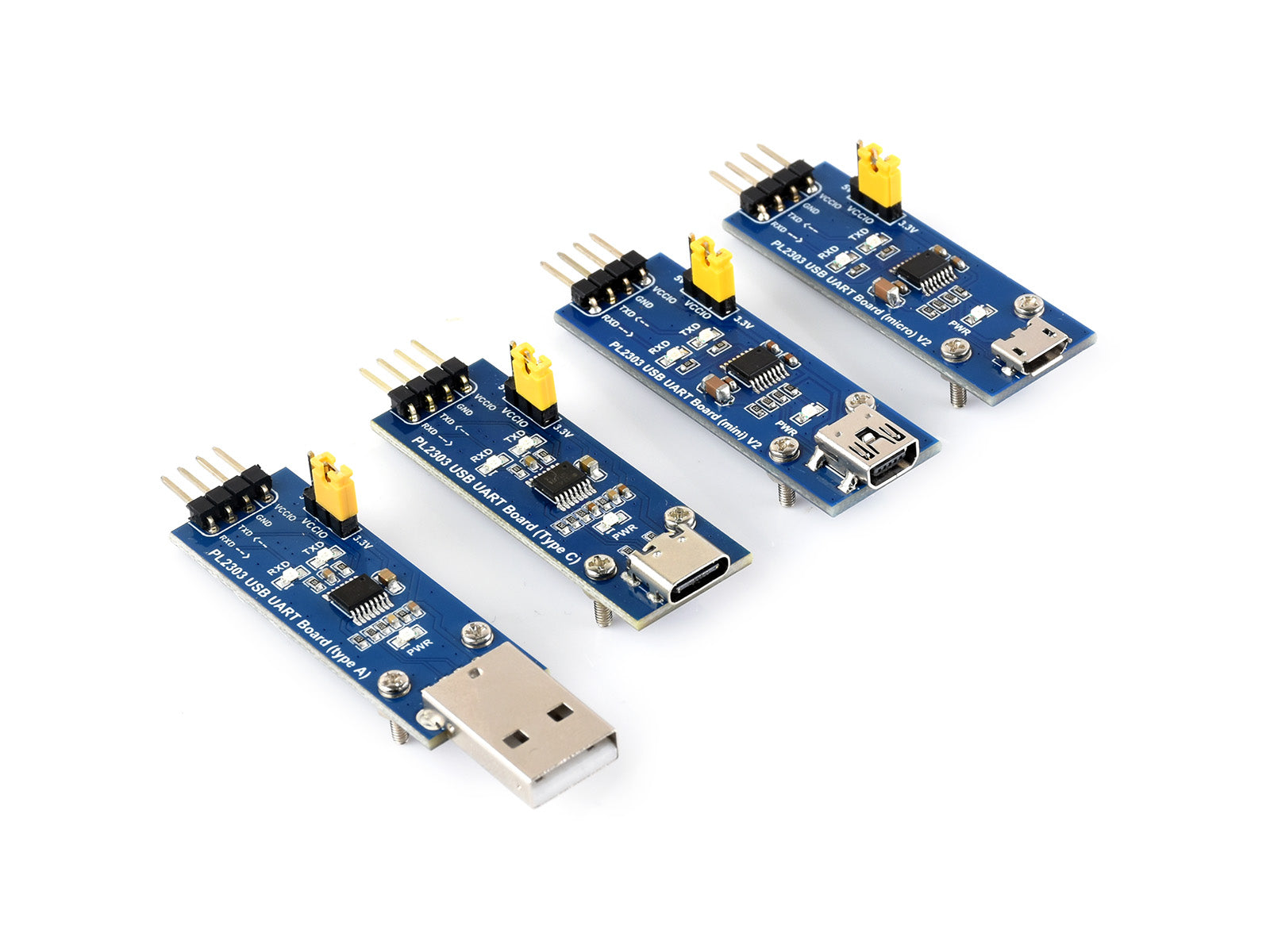

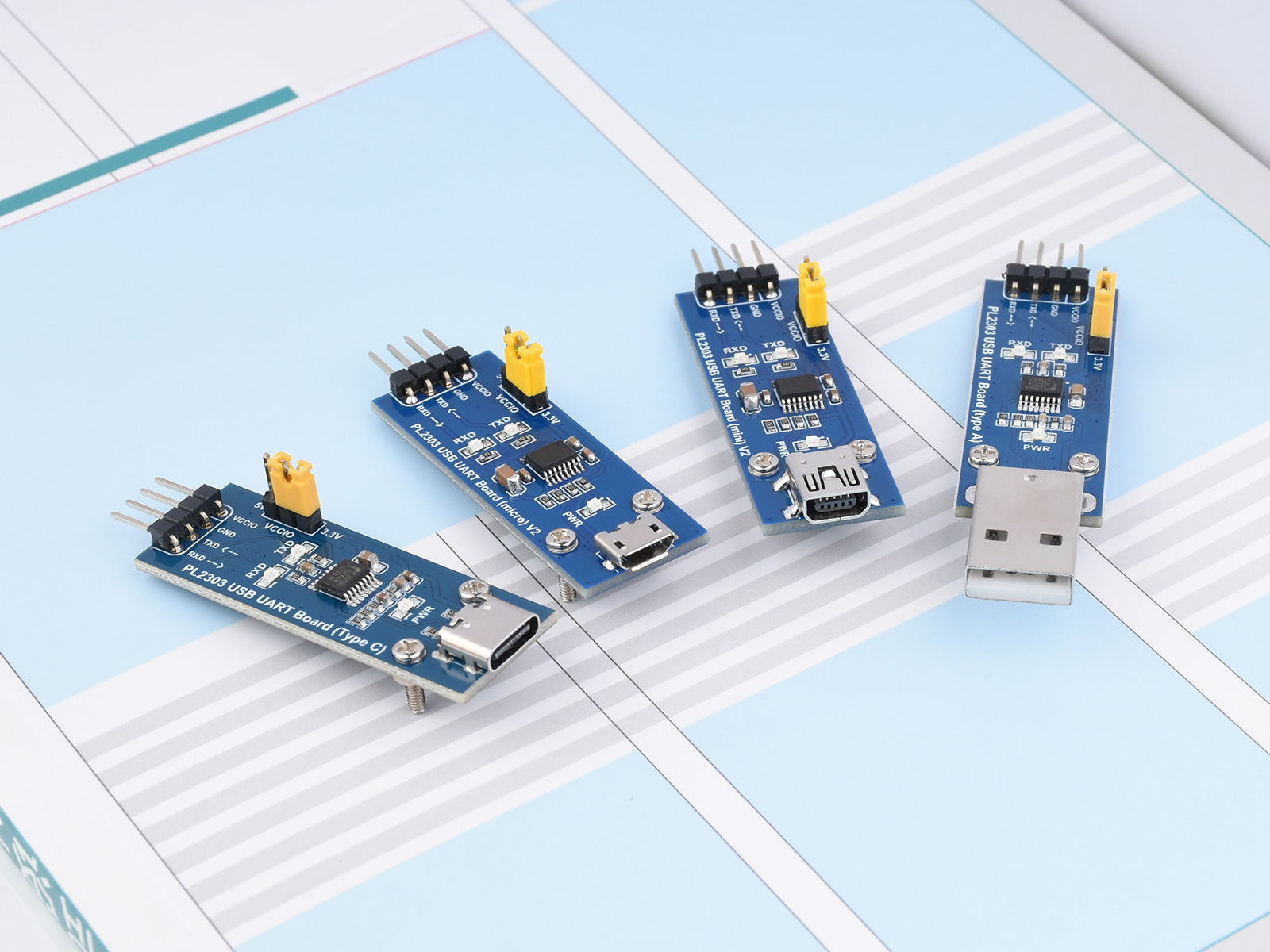

Variants
USB Type A connector
USB Type C connector
USB Micro connector
USB Mini connector
PL2303-based Solution
The module is built around the new PL2303GS chip, ensuring reliable and stable data transmission between the computer's USB interface and the microcontroller's UART interface.
Hardware Connection
Example of connecting PL2303 USB UART Board (Type A) to a microcontroller (MCU):
- VCCIO ↔ 3.3V or 5V (module powered by USB; jumper on board set to 3.3V or 5V)
- GND ↔ GND
- TXD ↔ MCU.RX (signal direction: MCU.RX ← PL2303 ← PC.TX)
- RXD ↔ MCU.TX (signal direction: MCU.TX → PL2303 → PC.RX)

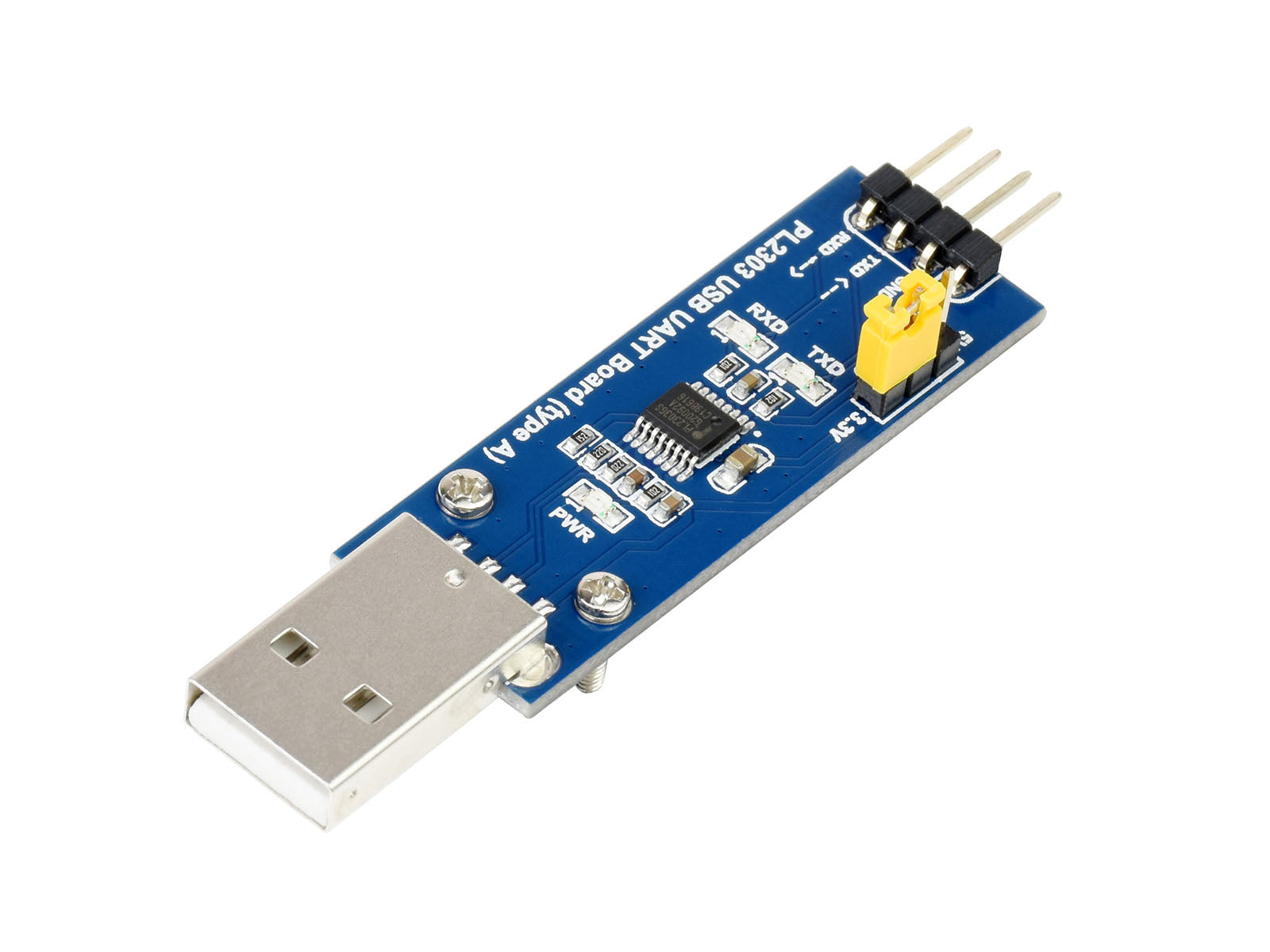

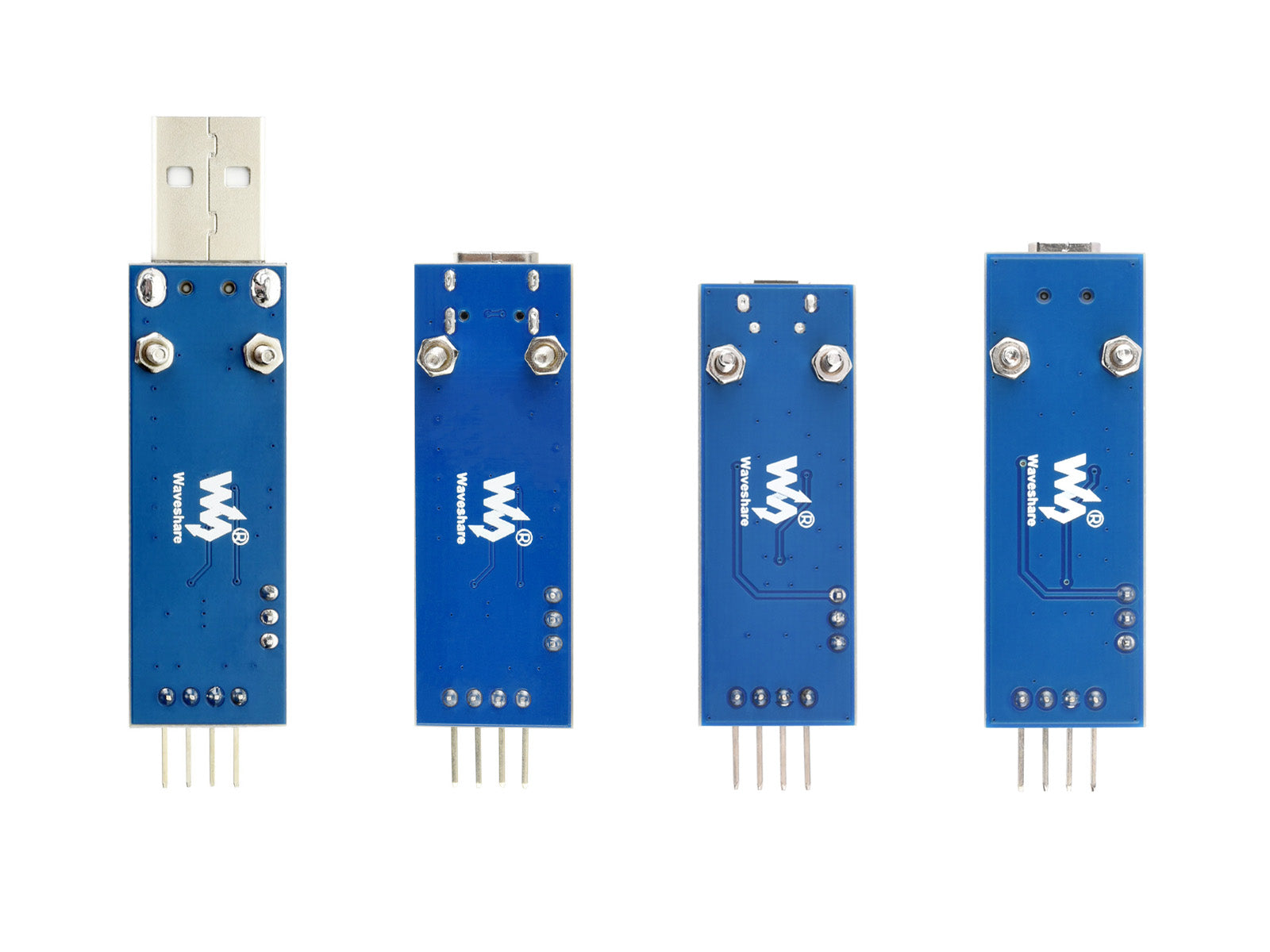

Appearance
Outline Dimensions
