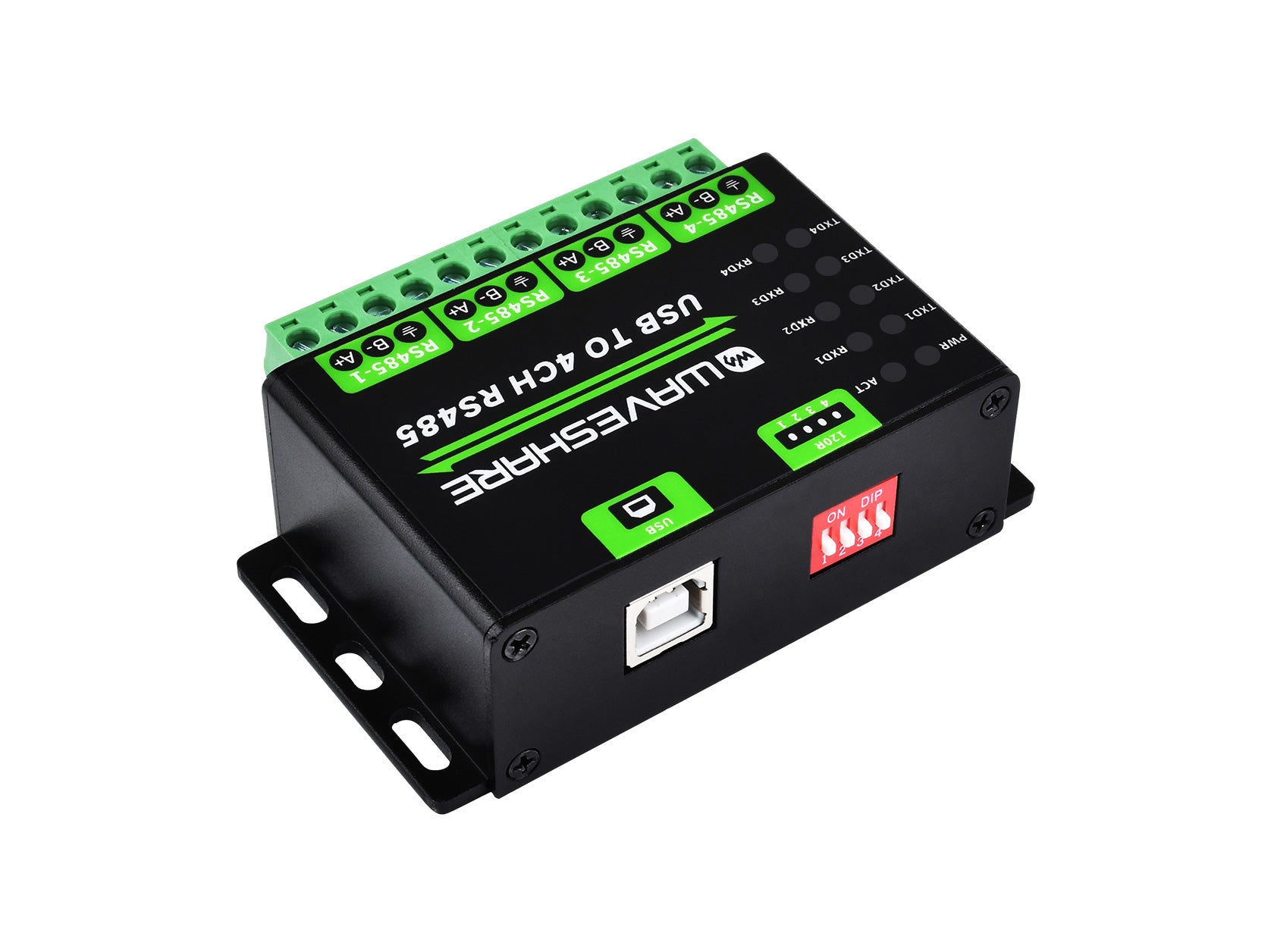

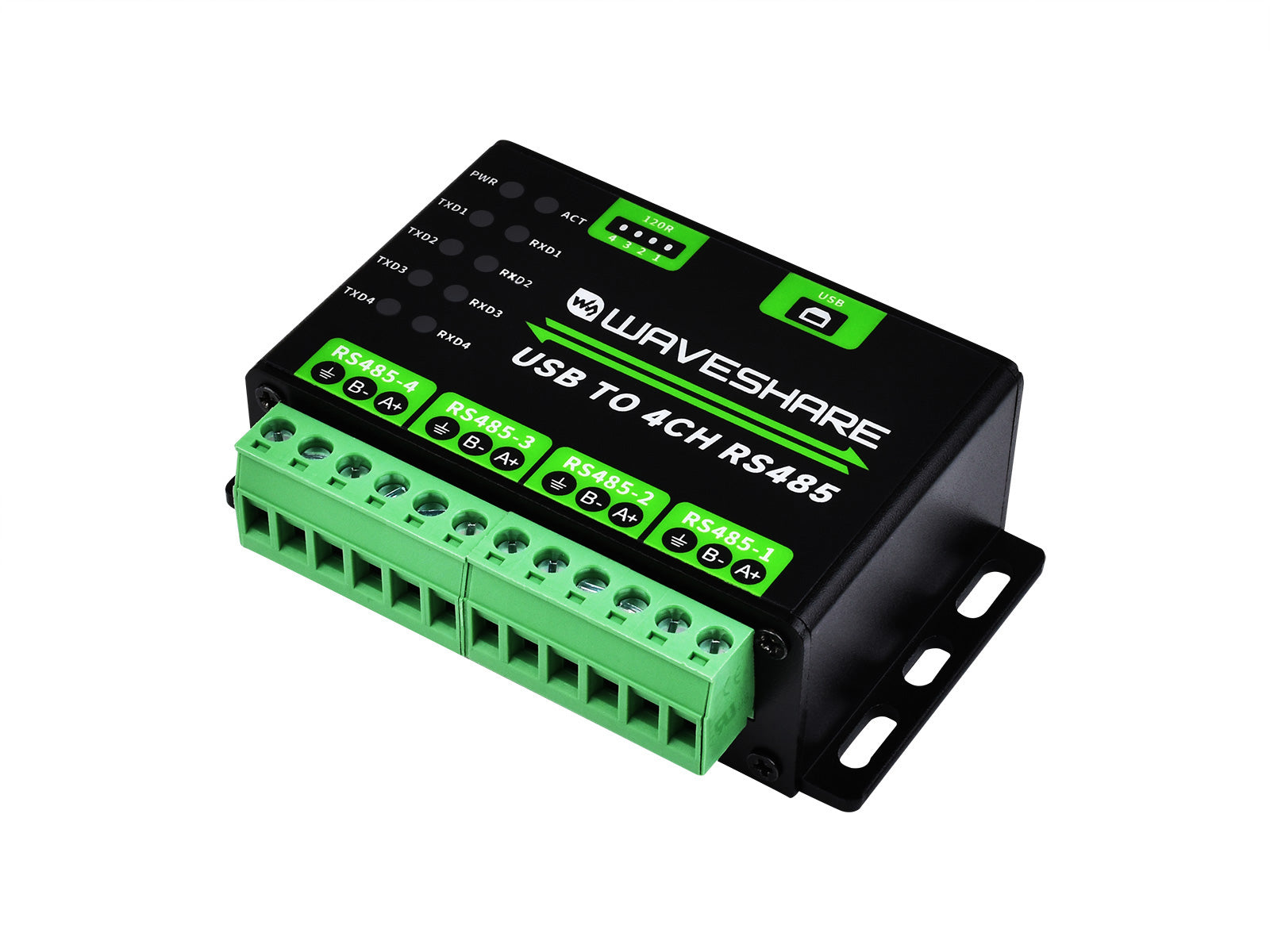

USB TO 4CH RS485 Adapter (25219)
USB TO 4CH RS485 Adapter (25219)
SKU: 2678
Out of stock
Couldn't load pickup availability
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description
Details
Industrial USB TO 4CH RS485 Converter, Multi-Layer Protection, Multi-System Support, Aluminum Alloy Enclosure, Supports Wall-Mount & Rail-Mount
Industrial USB TO 4CH RS485 Communication Module
Features At A Glance
- USB extend to 4CH RS485, allows simultaneous and independent communication for each channel
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures stable current/voltage output, provides over-current/over-voltage protection, improves shock resistance performance

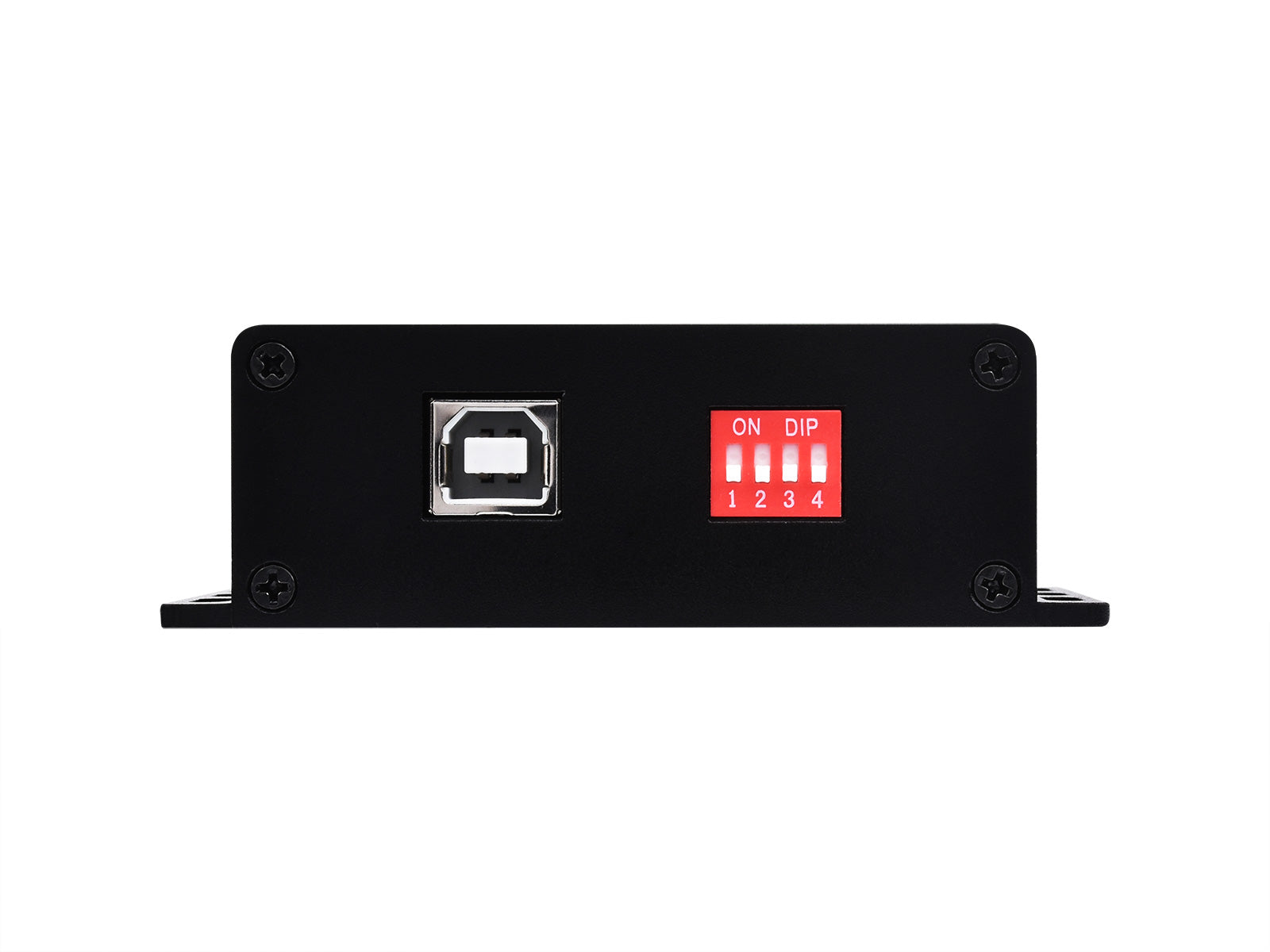

- Onboard 120R termination resistors for RS485, enabled/disabled via DIP switch
- Aluminum alloy enclosure with sandblasting and anodic oxidation surface, solid and durable, well-made
Specifications
| PRODUCT TYPE | Industrial USB to RS485 converter | |
|---|---|---|
| HOST PORT | USB | |
| DEVICE PORT | RS485 | |
| BAUDRATE | 1200bps ~ 460800bps | |
| USB | Operating Voltage | 5V |
| Connector | USB-B | |
| Protection | 500mA resettable fuse, ESD protection | |
| Transmission Distance | About 5m | |
| RS485 | Connector | Screw terminal |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection | |
| Transmission Distance | About 1200m Max (at low rate with 120R resistor enabled) | |
| Transmission Mode | Point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| OPERATING ENVIRONMENT | Temperature | -40 ~ 85℃ |
| Humidity | 5%RH ~ 95%RH | |
| OPERATING SYSTEM | Win7/8/8.1/10/11, Mac, Linux, Android | |
Multi-Layer Protection, Safe And Stable Operation
Onboard resettable fuse and protection diodes, provides over-current/over-voltage protection, improves shock resistance performance; built-in transient voltage suppressor and ESD protection circuit, safe and stable communication
Multi-System Support
Supports Win7/8/8.1/10/11, Mac, Linux, Android, etc.
1.2km Long Distance Transmission
USB signal can be converted into 4 balanced differential RS485 signals and the transmission rate is stable. Reliable rate of 1200~460800bps, transmission distance of about 1.2km for RS485 and about 5 meters for USB.
Supports Wall-Mount & Rail-Mount

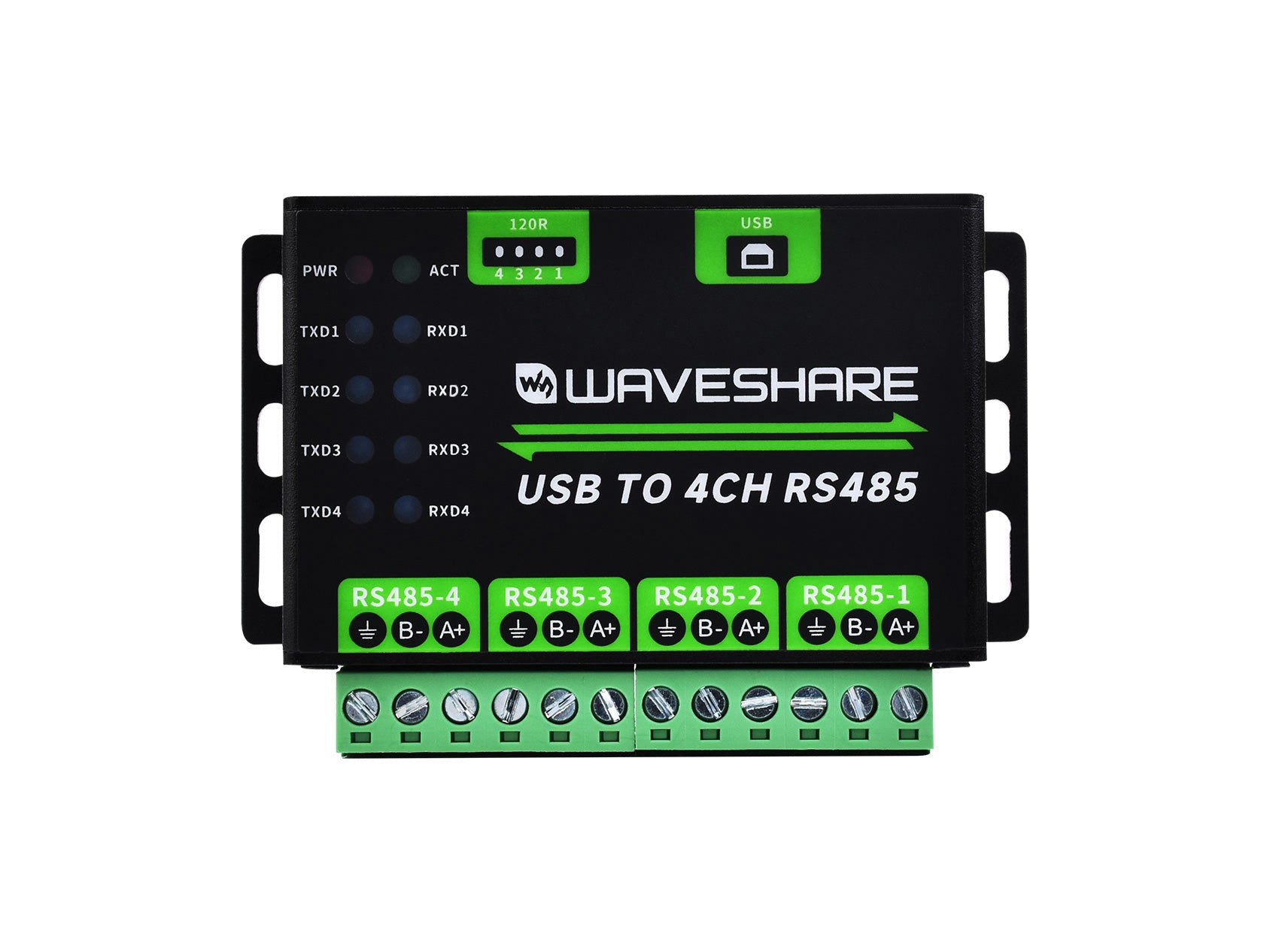

Interface Introduction
Indicator Description
| PWR | Power indicator, glows when USB is connected and voltage is detected |
|---|---|
| ACT | Status indicator, glows green when driver is detected |
| RXD(1~4) | RXD blue indicators, glows when device ports are transmitting data (corresponding to 4 channels respectively) |
| TXD(1~4) | TXD blue indicators, glows when USB port is transmitting data (corresponding to 4 channels respectively) |

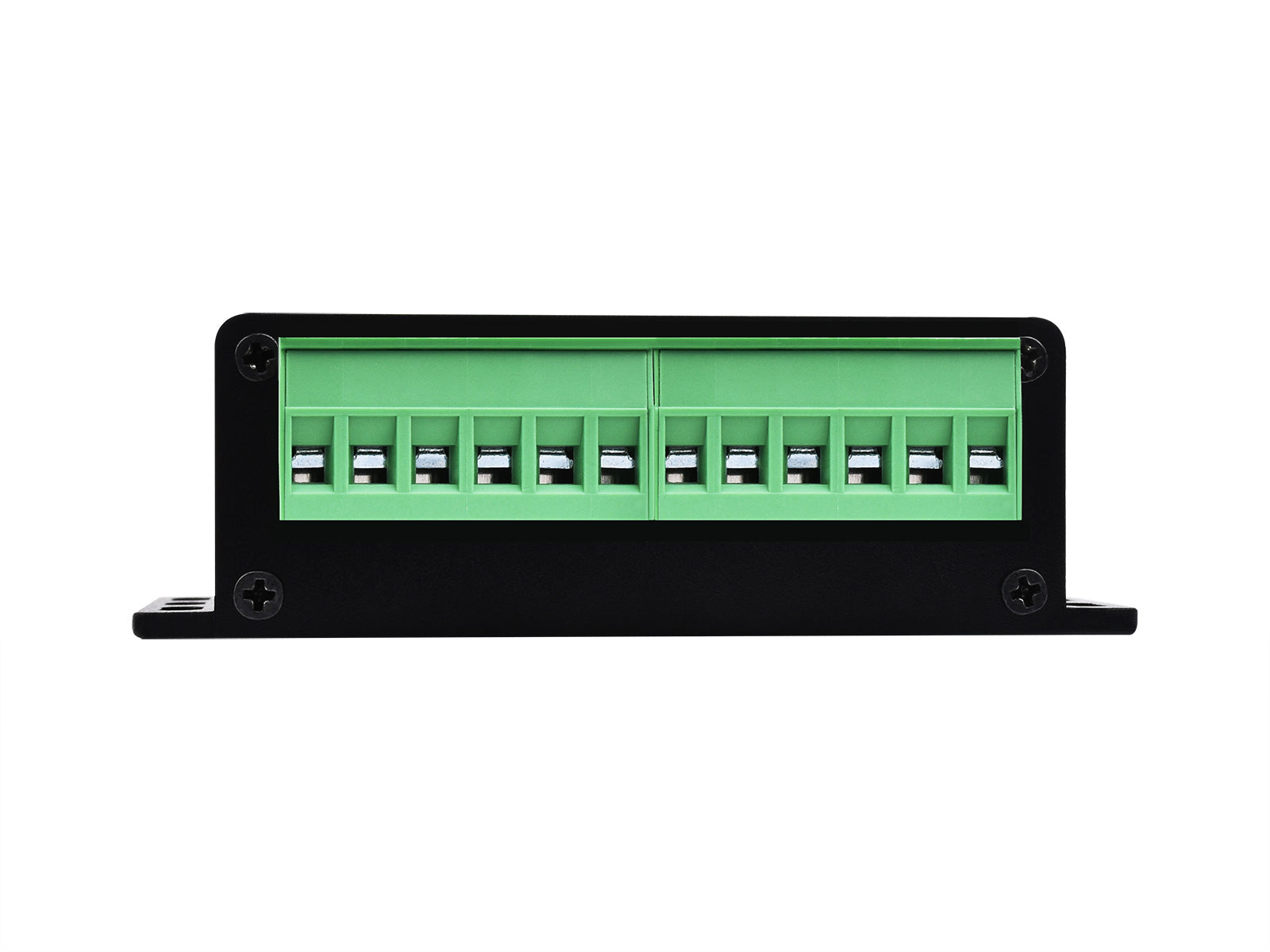

Pinout Definition
| PE | Signal ground |
|---|---|
| A(1~4) | A(1~4) differential signal A+ |
| B(1~4) | B(1~4) differential signal B- |

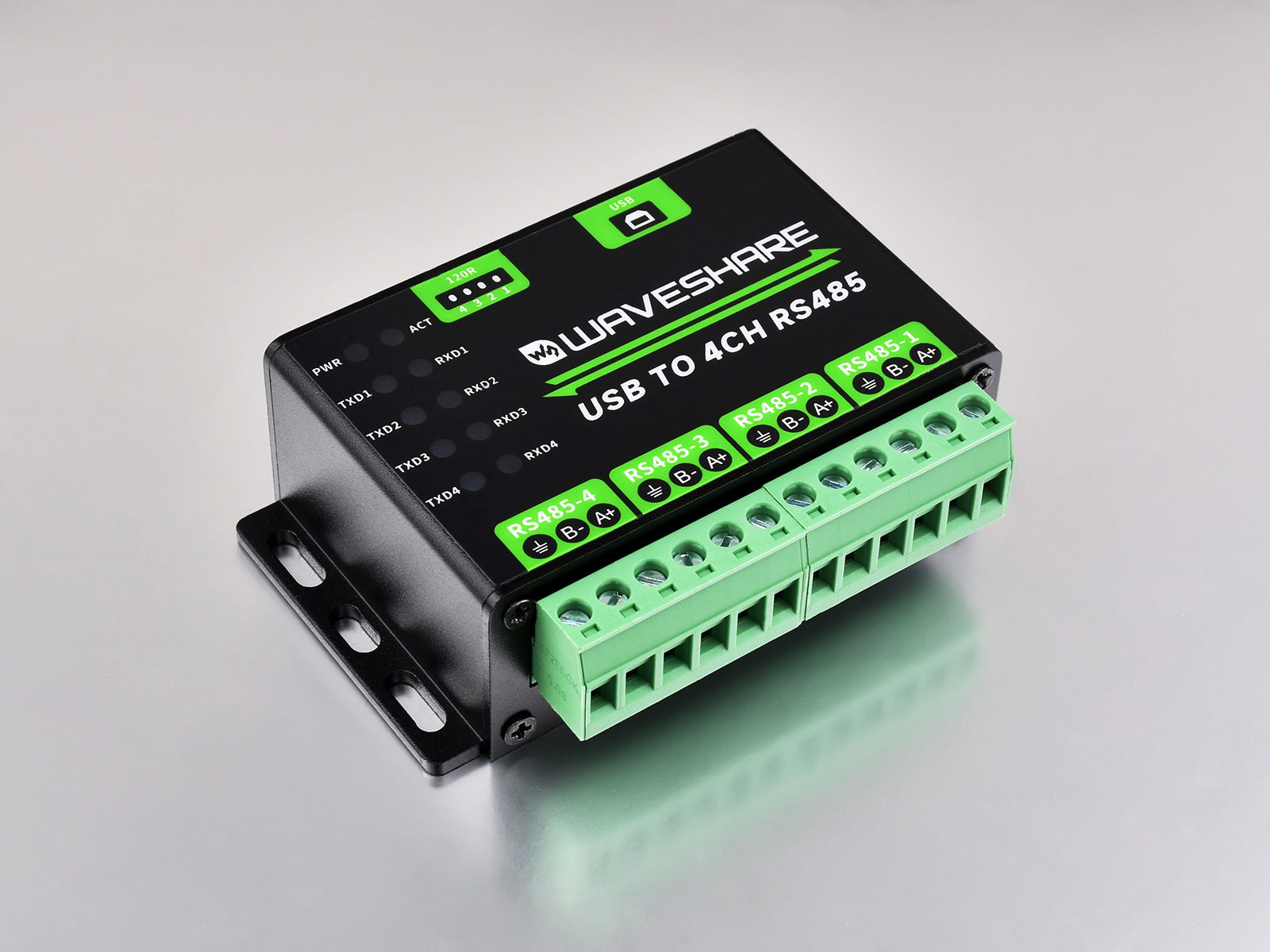

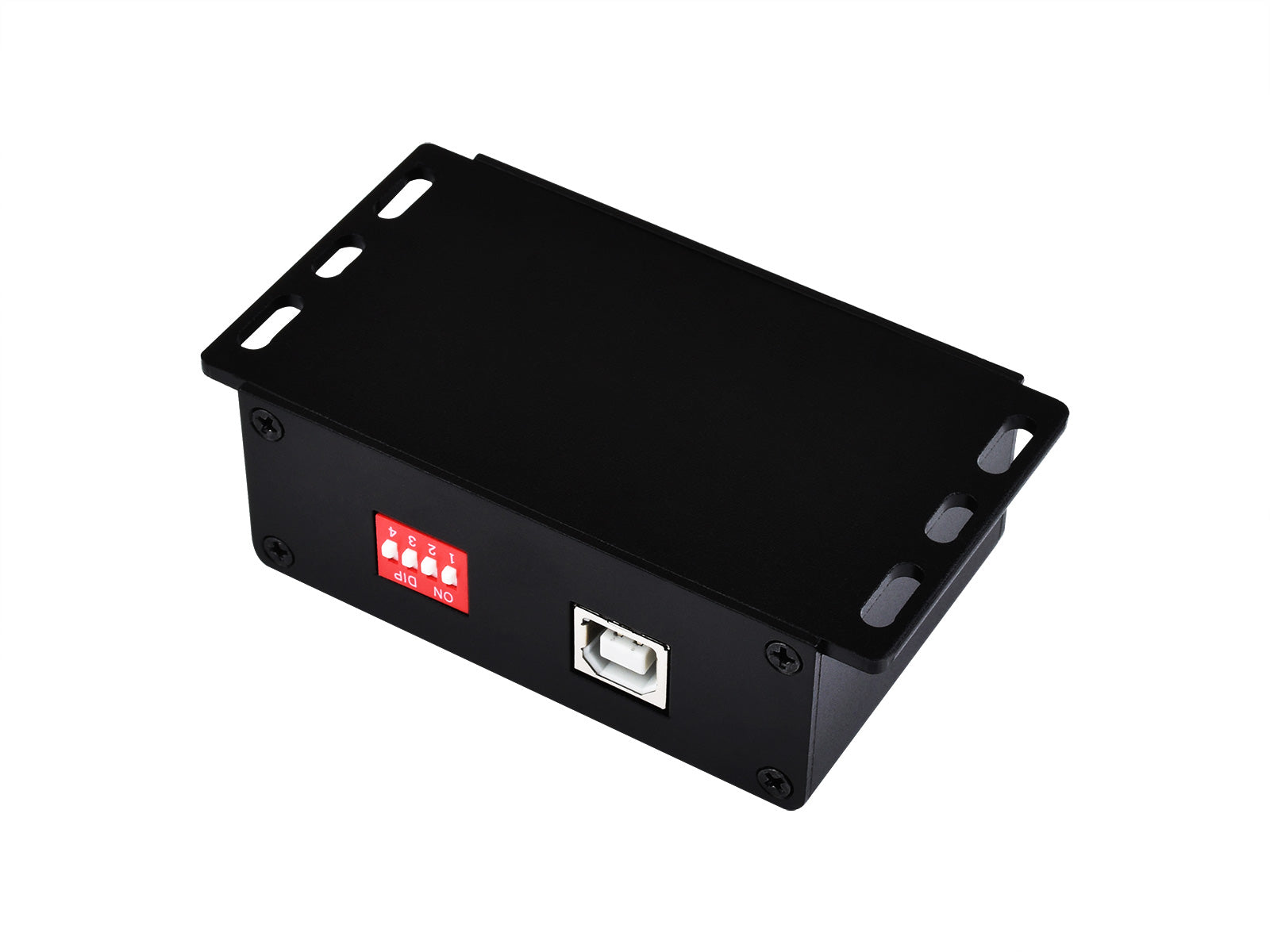

Product Display
Dimensions
Resources & Services
WIKI: www.waveshare.com/wiki/USB_TO_4CH_RS485
* Resources for different product versions may vary, please check the wiki page to confirm the actually provided resources.
