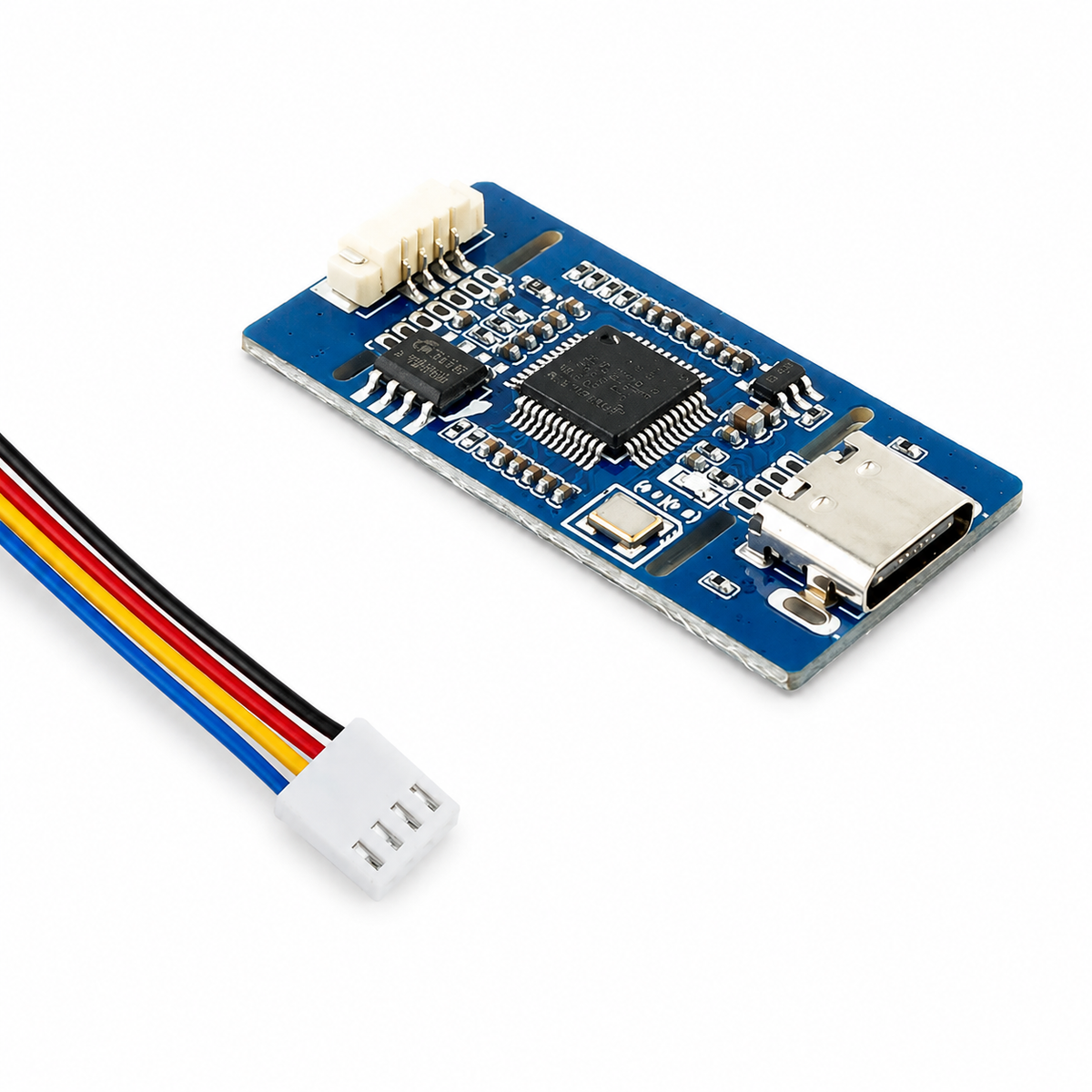

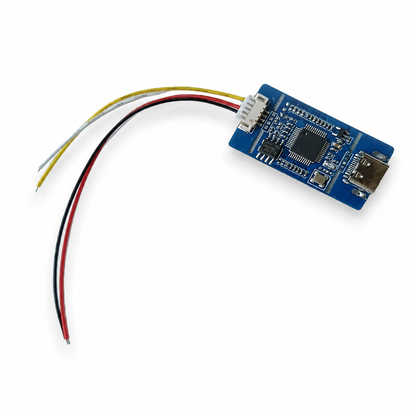

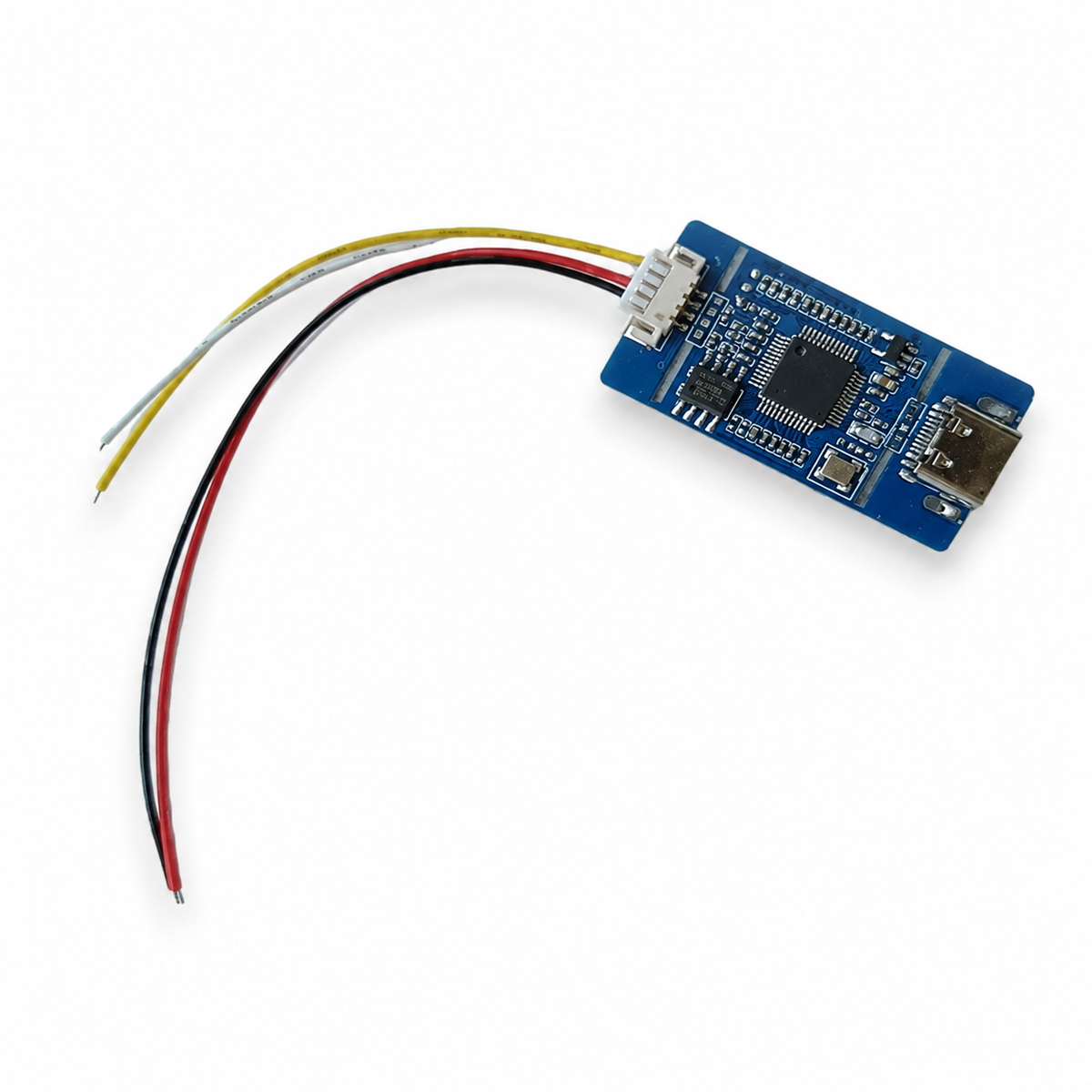

AV CVBS to USB Type-C Video Capture Adapter KENVS AV2T, 1080P

KENVS AV2T video capture board digitizes an analog video signal (AV/CVBS/S-VIDEO) into a digital stream via USB Type-C with a resolution of up to 1080P at 30 frames/s — significantly higher than cheap alternatives, which are usually limited to 640×480.

Works via the UVC/UAC protocol in Plug and Play mode, is powered by the smartphone or laptop itself, and can pass 5 V power further to an analog camera — a convenient solution for connecting drone video receivers directly to a smartphone or tablet.

Advantages:

• High resolution: up to 1920×1080 (1080P, 30 fps).
• Plug and Play — no drivers required, supports Android (via USB Camera), Windows, Linux, macOS.
• Host-powered: can supply 5 V to a connected analog camera.
• Compact size for mobile use.

Specifications:

• Type: video converter
• Resolution: 1920×1080/30 fps, 1280×720/60 fps, 800×600, 720×576, 720×480, 640×480, 480×320, 320×240
• Output format: MJPEG, YUV422
• Input signal: analog AV / CVBS / S-VIDEO (PAL, NTSC)
• Audio output: stereo 48 kHz
• Protocol: UVC / UAC
• Input connector: 1.25 mm pin header, 4 pins
• Output connector: USB Type-C (socket)
• Power: 5 V, power consumption less than 3 W
• Size: 38.7 × 20 × 8 mm
• Color: blue

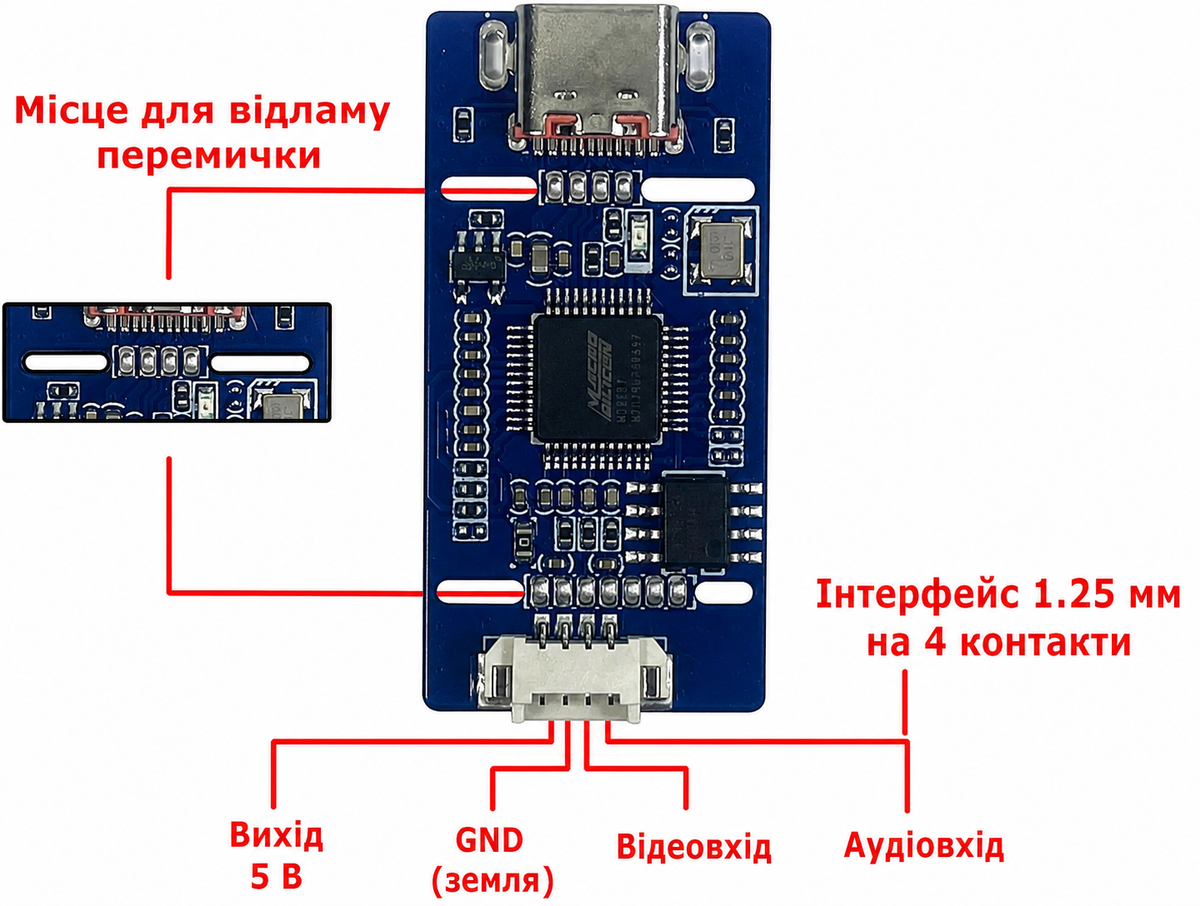

Input pinout:

• Red: +5 V (power for the camera, if needed)
• Black: "−" (common / ground)
• White: audio input
• Yellow: video input

Package contents:

• KENVS AV2T video capture board — 1 pc.
• 4-pin contact header — 1 pc.

Important: USB Type-C cable is not included. For a smartphone, a Type-C — Type-C cable is required; for a PC, a Type-C — USB-A cable.
