Description

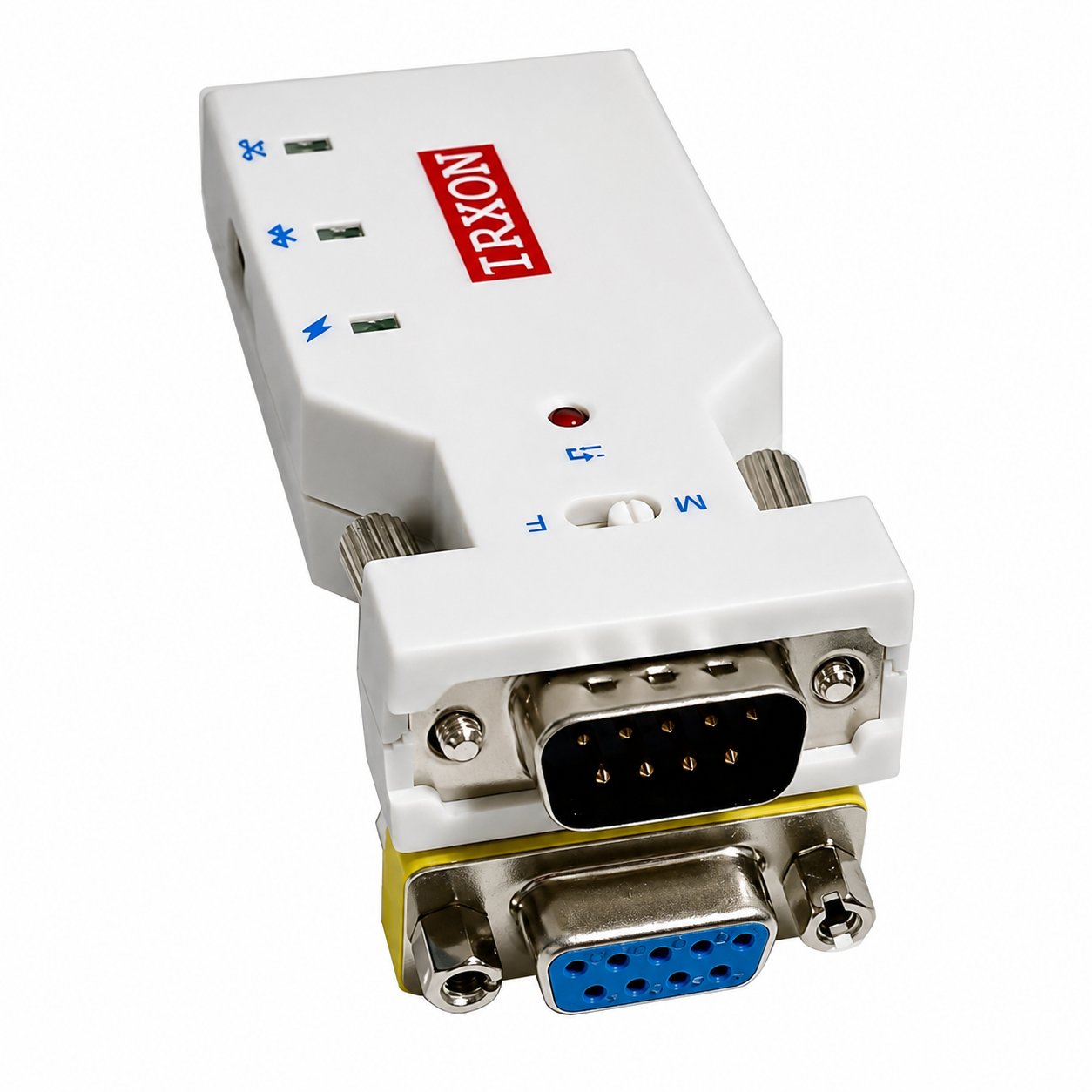

BT578 V3 RS232 Bluetooth adapter (wireless Serial converter)
BT578 V3 is a modern Bluetooth adapter that allows you to replace a standard RS232 cable with a convenient wireless connection.
It provides stable data transmission between RS232 devices and a computer, smartphone, or tablet.
Main advantages
- Wireless RS232 connection — cable-free operation via Bluetooth
- Bluetooth 3.0 (SPP) + 4.2 (BLE) — broad compatibility
- Flexible speed settings: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps
- Range up to 30 m — stable signal
- Low power consumption — only ~8mA
- Built-in battery with USB Type-C charging
- Compact size — 78 × 34 × 16 mm, 30 g
V3 version updates
- Improved Bluetooth module
- Lower power consumption
- Greater transmission range
- Modern Type-C connector
- Support for high-speed transmission
Areas of use
- Configuration and diagnostics of network equipment (routers, switches)
- Connection of geodetic instruments (total stations, levels)
- PLCs and automation systems
- Electronic scales, printers, medical equipment
- Connection to PCs, Android devices, and tablets
Technical specifications
- Bluetooth: 3.0 (SPP) + 4.2 (BLE)
- Transmit power: 5 dBm
- Receive sensitivity: -95 dBm
- Range: up to 30 m
- Operating temperature: -10°C to +55°C
- Power supply: built-in battery (Type-C)
- BLE UUID: 0000ffe1-0000-1000-8000-00805f9b34fb
Why buy?
- Complete replacement of RS232 cable
- Convenient wireless operation
- Suitable for professional use
- Easy integration into existing systems
Important to know
- Changing the baud rate may require configuration via AT commands
- Some functions are available via Android or Windows
- Recommended for users with basic technical knowledge
Part number:
45699
