HDMI 4K Switcher 3 in => 1 out, (23120)
HDMI 4K Switcher 3 in => 1 out, (23120)
SKU: 1590
In stock
Couldn't load pickup availability
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description

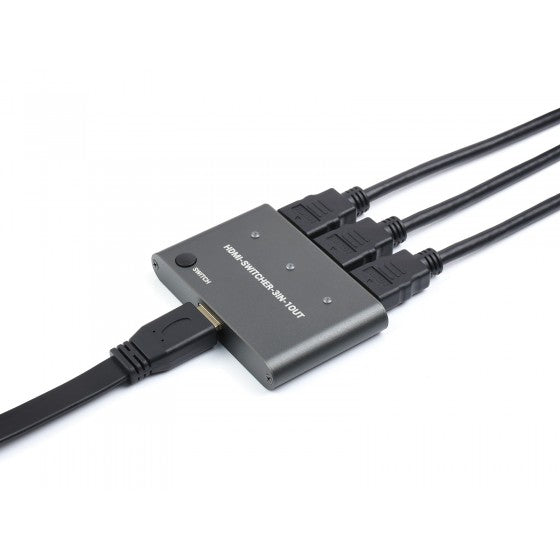

HDMI Switch 3 In / 1 Out
Allows multiple devices to share one HDMI display – high resolution and smooth image.
Specifications
| Input Interface | HDMI × 3 |
|---|---|
| Supports 4K/2K@30Hz and 4K/2K (YCbCr420)@60Hz resolutions | |
| Built-in input equalizer — automatic input signal adjustment | |
| Output Interface | HDMI × 1 |
| Built-in output signal regulator — automatic amplitude adjustment | |
| Interface Standard | HDMI 1.4b and DVI 1.0 |
| Transmission Speed | Up to 3 Gbps |
One-Press Switching — Convenient and Fast
Simply press the switch button — the device will sequentially switch between detected signals.
Wide Device Support
Allows connecting multiple input devices to one HDMI screen, including:
- Raspberry Pi
- Personal Computer (PC)
- Smartphone
- Other HDMI-compatible devices
* A special cable and smartphone OS support are required for use with a smartphone.
4K Resolution Support
- 4K/2K@30Hz and 4K/2K (YCbCr420)@60Hz
- Sharper and smoother image
- Lag-free audio
High Transmission Speed — No Delays
- Built-in automatic input and output signal adjustment function
- Compatibility with various cables without additional settings
- Data transfer speed — up to 3 Gbps
No Power Required — Plug and Play
No additional power source is needed. Simply connect the HDMI cable and the device is ready to use.
Compact and Portable Design
About the size of a credit card — easy to carry, takes up minimal space.
Dimensions
Resources and Support
Wiki page: www.waveshare.com/wiki/HDMI-SWITCHER-3IN-1OUT
* Resources may vary depending on the specific product. Please check the wiki page for the current list of materials.
Package Contents
- HDMI-SWITCHER-3IN-1OUT × 1
