HDMI 4K Splitter, 1 In => 4 Out (23738)
HDMI 4K Splitter, 1 In => 4 Out (23738)
SKU: 1118
In stock
Couldn't load pickup availability
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description
HDMI Splitter 4K — 1 Input / 4 Outputs
Allows you to connect up to four displays simultaneously from a single HDMI source — crisp image and smooth transmission without delays.
Key Features
- Data transfer rate up to 3 Gbps
- Compatible with HDMI 1.4B and DVI 1.0 standards
- Supports 4K/2K@30 Hz and 4K/2K (YCbCr420)@60 Hz resolution
- Supports 10/12/16 bit color depth
- Built-in input equalizer — automatic adjustment of input signal for higher TMDS quality
- Built-in output driver — automatic adjustment of output signal amplitude for higher TMDS quality
4K Resolution Support
Supports 4K/2K@30 Hz and 4K/2K (YCbCr420)@60 Hz — clearer and smoother image with no audio delay.
High-Speed Transmission — No Lag
Built-in automatic input and output adjustment ensures stable transmission with various cables. Data transfer rate — up to 3 Gbps.
Applications

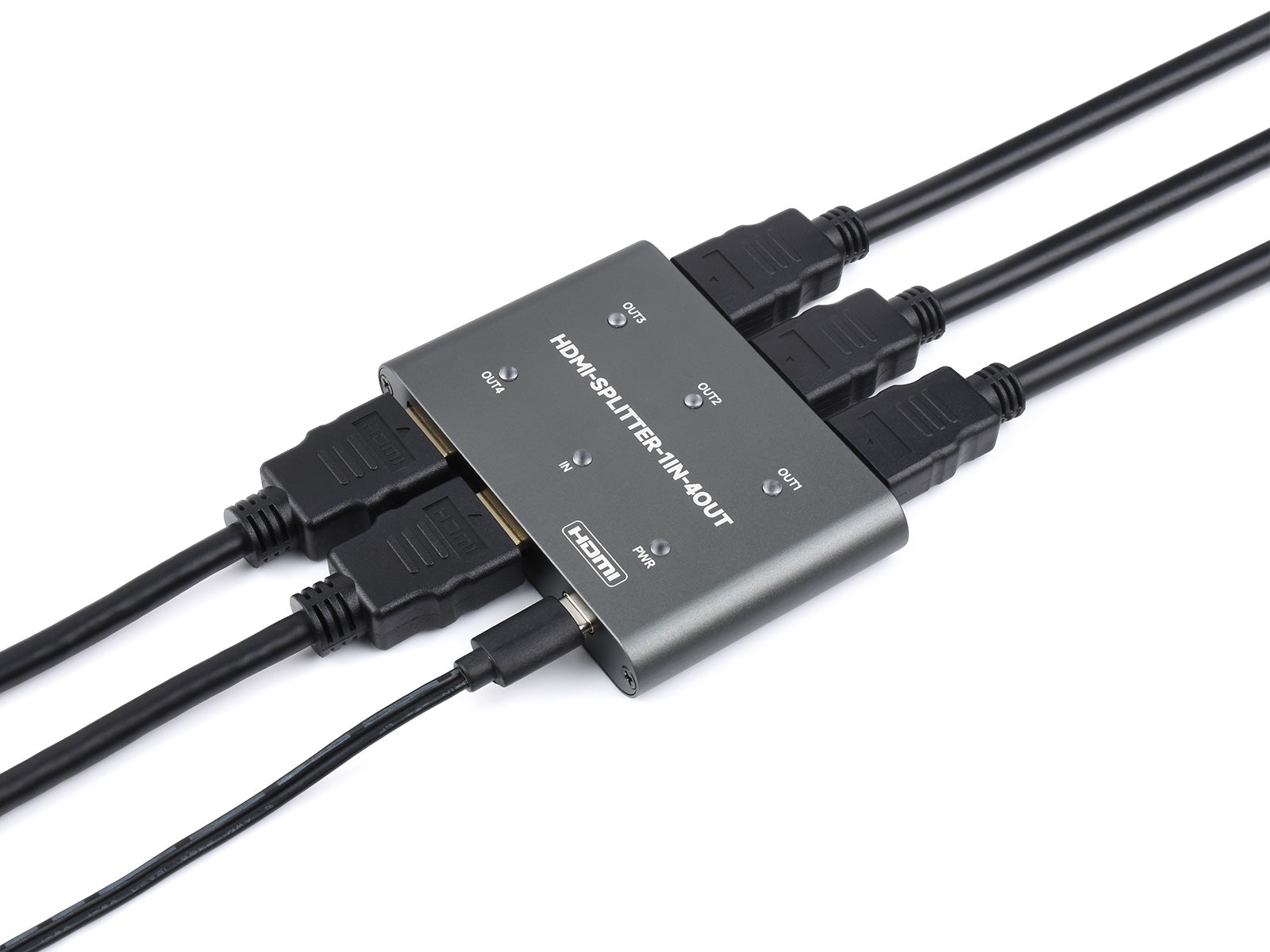

Displaying a single HDMI signal on multiple screens simultaneously — ideal for live streaming, screen recording, presentations, and digital signage.

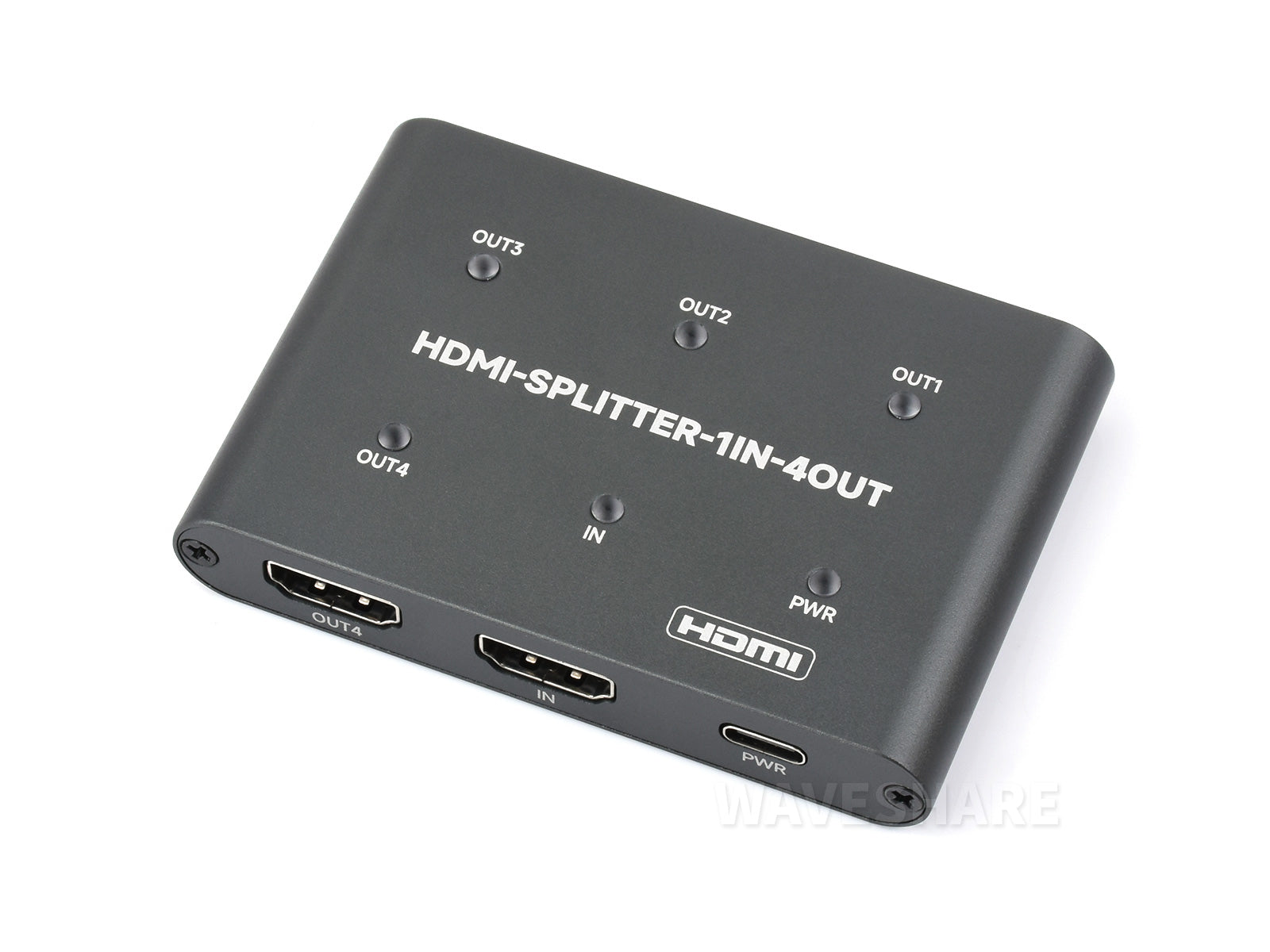

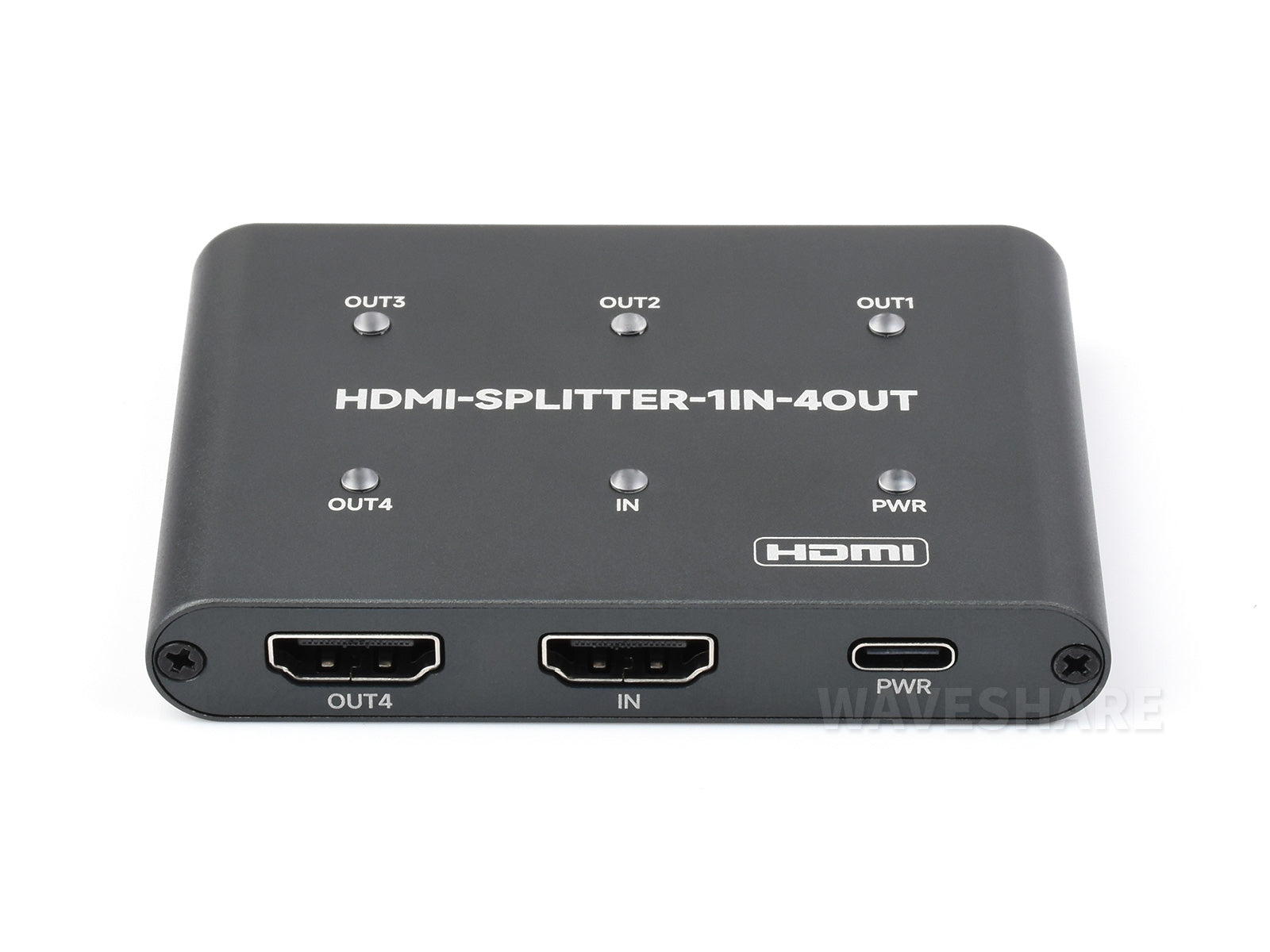

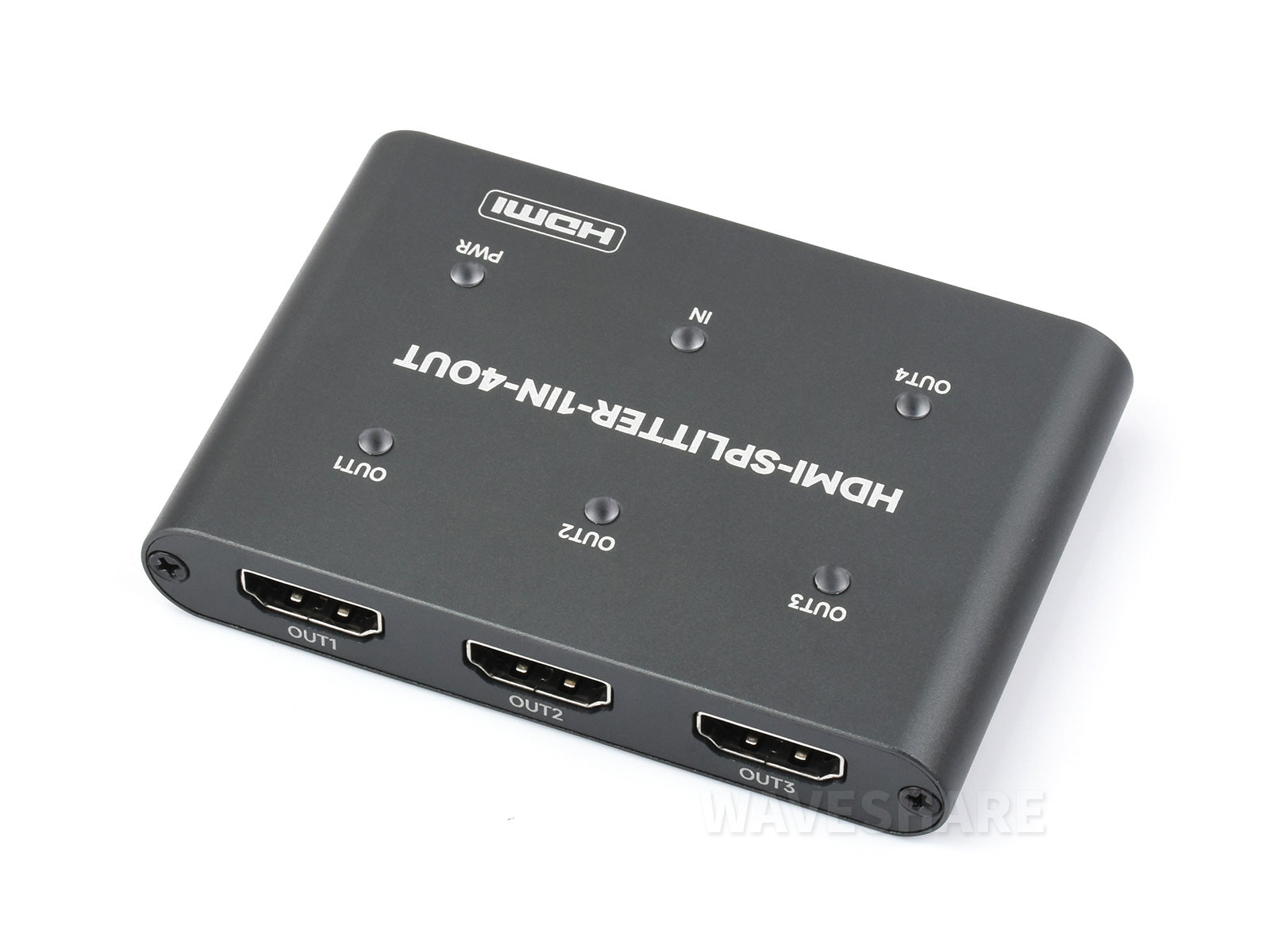

Interface Description
1 input and 4 output HDMI ports, powered via Type-C connector (5V / 1A).
LED Indicators
Indicate the operating status of each port — convenient visual control of connections.
Compact and Portable
Almost the size of a credit card — convenient to carry, takes up minimal space.

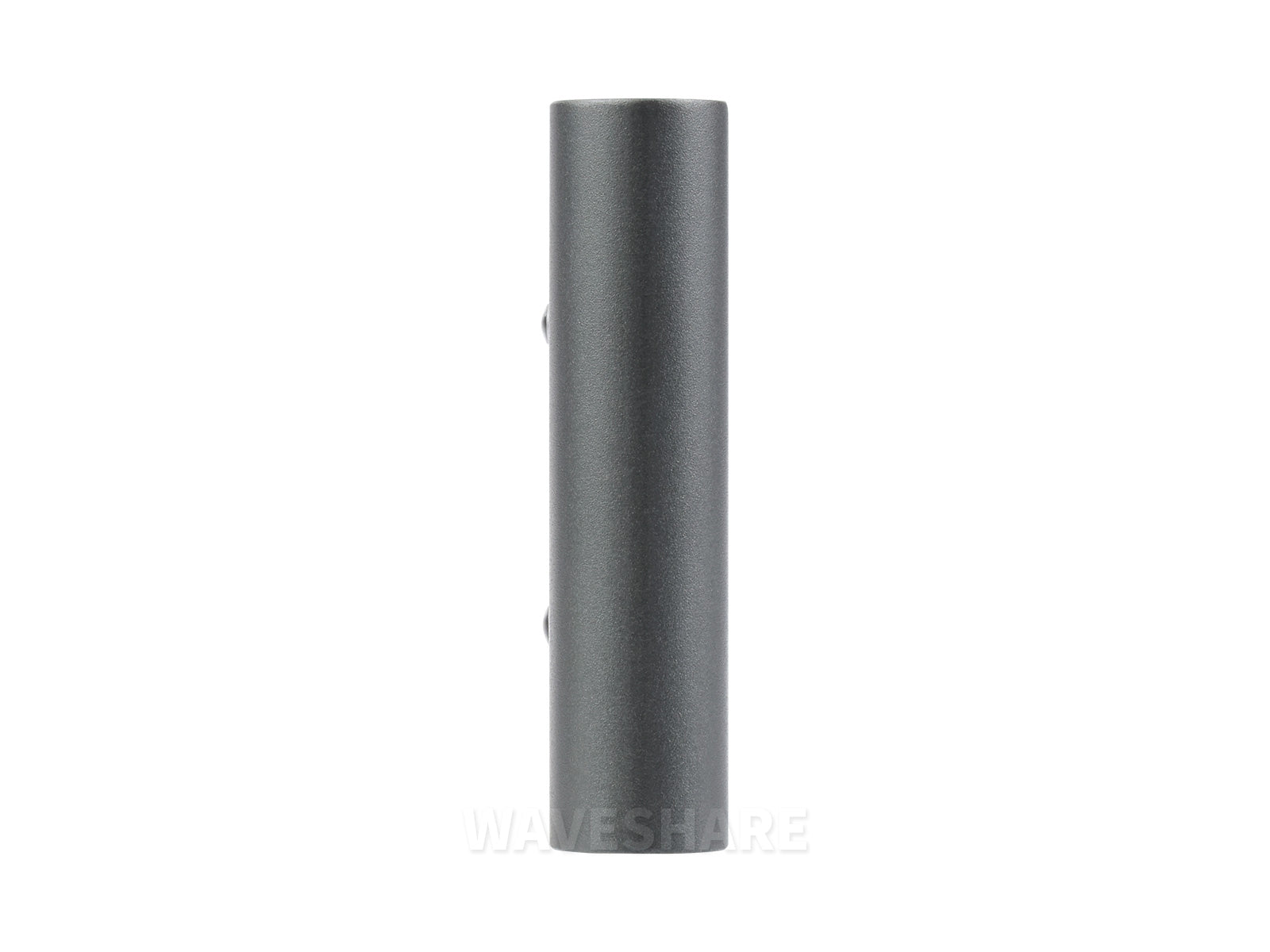

Device Appearance
Dimensions
Resources and Support
Wiki page: www.waveshare.com/wiki/HDMI-SPLITTER-1IN-4OUT
* Available resources may vary depending on the product version. Please check the current list on the wiki page.
