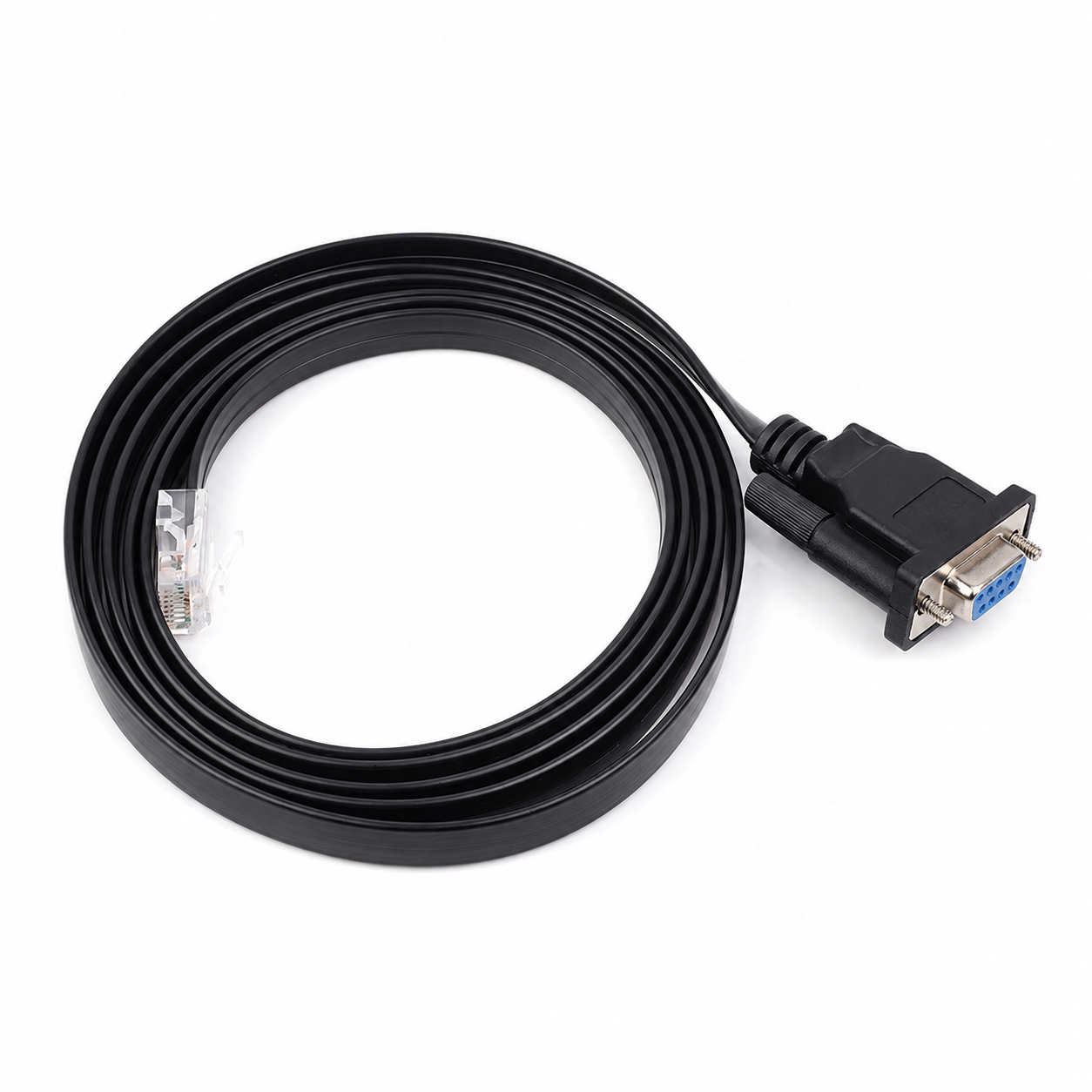

RS232 → RJ45 Console Cable

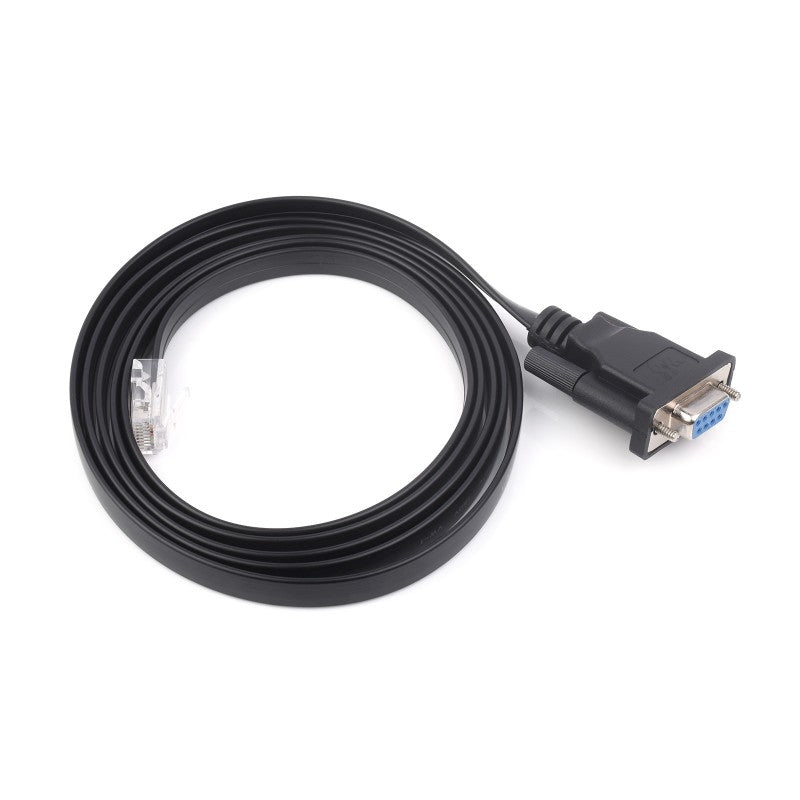

Console communication cable with high purity oxygen-free copper conductor. Suitable for routers, switches and other Cisco and similar brand devices with RJ45 console port.
Key benefits
Technical specifications
Scope of application

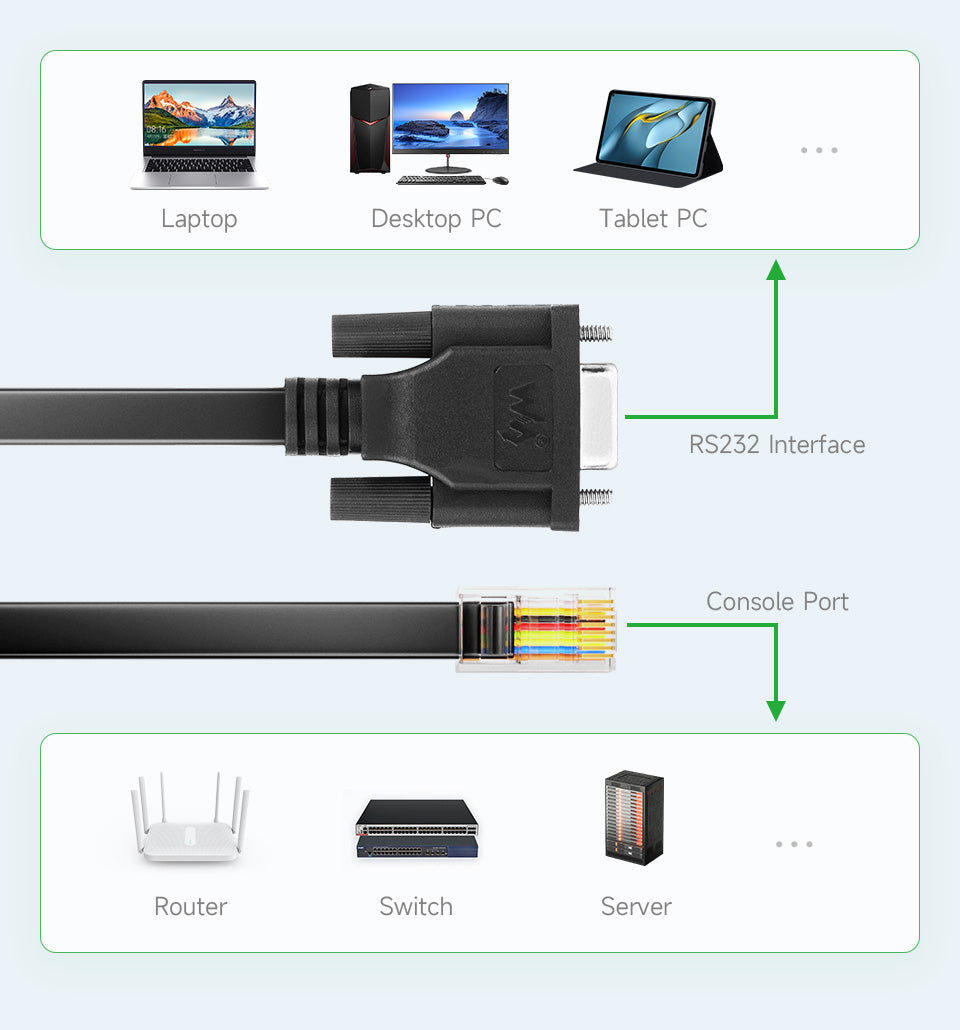

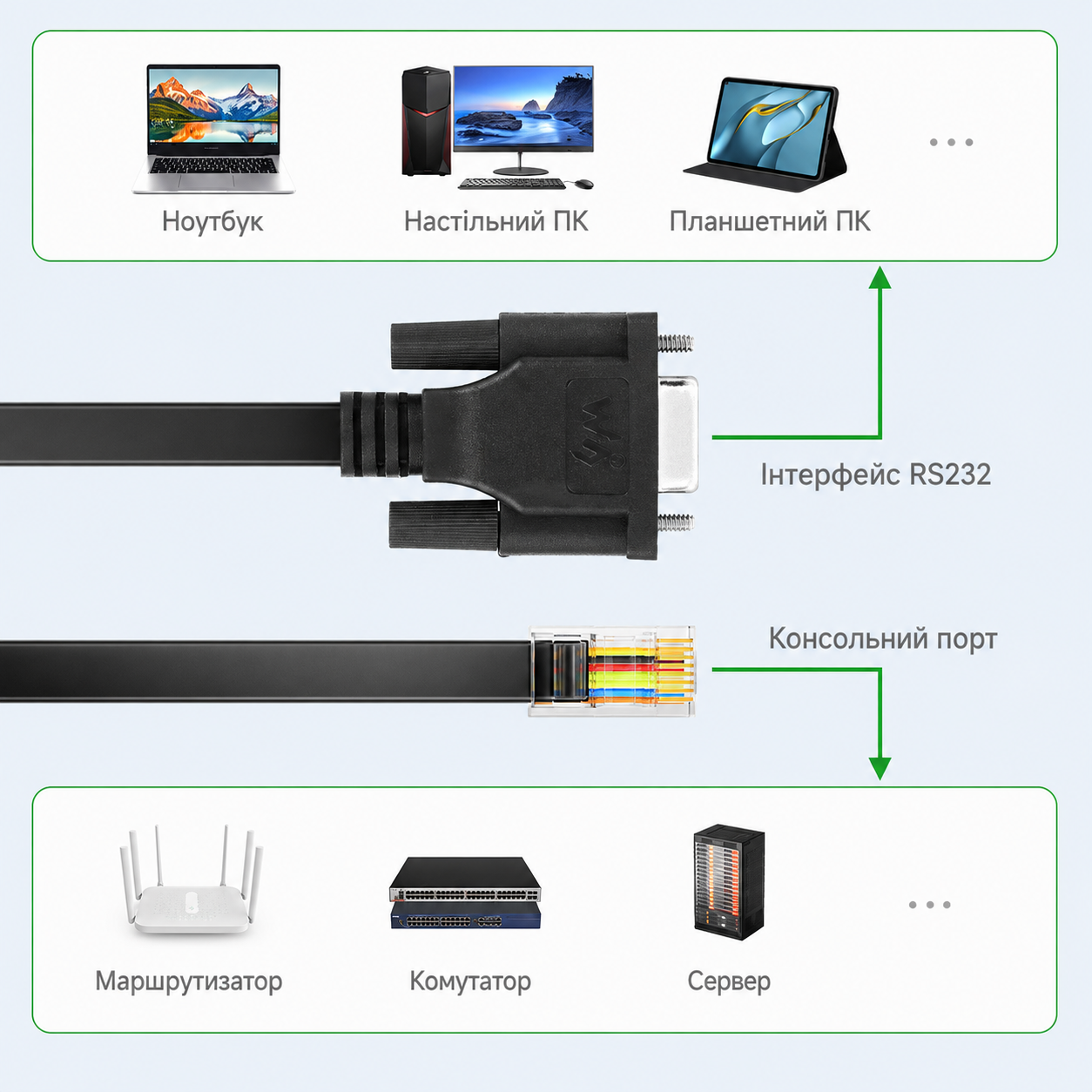

The cable is designed to connect devices from the host side :
- Desktop PC
- Laptops
- Tablet PC
- Any devices with RS232 interface
to network devices with an RJ45 console port :
- Routers — including Cisco, Juniper, etc.
- Switches
- Servers
- Industrial equipment and technological machines
Used for debugging, configuration, and communication via the console port.
Detailed description of the design
Uses high-quality nickel-plated connector — resistant to corrosion, temperature extremes, and oxidation. Provides stable data transmission and increased durability. Connector body dimensions: 34.0 × 44.5 mm .

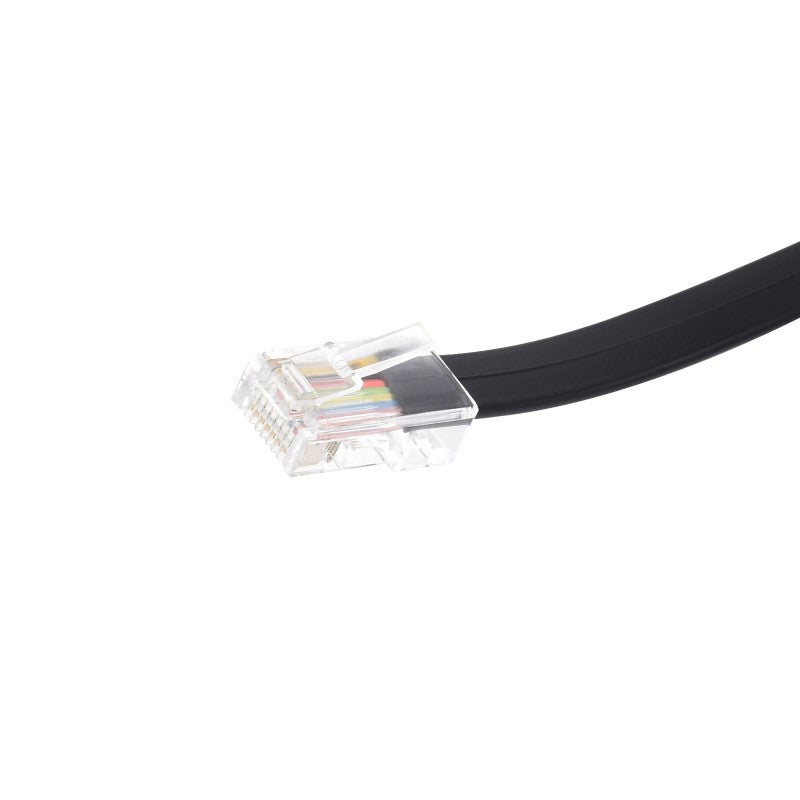

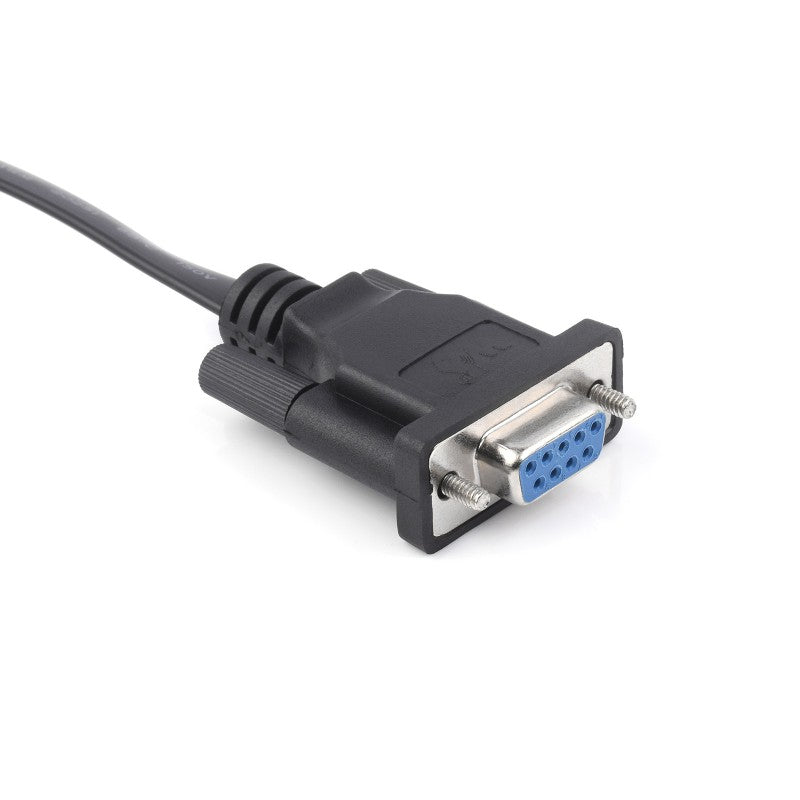

Gold-plated contacts , strong spring-loaded locking latch. Reliable and durable connector. Housing width: 15.2 mm .

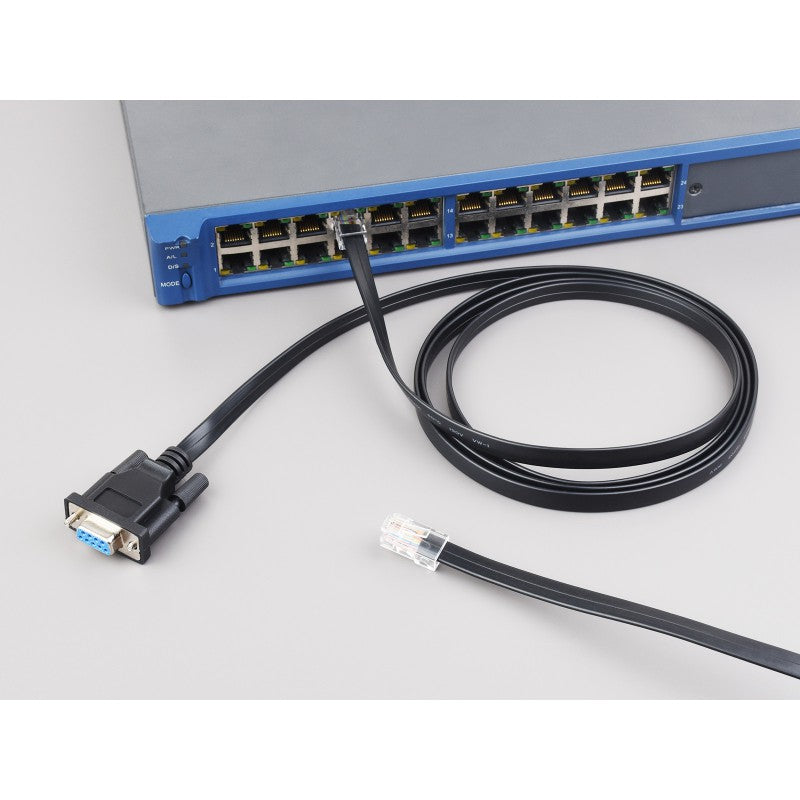

Flat cable design – tangle-free, easy to run along walls, floors, or in server rack cable channels. Ideal for neat installation.

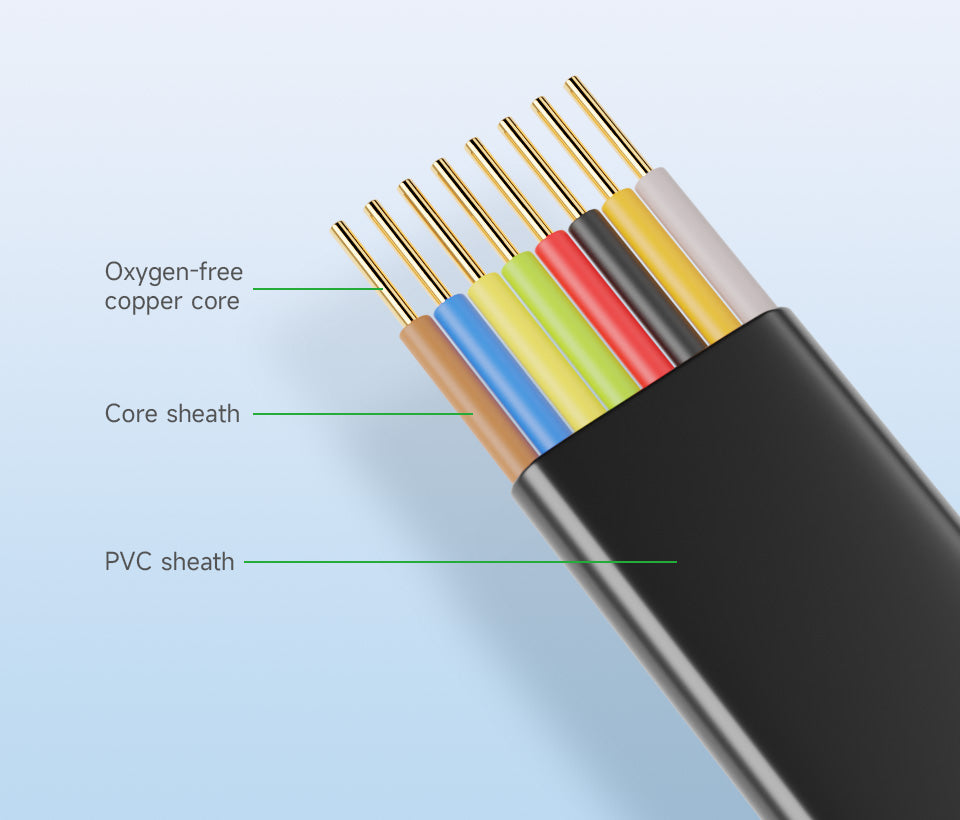

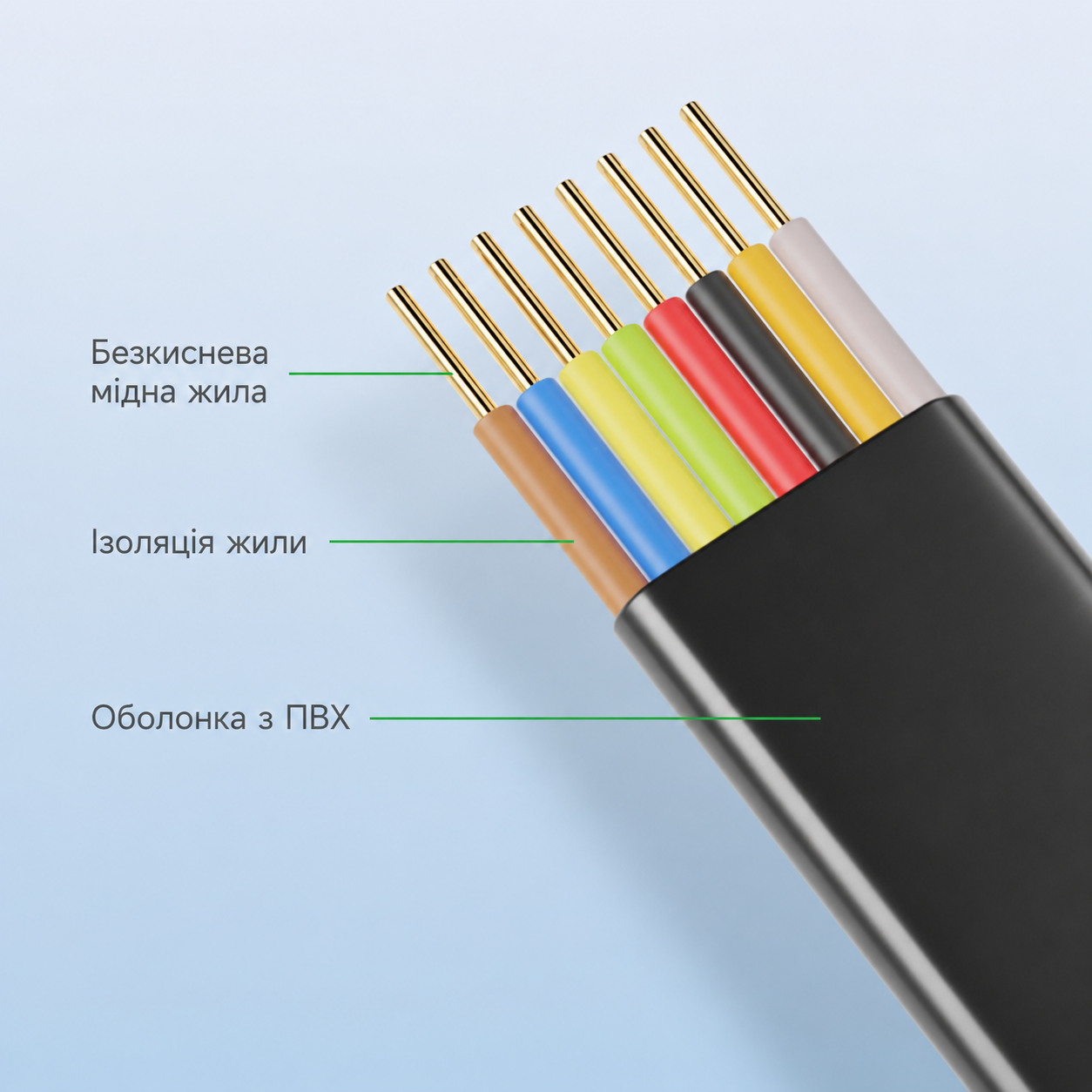

The cable consists of three layers:
- Oxygen-free copper core — thick, provides excellent conductivity and minimal signal loss
- Core sheath — insulates and protects each conductor
- PVC sheath — an outer protective layer resistant to mechanical damage
* Note: The image is for reference only, the actual internal structure may differ.
Interface Definition
RS232 DB9 Female — Pinout
| PIN | Description | Name |
|---|---|---|
| 1 | Data carrier detect / Carrier detection | DCD |
| 2 | Sending data | TXD |
| 3 | Receiving data | RXD |
| 4 | Data set ready / Device ready | DSR |
| 5 | Ground | GND |
| 6 | Data terminal ready / Terminal ready | DTR |
| 7 | Clear to send / Send permission | CTS |
| 8 | Request to send / Request to send | RTS |
| 9 | Ring indicator | RI |
RJ45 Console Male — Pinout
| PIN | Description | Name |
|---|---|---|
| 1 | Clear to send / Send permission | CTS |
| 2 | Data set ready / Device ready | DSR |
| 3 | Receiving data | RXD |
| 4 | Ground | GND |
| 5 | Data carrier detect / Carrier detection | DCD |
| 6 | Sending data | TXD |
| 7 | Data terminal ready / Terminal ready | DTR |
| 8 | Request to send / Request to send | RTS |
DB9 pin 8 → RJ45 pin 1 | DB9 pin 6 → RJ45 pin 2 | DB9 pin 2 → RJ45 pin 3 | DB9 pin 5 → RJ45 pin 4 | DB9 pin 3 → RJ45 pin 5 | DB9 pin 4 → RJ45 pin 6 | DB9 pin 7 → RJ45 pin 7 | DB9 pin 1 → RJ45 pin 8
Overall dimensions

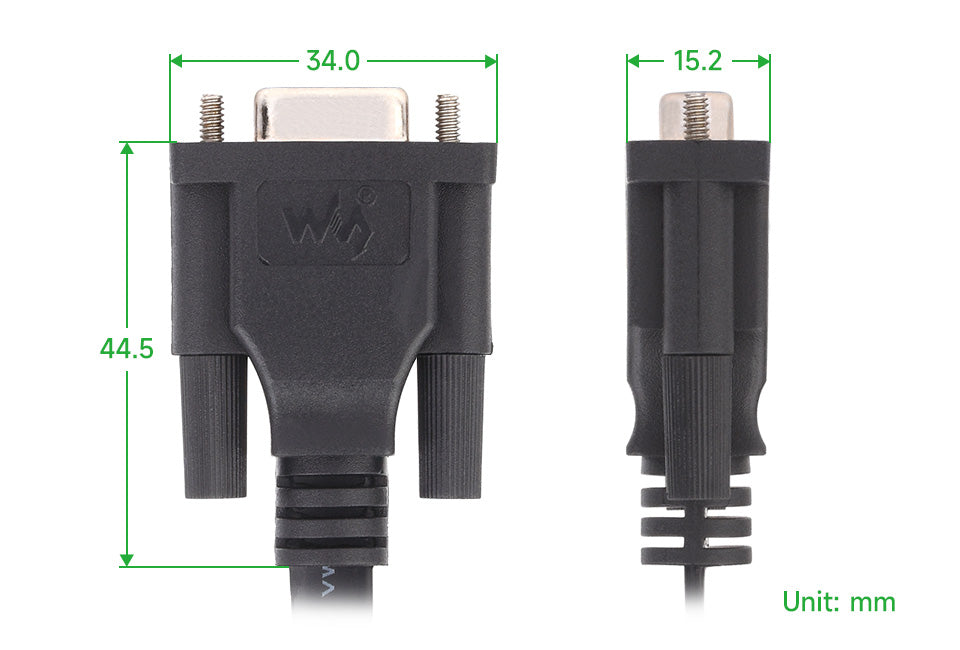

- DB9 connector body: 34.0 × 44.5 mm
- Housing RJ45 connector: width 15.2 mm
- Total cable length: 1800 mm (1.8 m)
* Note: Dimensions are measured manually, an error of about 1 mm is allowed.
Delivery set
- RS232-TO-RJ45-Console-Cable × 1
