Description

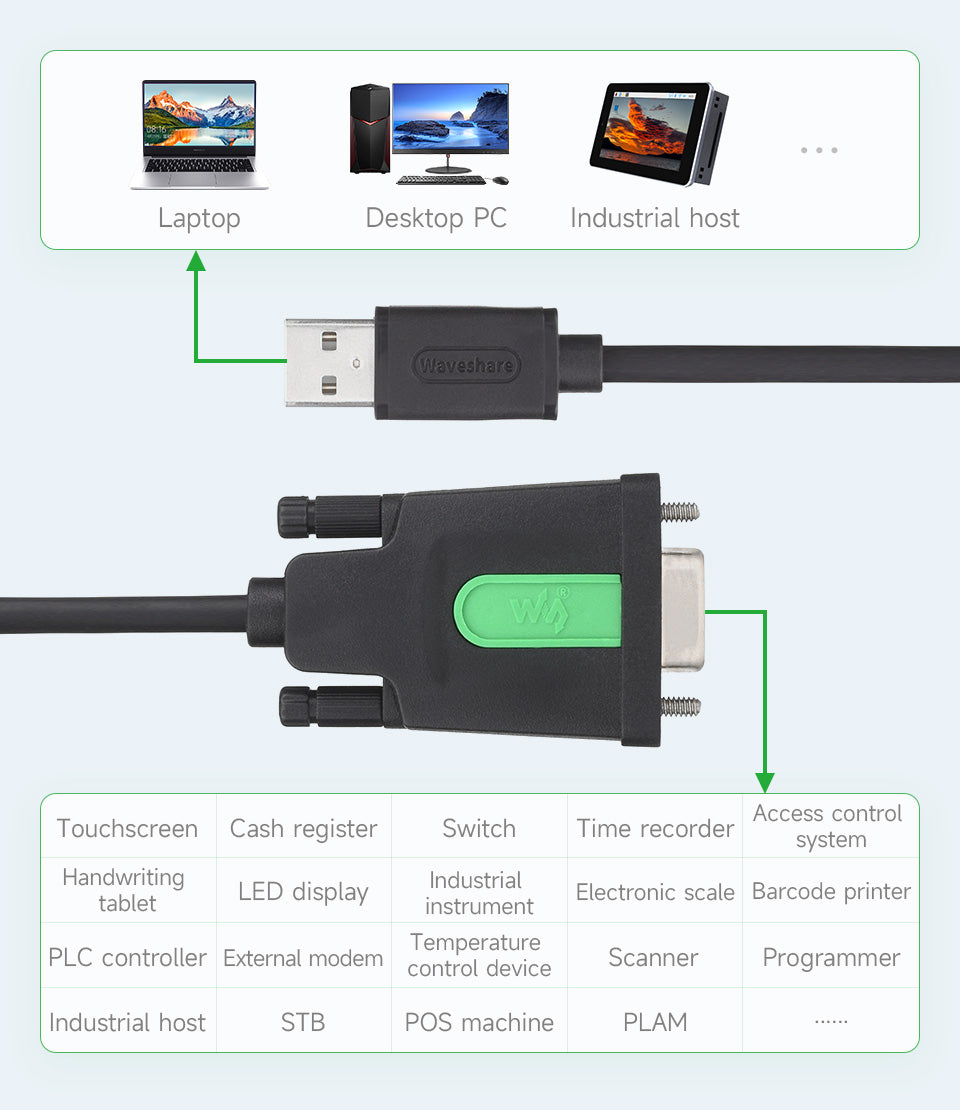

Industrial USB to RS232 adapter cable (Female) with original FTDI FT232RL chip is a reliable professional solution for connecting a computer to devices with a serial RS232 port (DB9). This version has a "female" connector, which allows you to connect directly to equipment with a "male" plug without additional adapters.
✔ Original FTDI chip ✔ DB9 Female connector ✔ Length 1.5 m ✔ Industrial grade protection ✔ Plug & Play ✔ Compatible with Windows/Mac/Linux
Technical specifications
| Parameter | Value |
|---|---|
| Product type | USB → RS232 DB9 adapter cable |
| Converter chip | Original FTDI FT232RL (industrial grade) |
| Host interface | USB Type-A (male) |
| Device interface | RS232 DB9 — mother (Female) |
| Data transfer speed | 300 bps — 921,600 bps |
| Cable length | 1.5 m |
| Cable sheath | PVC, black color |
| Core | Thick oxygen-free copper |
| Screening | Double aluminum foil + braided protective mesh |
| Grounding | Separate shielded ground wire |

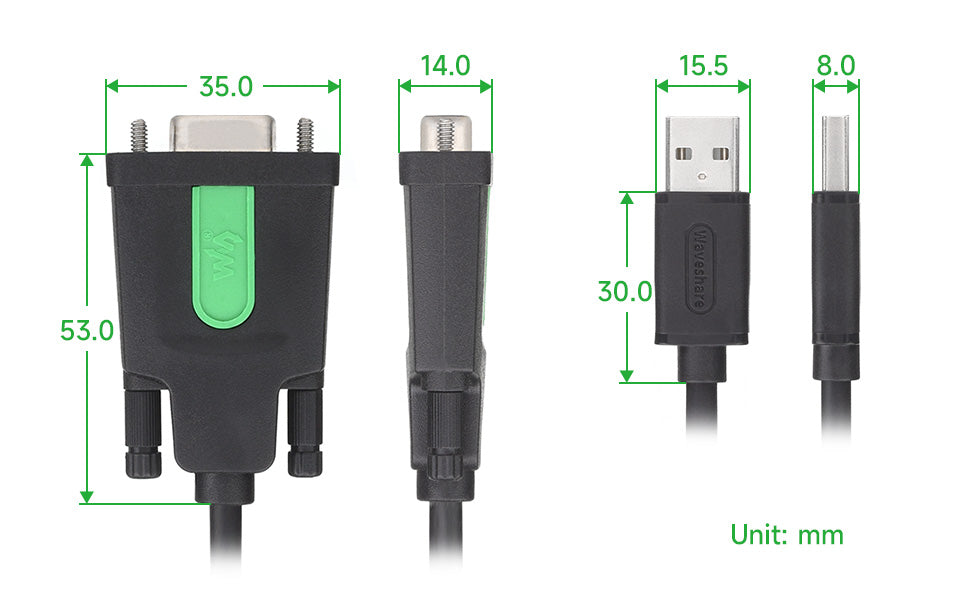

Connector specification

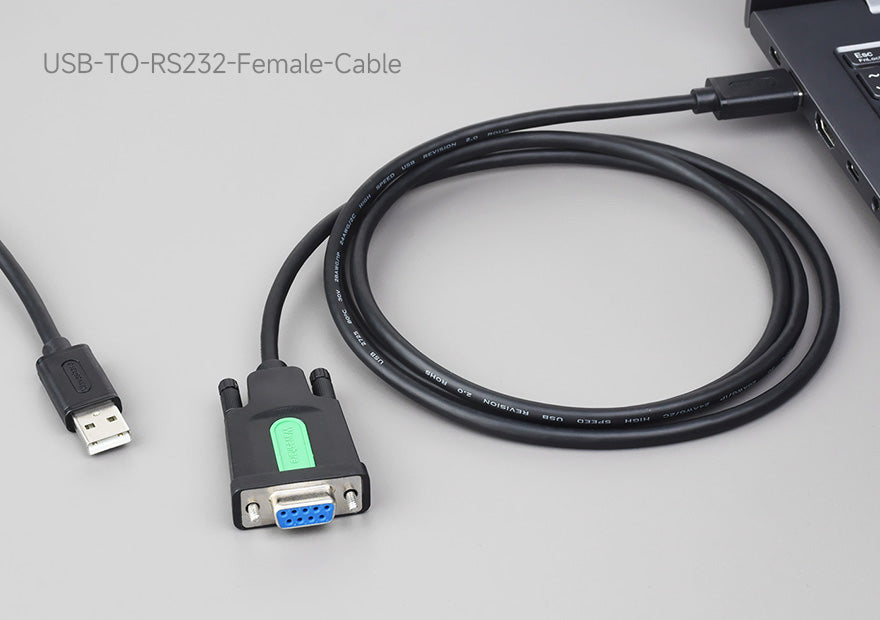

USB-TO-RS232-Female-Cable

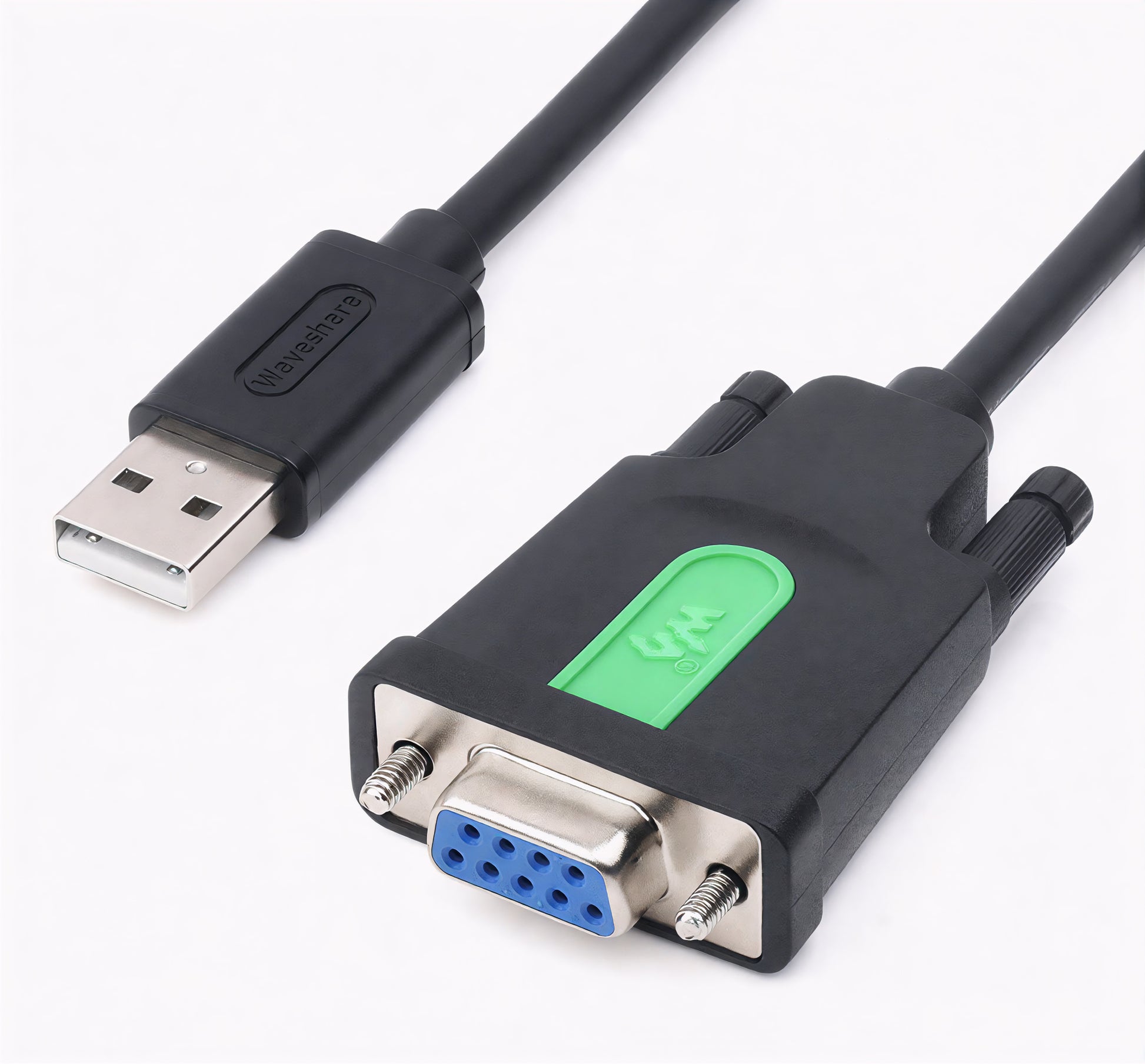

Connector: DB9 female (Female port)
Length: 1.5 m
Ideal for connecting to equipment that has a DB9 male output.

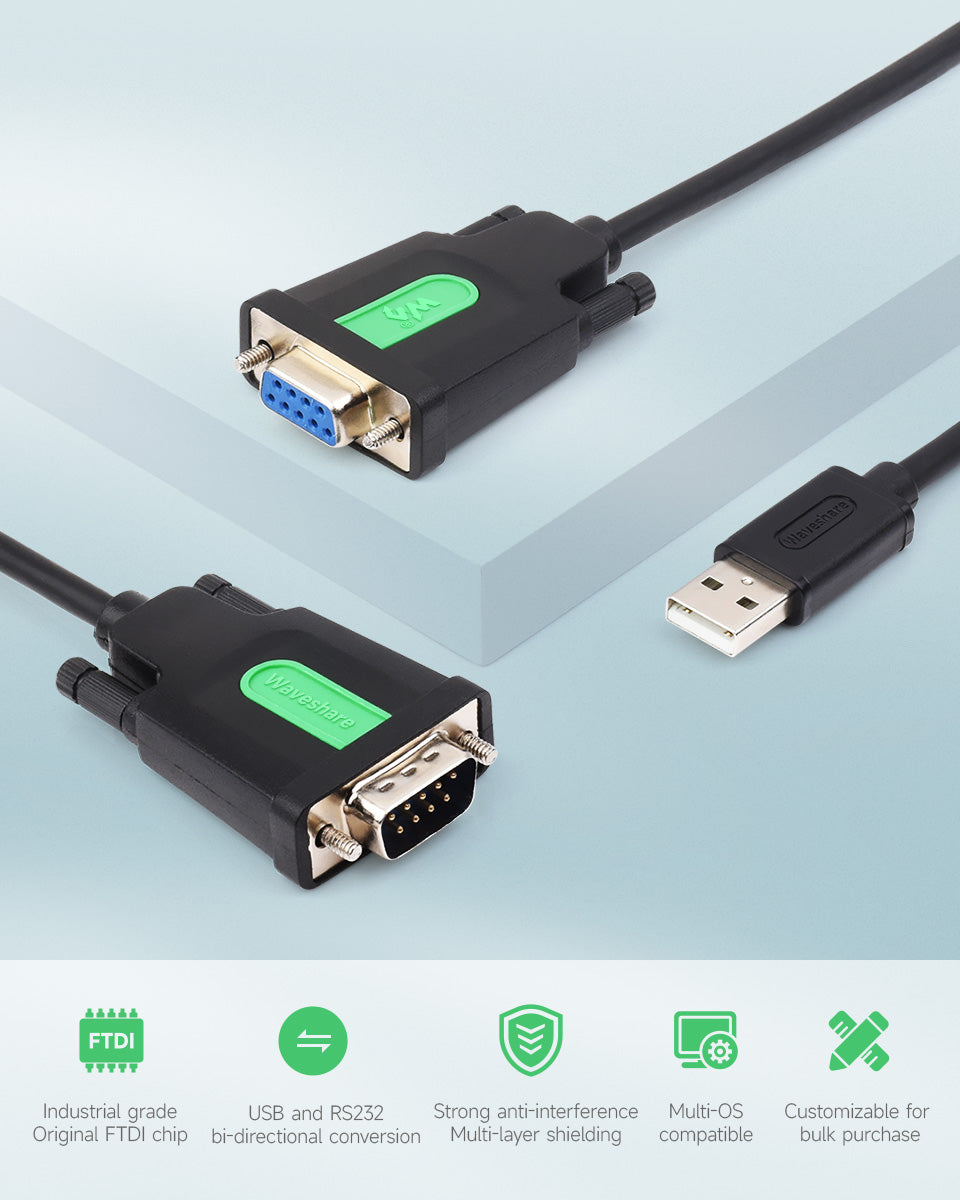

Key benefits
Original FTDI FT232RL chip provides maximum stability and compatibility with PLCs
Bidirectional transmission Reliable USB ↔ RS232 conversion without delays and losses
Anti-interference protection Multi-layer shielding for stable operation in the workshop
Support for all Windows, macOS, Linux, Android OS

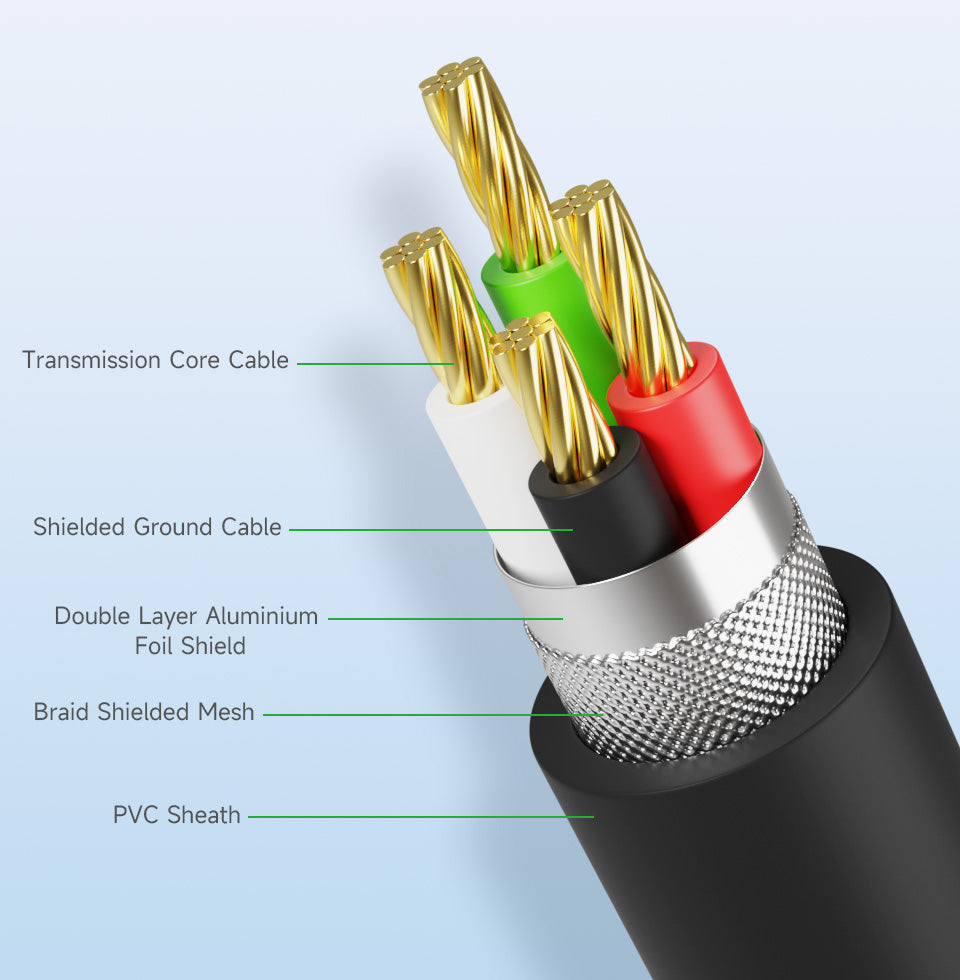

Cable construction
The cable has a reinforced 5-layer structure:
- Core — thick oxygen-free copper for a clear signal
- Grounding — separate shielded wire
- Double foil — protection against high-frequency interference
- Metal mesh - mechanical strength and shielding
- PVC sheath - resistance to bending and wear
DB9 (Female) pinout
| PIN | Name | Note. |
|---|---|---|
| 1 | Data carrier detection | DCD |
| 2 | Sending data | TXD |
| 3 | Receiving data | RXD |
| 4 | Data set ready | DSR |
| 5 | Ground | GND |
| 6 | Data terminal ready | DTR |
| 7 | Clear to send | CTS |
| 8 | Request to send | RTS |
| 9 | Ring indicator | RI |
Compatibility
Windows 7/8/10/11 macOS Linux Android
For most OSes, drivers are installed automatically upon first connection.
Equipment
1. Cable USB to RS232 female (1.5 m) × 1 pc.
Part number:
45683
