Industrial USB3.2-Gen1-HUB-2IN-4OUT (23929)
Industrial USB3.2-Gen1-HUB-2IN-4OUT (23929)
SKU: 1110
Out of stock
This item is temporarily out of stock. Call (099) 381-5288 and we will tell you when it is back or suggest an alternative.
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description
Industrial USB 3.2 HUB — 2-In / 4-Out
Industrial USB hub with 4 USB 3.2 ports, a switch between two hosts, and comprehensive protection against interference and overloads.
Share USB devices between two hosts
Key Features
- 4 extended USB ports with switching between two inputs — shared access to USB devices for two hosts
- Industrial HUB chip with MTT technology — stable and smooth simultaneous connection of 4 devices
- ESD protection on each USB port — prevents damage from electrostatic discharge and data loss
- Overvoltage protection — effectively protects connected devices from damage
- Comprehensive protection: overvoltage, overcurrent, short circuit, overheating, reverse current, undervoltage lockout, 8kV ESD protection, etc.
- Industrial metal casing — durable and long-lasting, with mounting holes for easy attachment
Technical Specifications
| Standard | High-speed USB 3.2 Gen 1 |
|---|---|
| Data Transfer Rate | Up to 5 Gbps |
| USB Outputs | Operating voltage: 5 V, max current: 2 A per port (up to 2 A per USB port with sufficient power; peak total value — 5 A for 4 ports); connector: USB-A |
| USB HUB Inputs | 5 V, two switchable USB-A connectors (independent power, no cross-power) |
| External Power Supply | DC terminal block 7–36 V (additional power is required when connecting high-consumption devices) |
| Operating Temperature Range | -10°C … +85°C |
| Supported OS | Mac OS (8.6 and above), Linux (2.4.20 and above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |

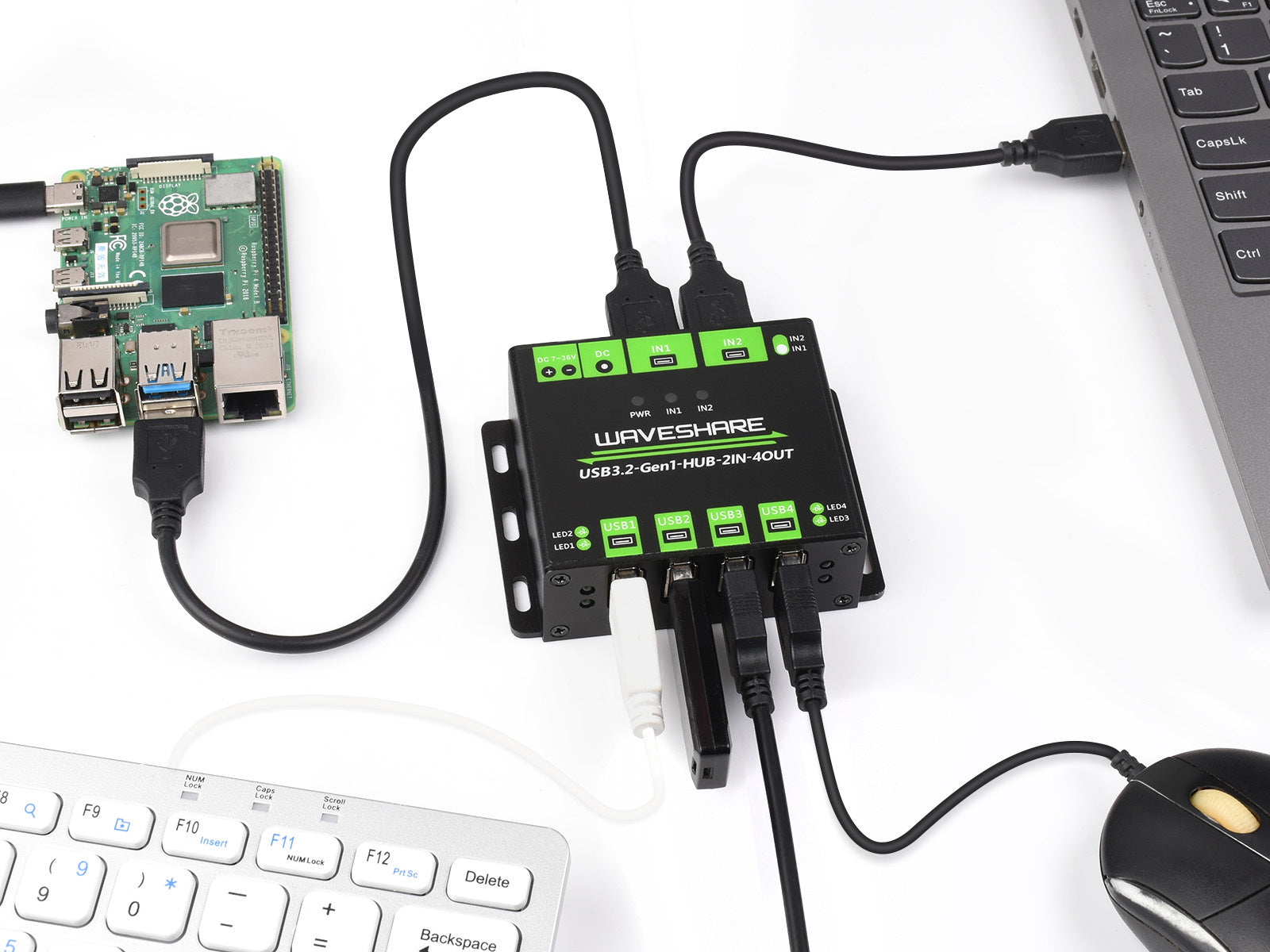

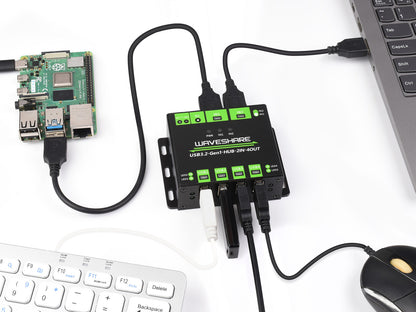

Share USB devices between two hosts
Switch the active host at any time using the convenient switch. Control two hosts (e.g., a computer and a Raspberry Pi) with one set of keyboard and mouse — no extra equipment on the desk, keeping your workspace tidy.
Comprehensive Protection — Greater Safety
Overvoltage, overcurrent, short circuit, overheating, reverse current, undervoltage lockout, 8kV ESD protection, and more.
Multi-OS Support — Plug and Play
Compatible with operating systems: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP.
Application Areas
Suitable for industrial and office environments with increased demands for equipment reliability.
2 Inputs, 4 Outputs
Compact Size, Easy Installation
Mounting Support

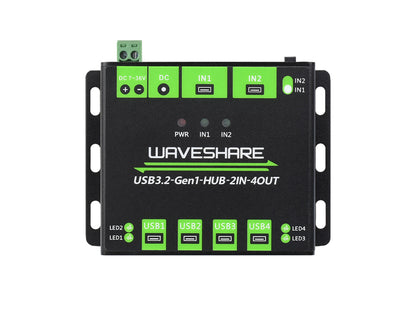

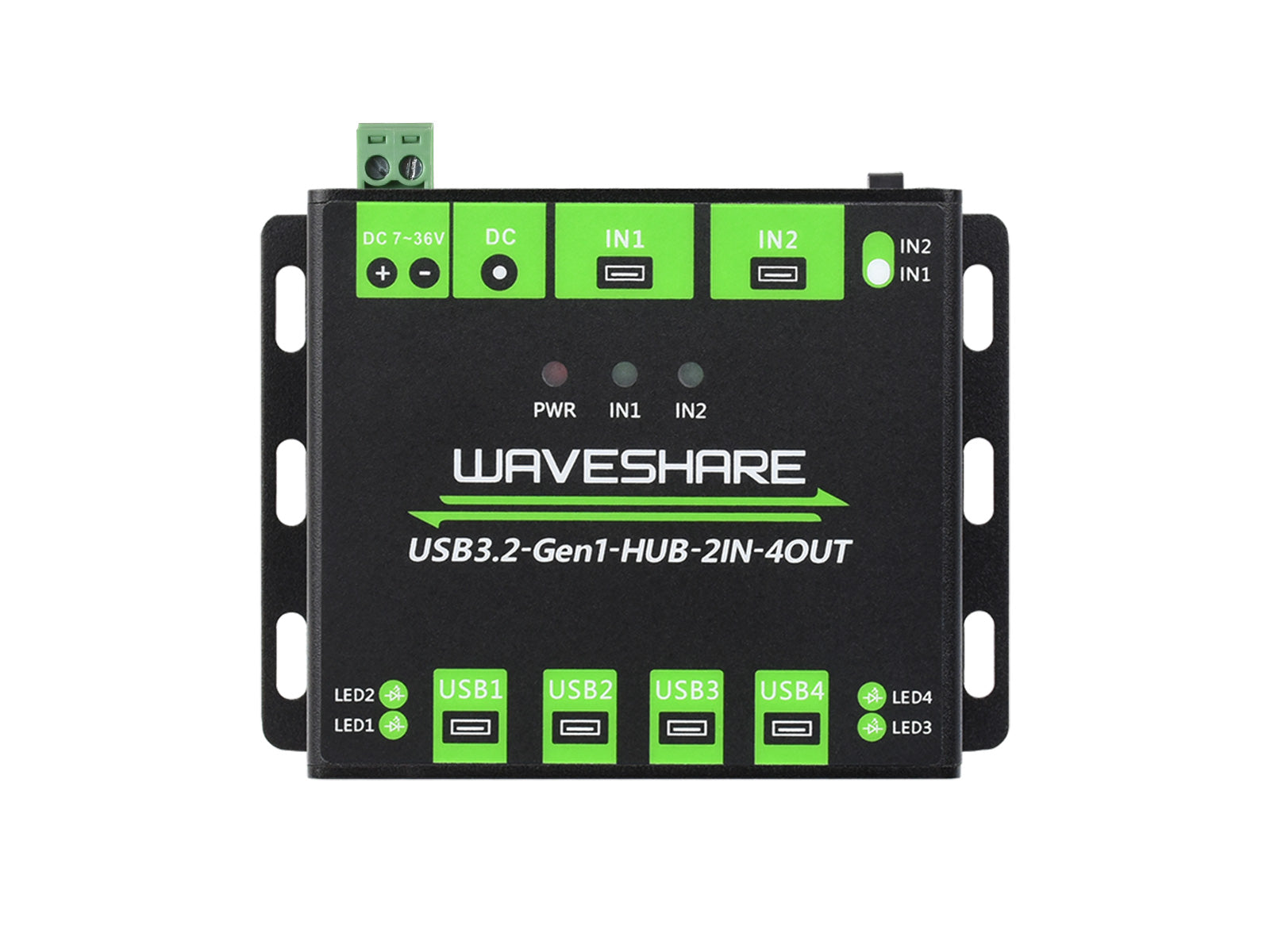

Interface Description

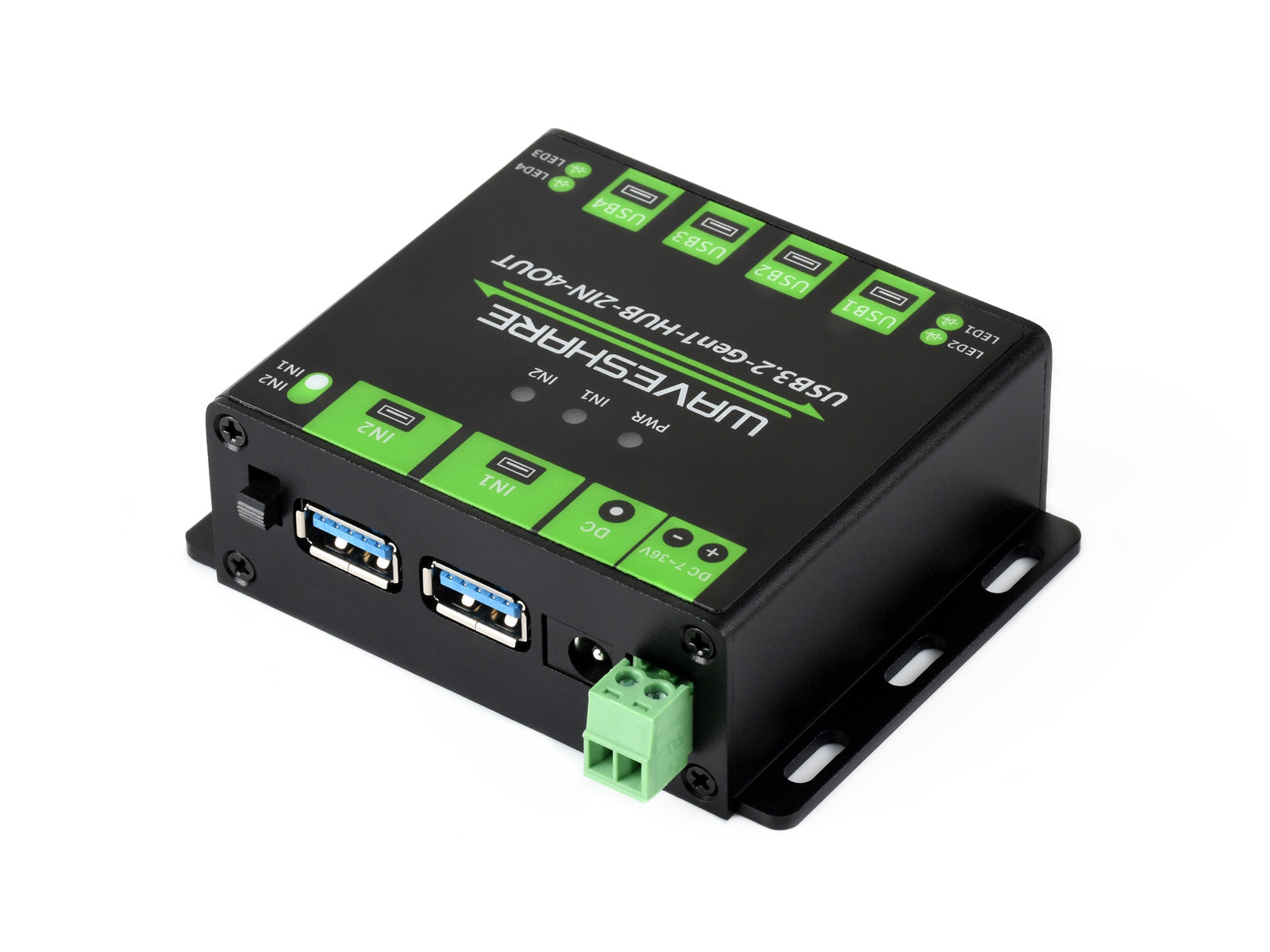

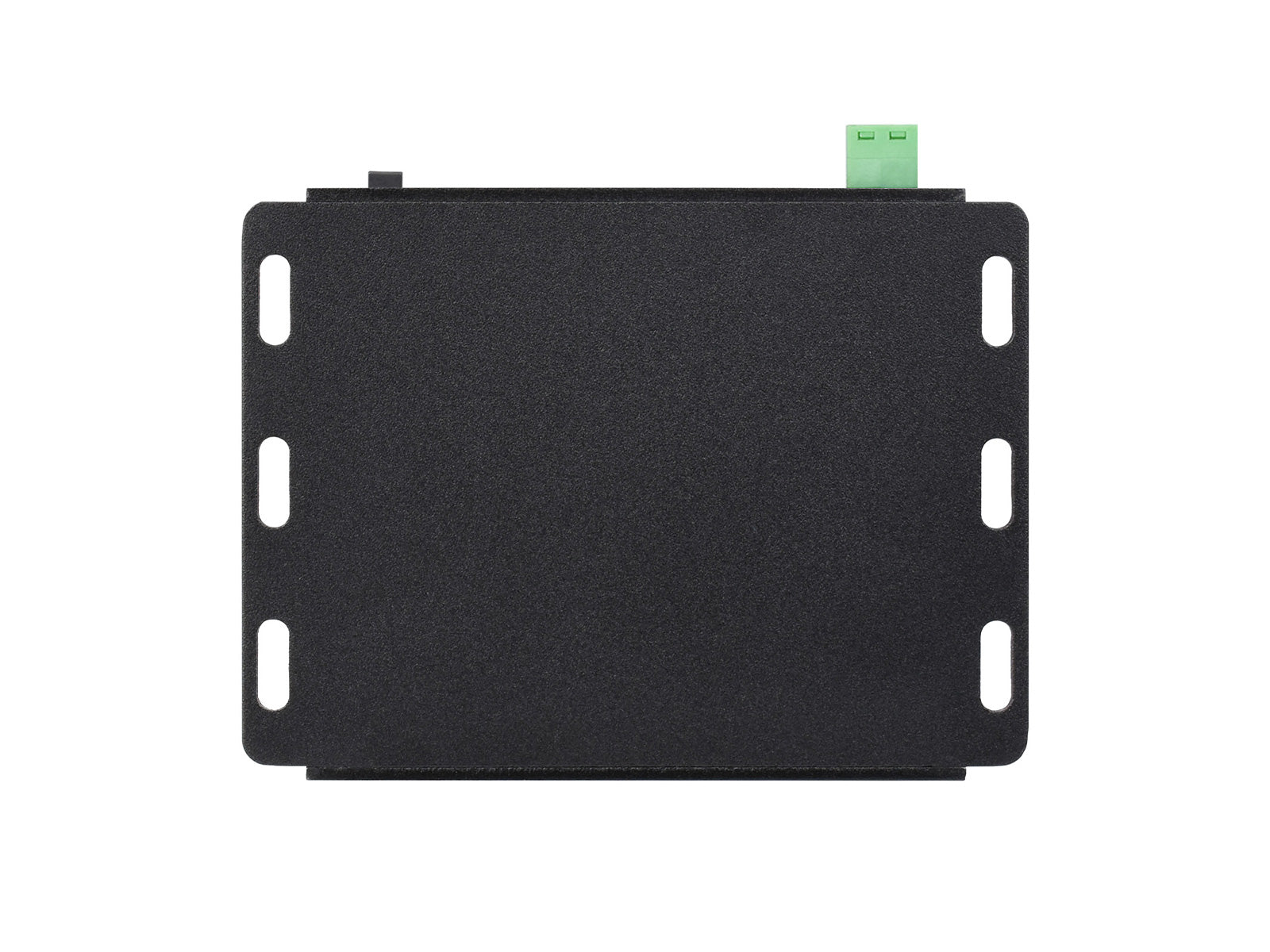

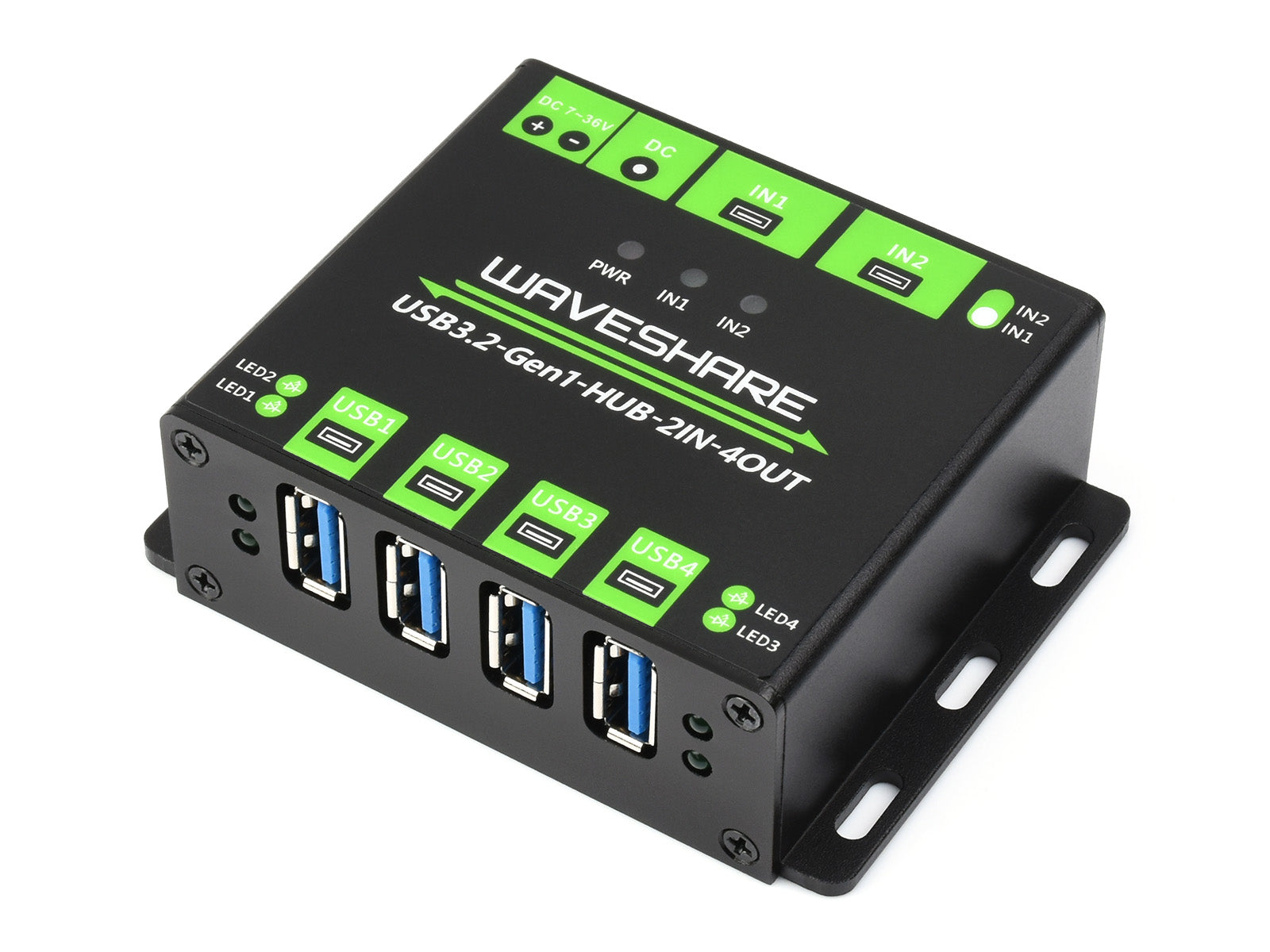

Device Photos
Dimensions
