Description

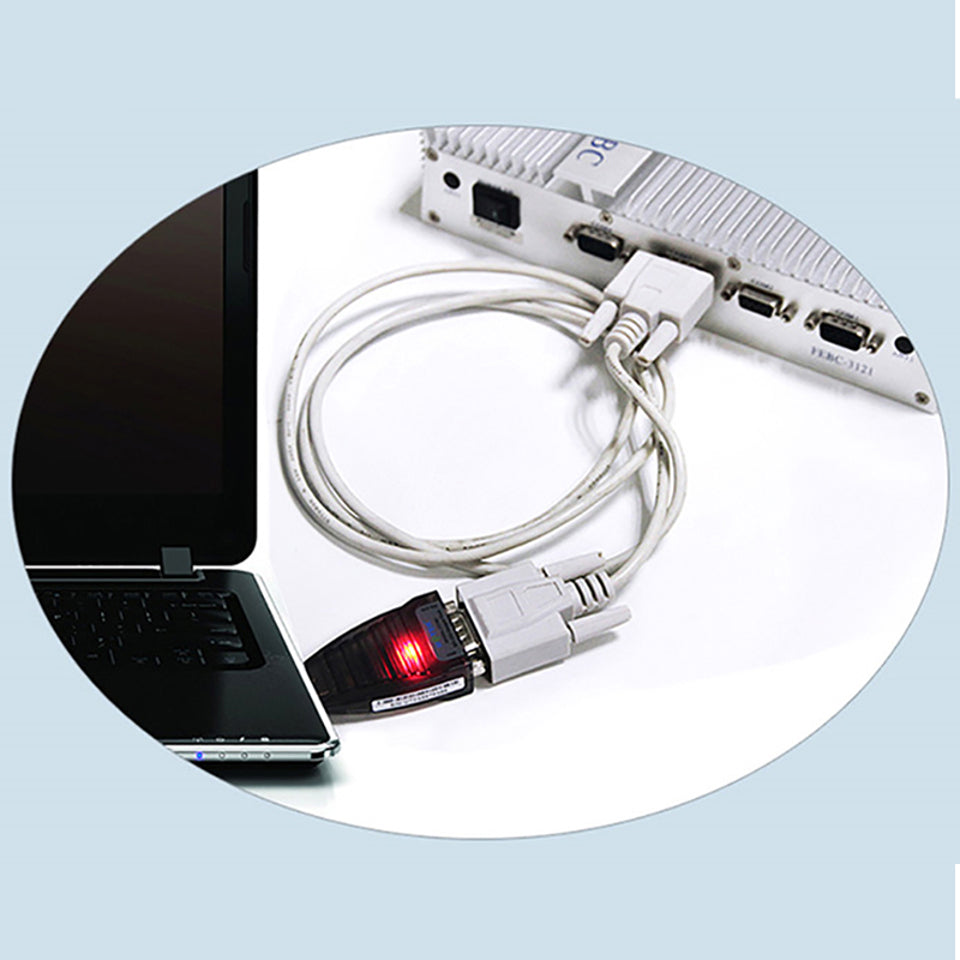

The UOTEK UT-882 adapter allows you to connect devices with an RS-232 interface (COM, DB9) to a computer via USB. It is suitable for industrial equipment, diagnostics, modems, POS systems, and other serial devices. It provides a stable point-to-point connection with automatic baud rate detection.
Advantages:
• RS-232 connection via USB
• Speed 300–460800 bps (auto)
• Asynchronous mode, full duplex
• Automatic data direction control
• ±15kV ESD protection
• LEDs: PWR, TXD, RXD
• Compact size
Technical Specifications:
• Standards: USB 1.0 / 1.1 / 2.0
• Interface: RS-232 (DB9)
• Connectors: USB-A (female), DB9 (male)

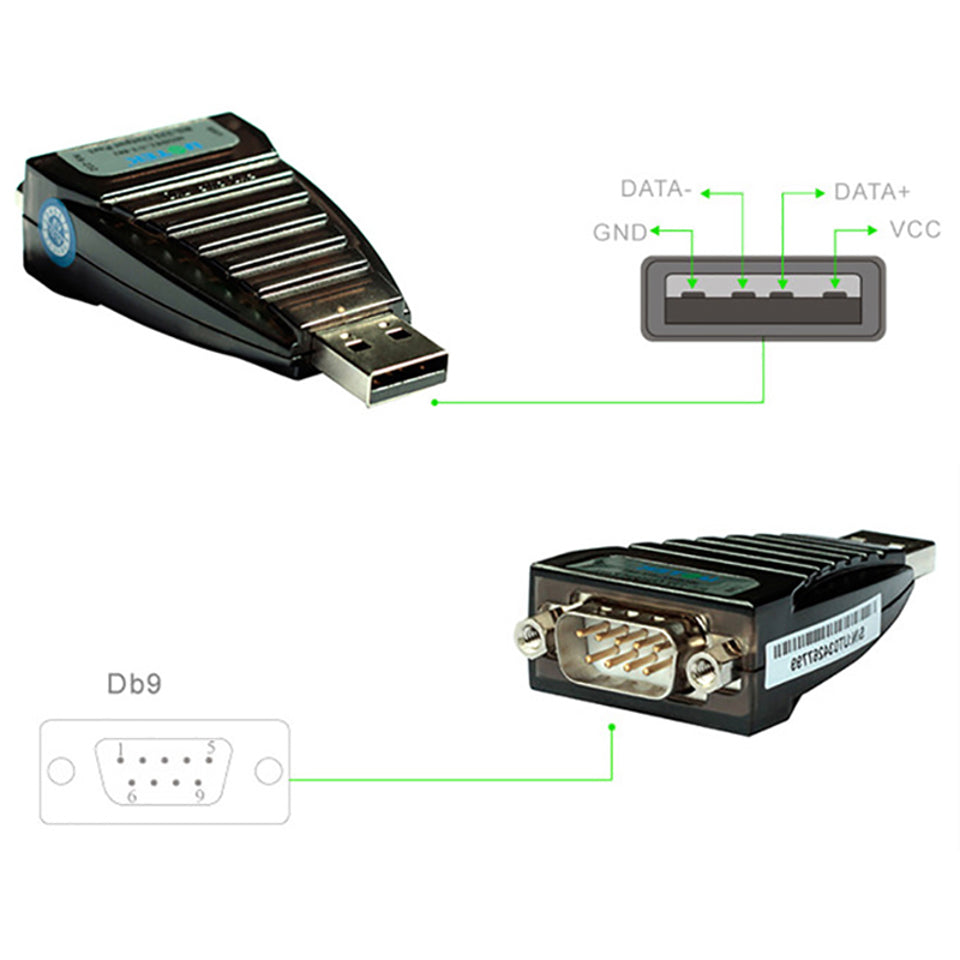

• USB signals: VCC, DATA+, DATA-, GND, FG
• RS-232 signals: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
• Speed: 300–460800 bps (auto), up to 1 Mbps
• Connection type: point-to-point
• Cable length: up to 5 m (USB / RS-232)
• Protection: ±15 kV ESD
• Indication: PWR, TXD, RXD
• Dimensions: 50 × 33 × 16 mm
• Temperature: -40°C ~ +85°C
• Humidity: 5% ~ 95%
Compatibility:
Windows (2000/XP/7/8/10/Server/CE), macOS, Linux
Applications:
• CNC and PLC controllers
• Car diagnostics and special equipment
• Modems and network equipment
• POS systems
• Any devices with a COM port
Package contents:
• UOTEK UT-882 Adapter
