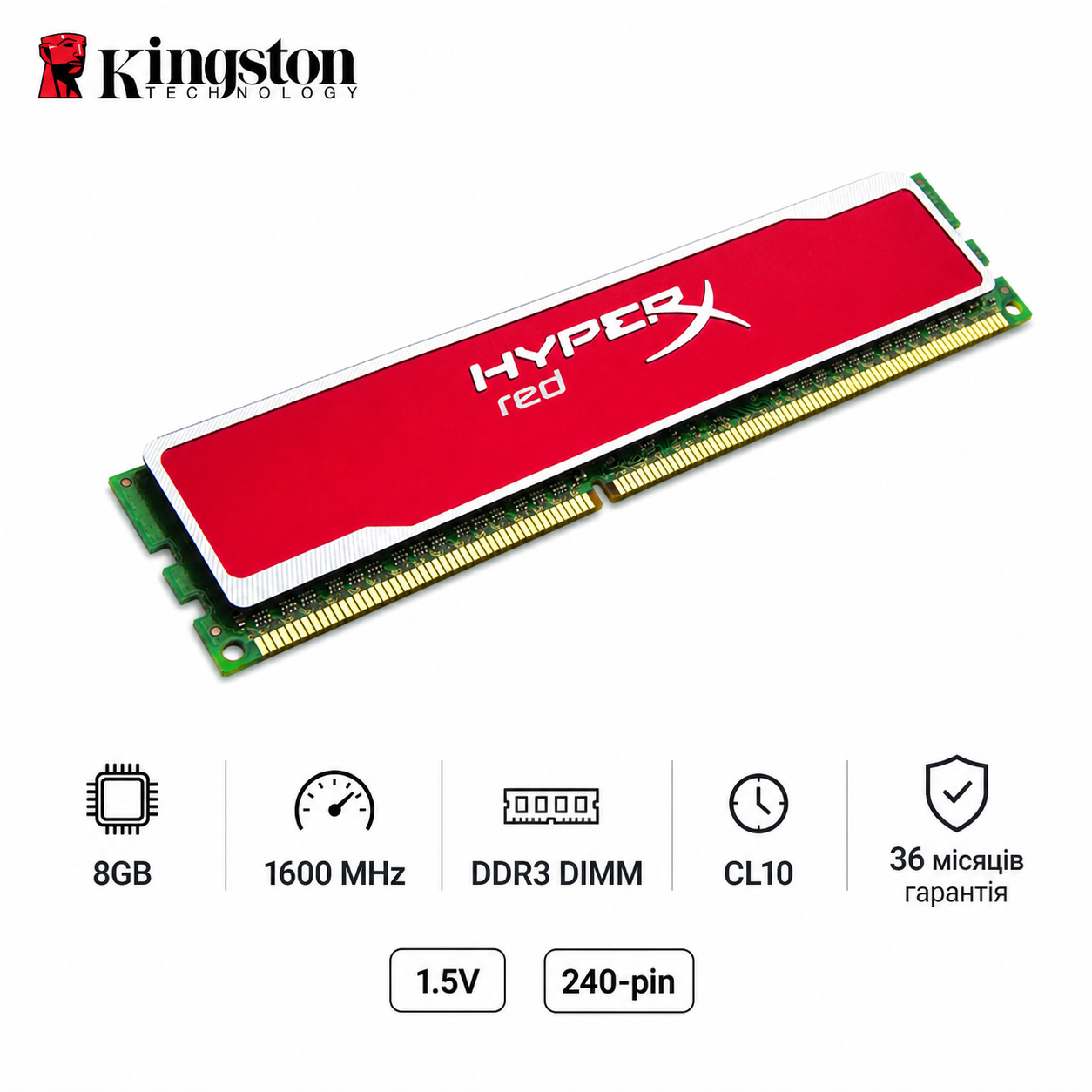

DIMM 8GB DDR3 1600Mhz Kingston KHX16C10B1R/8

This DDR3-1600 CL10 SDRAM memory module from Kingston has a capacity of 8 GB and is based on sixteen 512M x 8-bit DDR3 FBGA components.

Main characteristics

• Memory size: 8GB (1G x 64-bit)
• Frequency: 1600 MHz
• Latency: CL10 (10-10-10)
• Voltage: 1.5V
• Memory type: DDR3 SDRAM
• Number of pins: 240-pin DIMM
• Contact coating: Gold contacts

Specifications

• CL(IDD): 9 cycles
• Row cycle time (tRCmin): 49.5ns (min)
• Refresh time to active state (tRFCmin): 260ns (min)
• Active Row Time (tRASmin): 36ns (min)
• Maximum operating power: 2,460 W
• UL fire rating: 94 V-0
• Operating temperature: 0°C – 85°C
• Storage temperature: -55°C – 100°C

Features

• Support for JEDEC 1.5V standard
• Bus frequency: 667MHz (1333Mb/sec/pin)
• 8 independent domestic banks
• Programmable CAS latency: 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2 or CL - 1 clock
• Programmable CAS Write Latency (CWL) = 7 (DDR3-1333)
• 8-bit pre-fetch
• Bidirectional Differential Data Strobe
• Internal calibration via ZQ pin
• On Die Termination (ODT) via the corresponding pin
• Average update period: 7.8us at TCASE < 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous reset (Reset)
• PCB size: 30.00 mm (1.180”) height, double-sided components
