Industrial 2-Ch RS485 Hub Waveshare 32157
Industrial 2-Ch RS485 Hub Waveshare 32157
SKU: 1087
In stock
Couldn't load pickup availability
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description
Isolated 2-ch RS485 Hub
Expands 2-ch RS485 Ports Via 1-ch Master RS485 Port With Isolation And Relay Transmission
Features

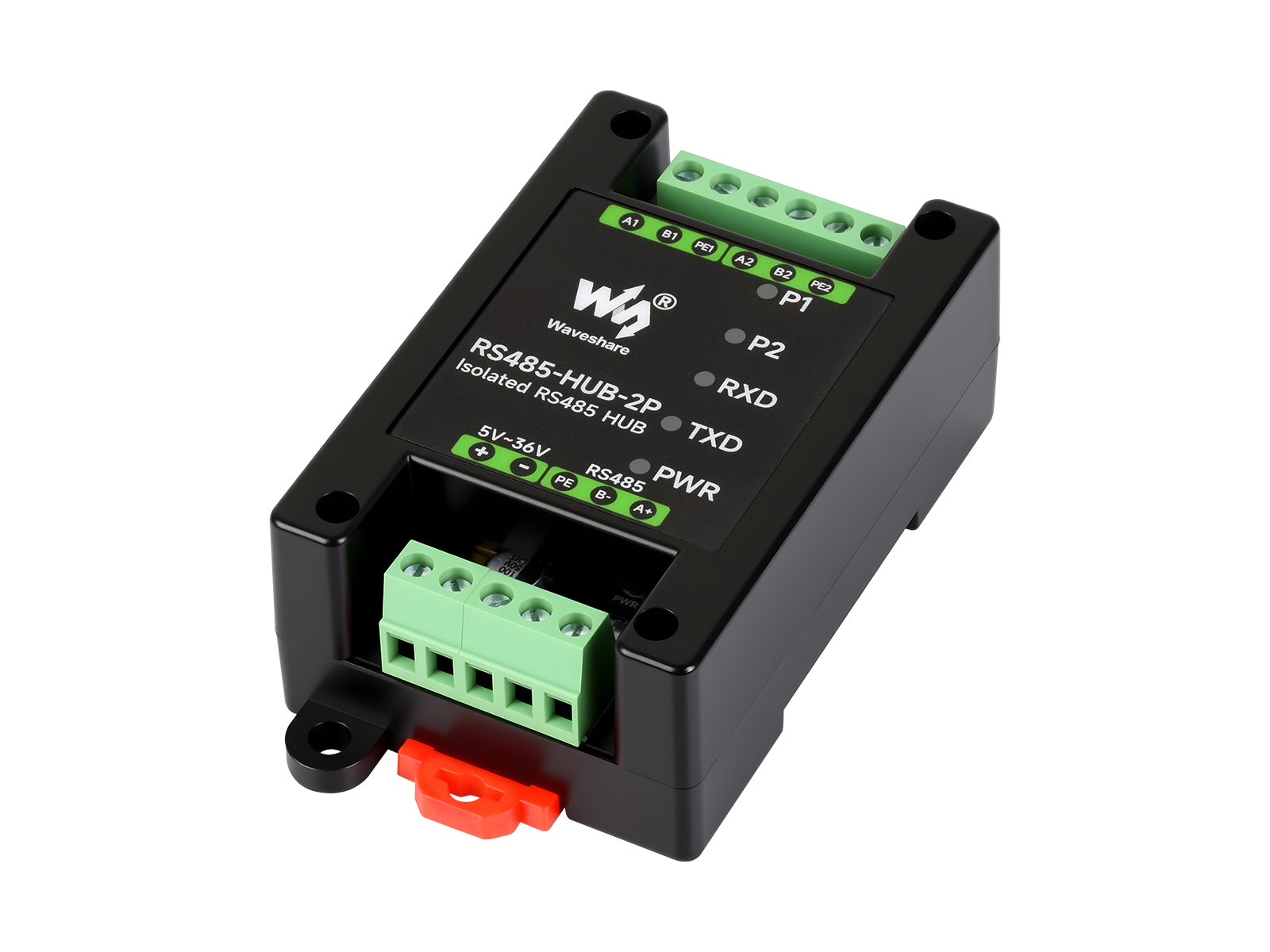

The RS485-HUB-2P is an industrial-grade isolated RS485 hub, which can expand 2-ch RS485 sub-ports via 1-ch master RS485 port. It achieves RS485 network relay transmission, expansion, and isolation functions, with screw terminal for power input. The DIN rail mount design makes it easy to install and cost-effective. Suitable for applications like data collection, IoT gateways, safety & security IoT systems, and smart instrument monitoring.
Specifications
| Interface standard | Conform to RS485 standard |
|---|---|
| Physical interface | RS485 screw terminals |
| Baudrate | 300 ~ 460800bps (self-adaptive) |
| Supported nodes | Each RS485 port supports up to 32 nodes |
| Transmission distance | 1200m (9600bps); faster baudrate, shorter distance |
| Operating mode | RS485 2-wire (A, B), half-duplex transparent transmission |
| Power supply | DC 5 ~ 36V |
| Operating temperature | −45 ~ +85 ℃ |
| Ambient humidity | <95 % RH |
| Transmission medium | Ordinary parallel cables / twisted pair cables |
Basic Function
Supports RS485 network relay transmission, expansion, and isolation functions
Application Diagram
Point-to-point RS485 relay communication
Point-to-point RS485 relay communication
Supports RS485 one-to-two expansion, point-to-point, half-duplex, and relay communication
Point-to-multipoint RS485 relay communication
Point-to-multipoint RS485 relay communication
Supports RS485 bus topology connection for flexible networking, with built-in relay transmission and signal amplification
Multi-RS485 devices cascading communication
Multi-RS485 devices cascading communication
Supports cascading of multiple RS485 devices to solve multi-node networking problems in large systems, providing stable and reliable signal amplification
Industrial Isolation Protection
Built-in optoelectronic isolation circuit effectively isolates master and sub RS485 devices, providing multiple protections against electrostatic, lightning, and surge, suitable for industrial environments with high reliability and safety requirements.
Wide Baudrate Range
Supports wide baudrate range of 300 ~ 460800bps (self-adaptive)
Supports Wall-Mount & DIN-Rail Mounting

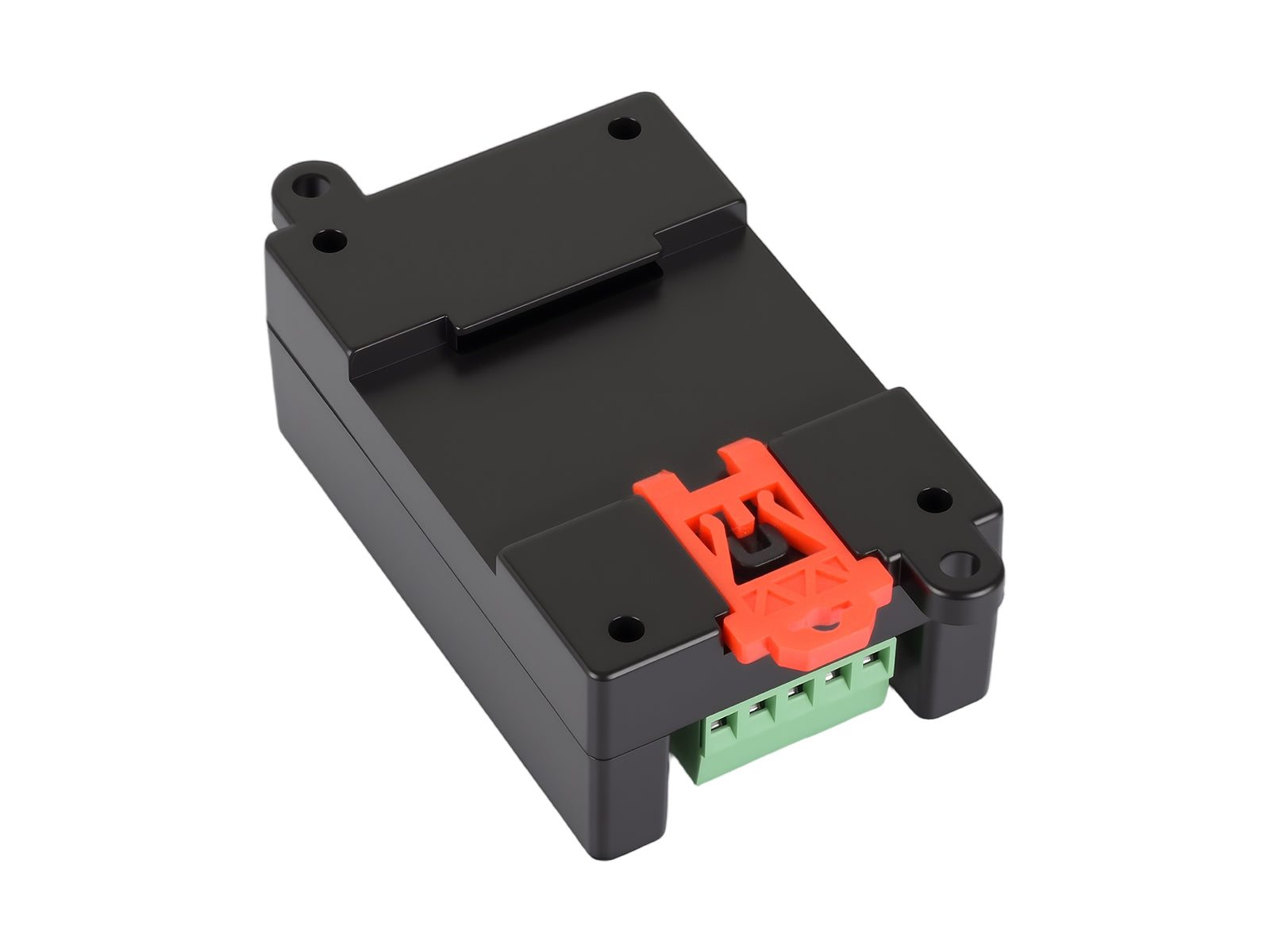

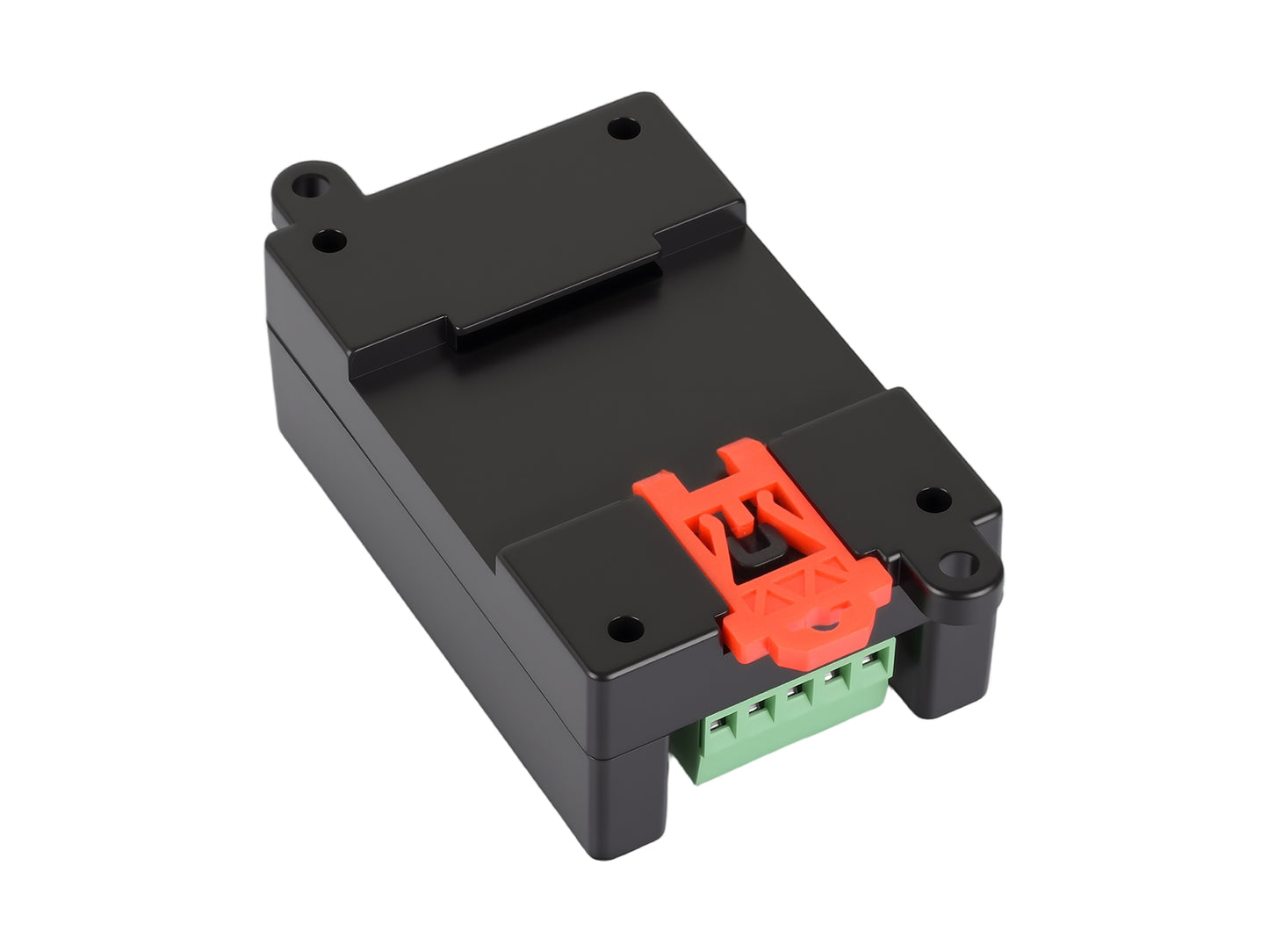

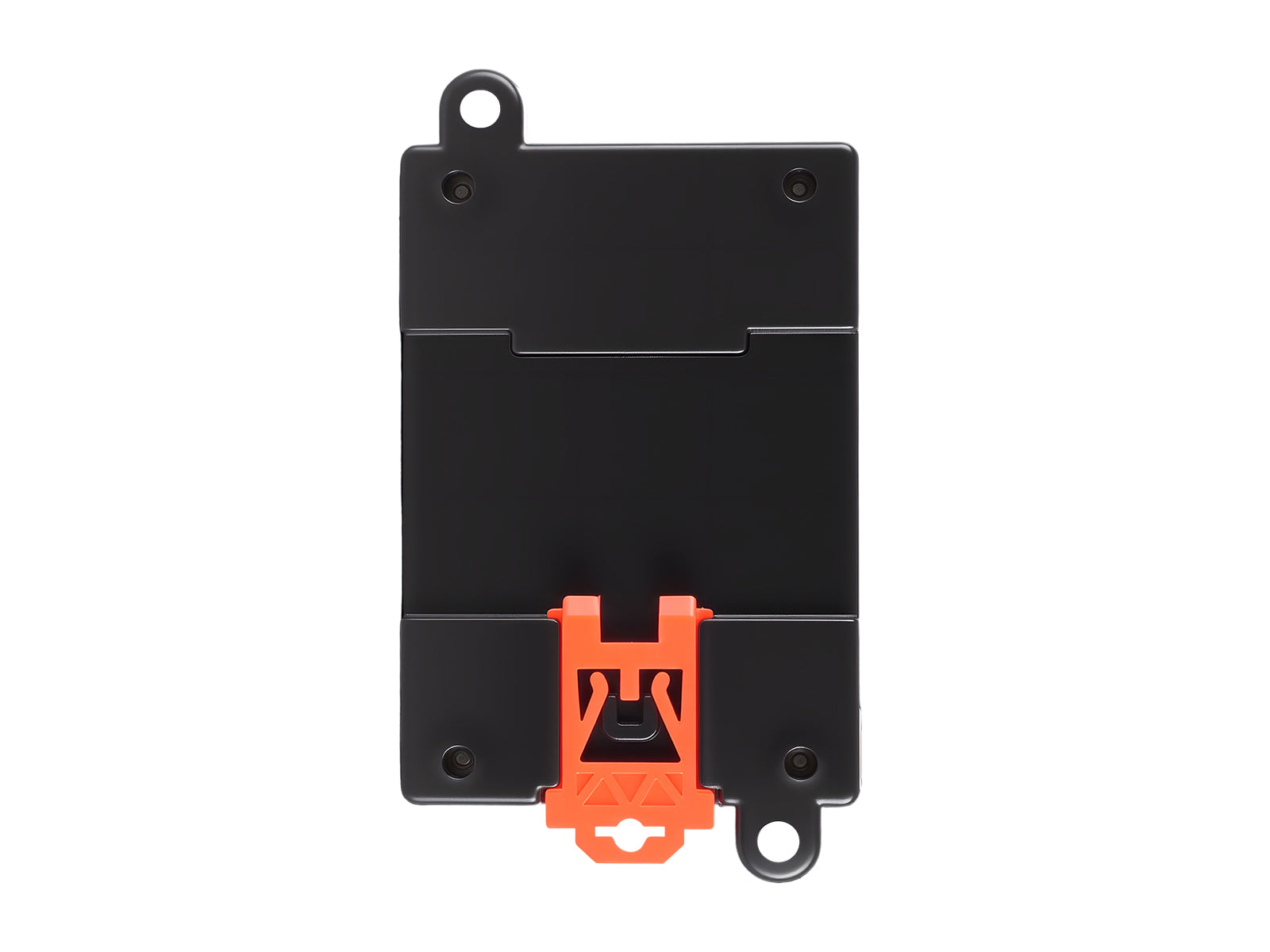

Supports standard 35mm guide rail with DIN rail mount design for easy installation

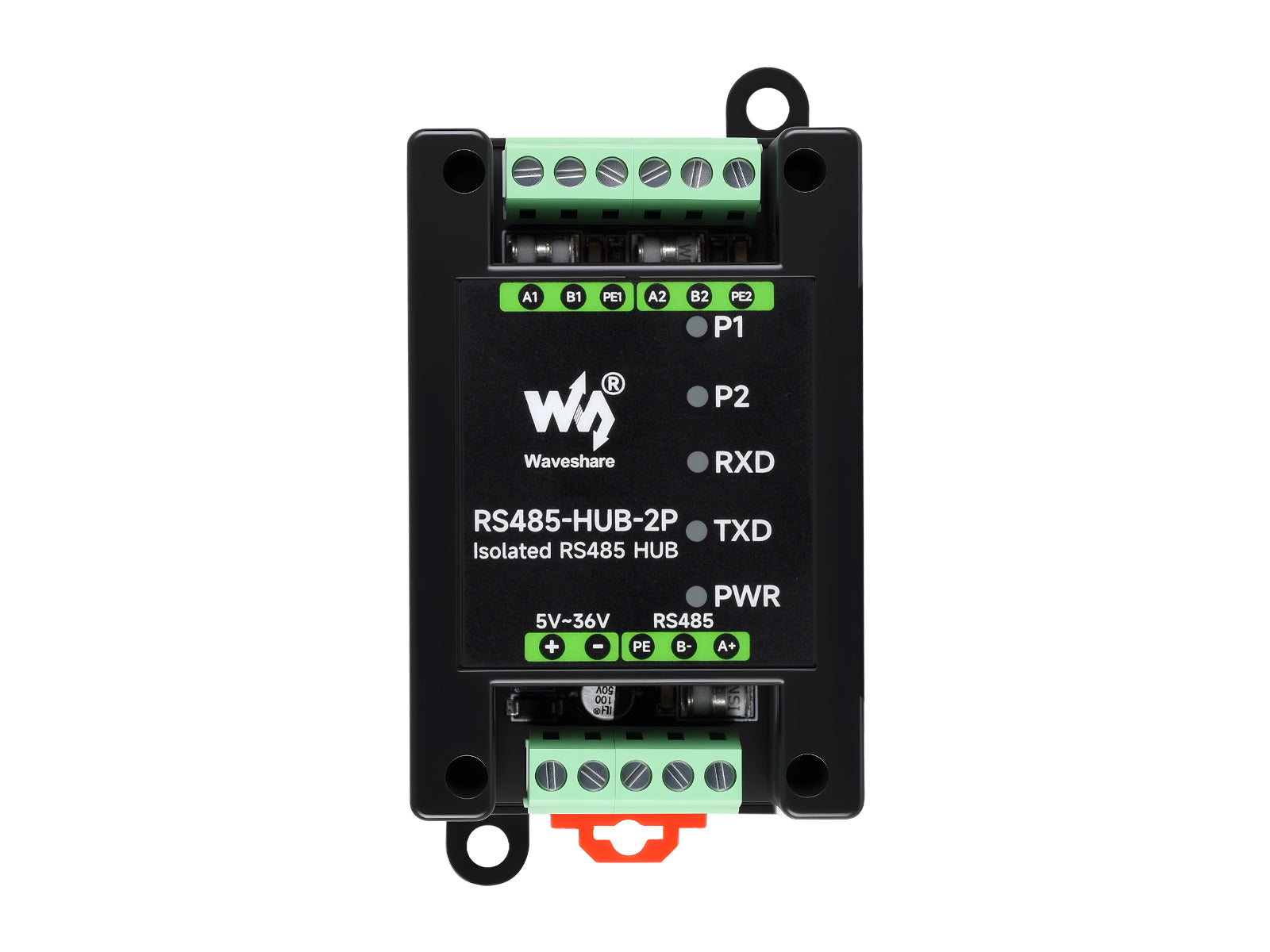

Interface Introduction
Outline Dimensions
