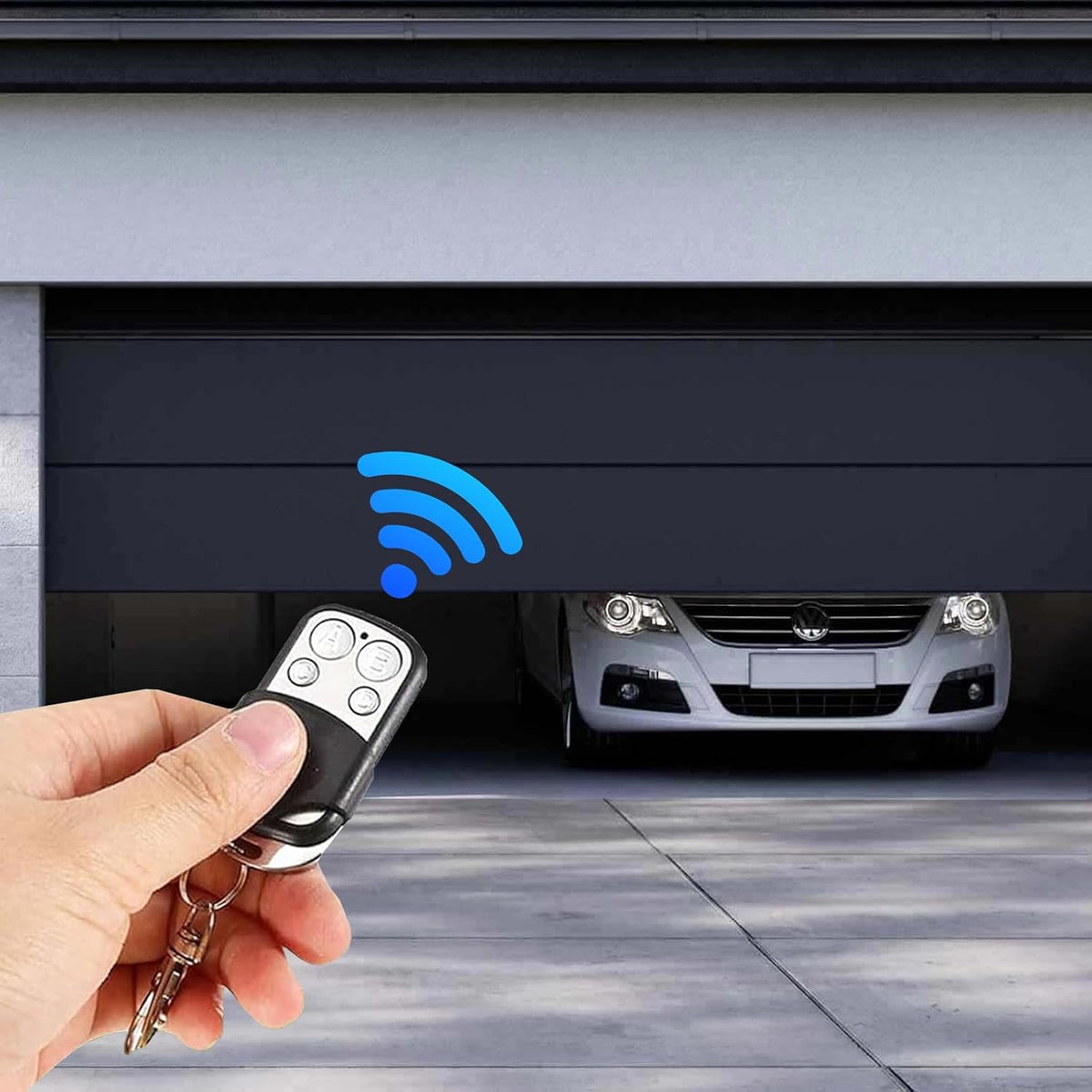

Universal remote control for gates and barriers 433MHz (FZ2005C)

Universal programmable remote control RF 433 MHz Sonoff (4-channel) for gates and barriers. Supports static code only.

Compatible with gates and barriers Sommer, Gant, Nice FLO (static code), Hormann, Marantec, Roger, Came, as well as with devices via the RF 433 MHz channel: PT2262, PT2264, PT1527, PT2240, CAME TOP432A.

You can program up to 4 different barriers or gates with one convenient key fob.

Features

• Convenient button placement
• Compact, moisture-proof housing
• Keyhole
• LED indicator for information
• Sliding cover to protect against accidental presses

Remote control programming

Memory cleaning

1. Press and hold buttons A and B for 5 seconds.
2. Release button B , press it three times, the LED will start blinking quickly.
3. Release all buttons. Press button A for 10 seconds. If the indicator flashes 3 times, the memory is cleared.

Learning (copying code)

1. Bring the remotes as close to each other as possible.
2. Hold down the desired button on the new remote until the indicator flashes.
3. At the same time, press the button on the old remote control - the indicator on the new one will light up continuously.
4. Release the buttons. The code has been copied successfully.

Code recovery

If the code is accidentally deleted, hold down buttons C and D. After three flashes, the code will be restored.

Scope of application

• Automatic sectional doors
• Garage automatic
• Industrial automatic
• Sliding and swing gates
• Automatic roller shutters
• Barriers

The remote control allows you to get an additional copy for systems with a static code. Recording is carried out directly into the receiver's memory or remotely.

Characteristics

• Model: FZ2005C
• Number of buttons: 4
• Code type: Static
• Power supply: 12 V (27A battery)

Equipment

• Remote control RF 433 MHz Sonoff (4-button) - 1 pc.
• Battery 12 V 27A — 1 pc. (for testing performance)
