Description

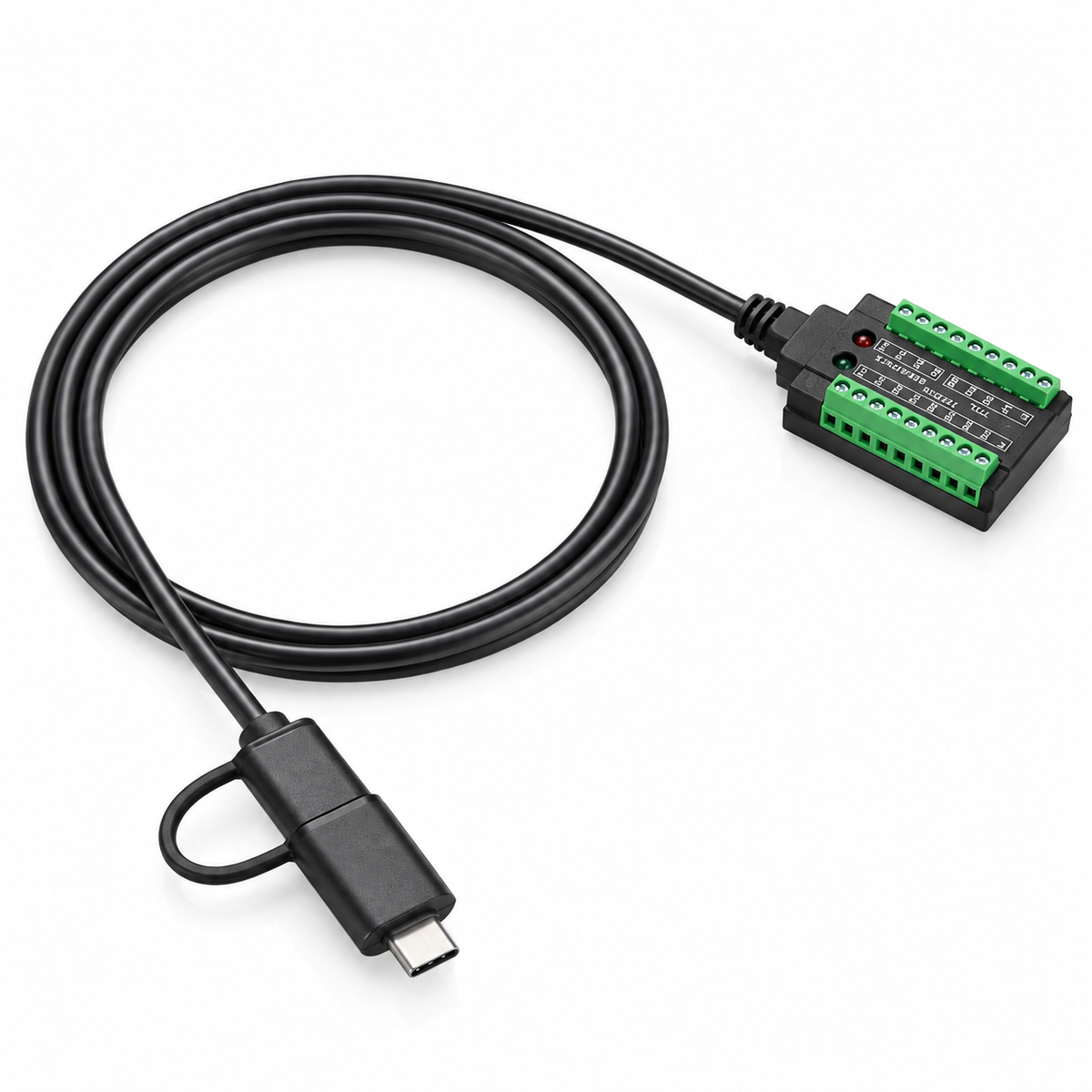

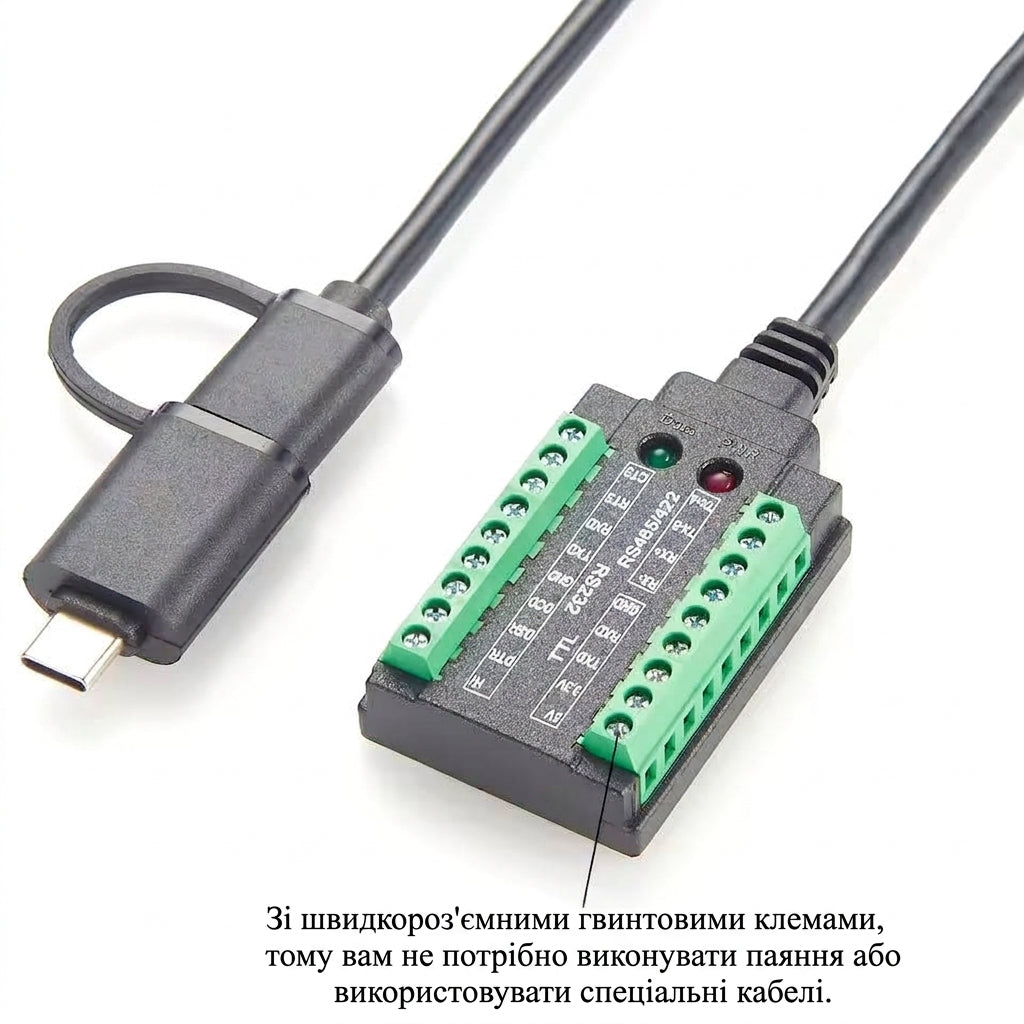

PCM-KW-469 is an industrial universal USB ⇄ RS232/RS485/RS422/TTL converter in cable format. Equipped with a terminal block and a screwdriver for convenient connection without soldering. Built on the original FTDI FT232RNL chip, which provides stable data transmission, compatibility with all popular OS and high reliability in industrial conditions. Supports automatic data direction control, has power and transmission indicators, works without external power (powered by USB). Ideal for connecting controllers, sensors and other equipment with serial interfaces.
Characteristics
| Model | PCM-KW-469 |
|---|---|
| Type | USB → Multi-Protocol Serial Converter (4-in-1) |
| Supported interfaces | RS232 / RS485 / RS422 / TTL (UART) |

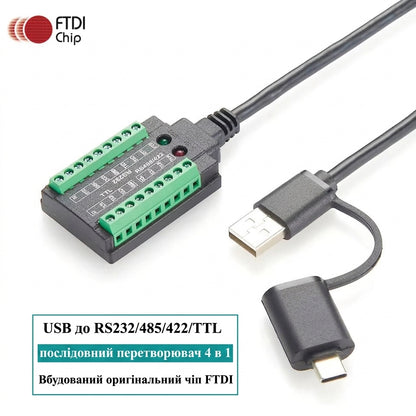

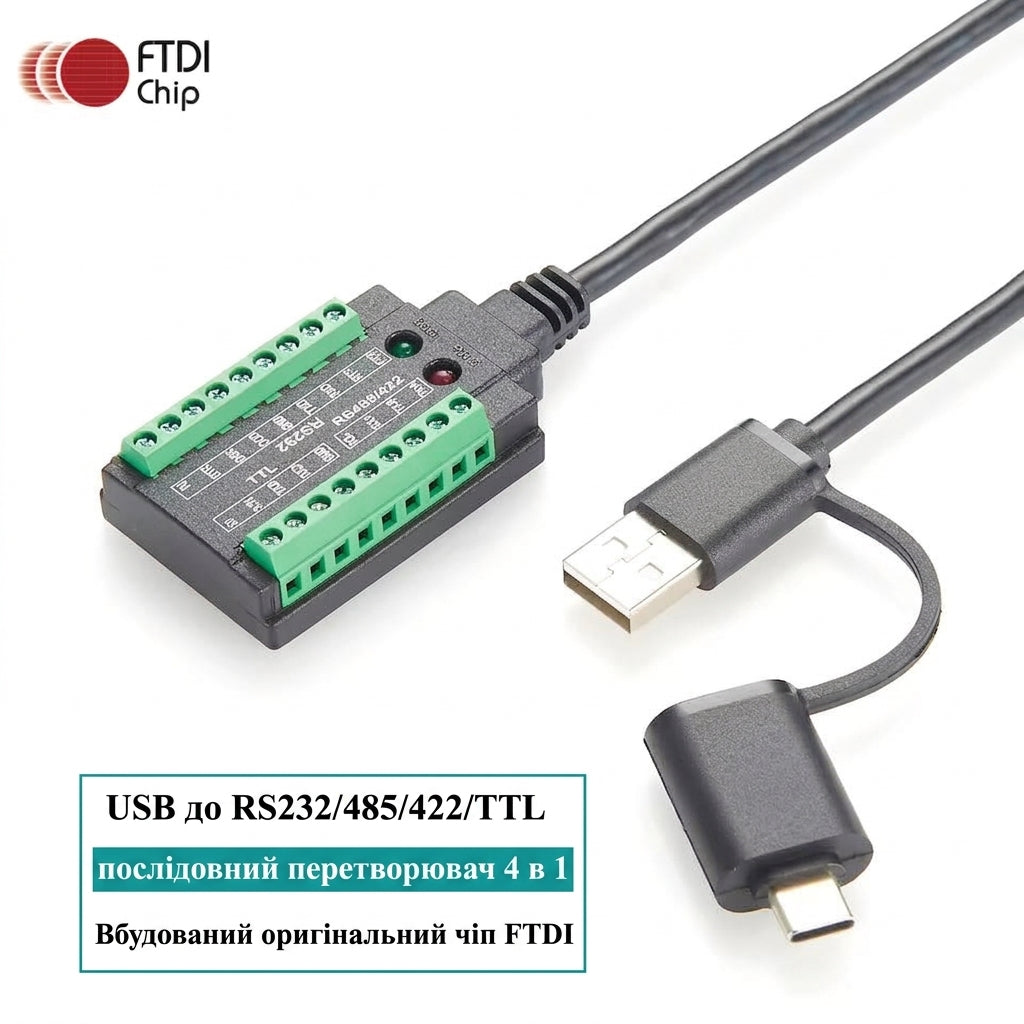

| Microcircuits | FTDI FT232RNL + UM213 + MAX485 |

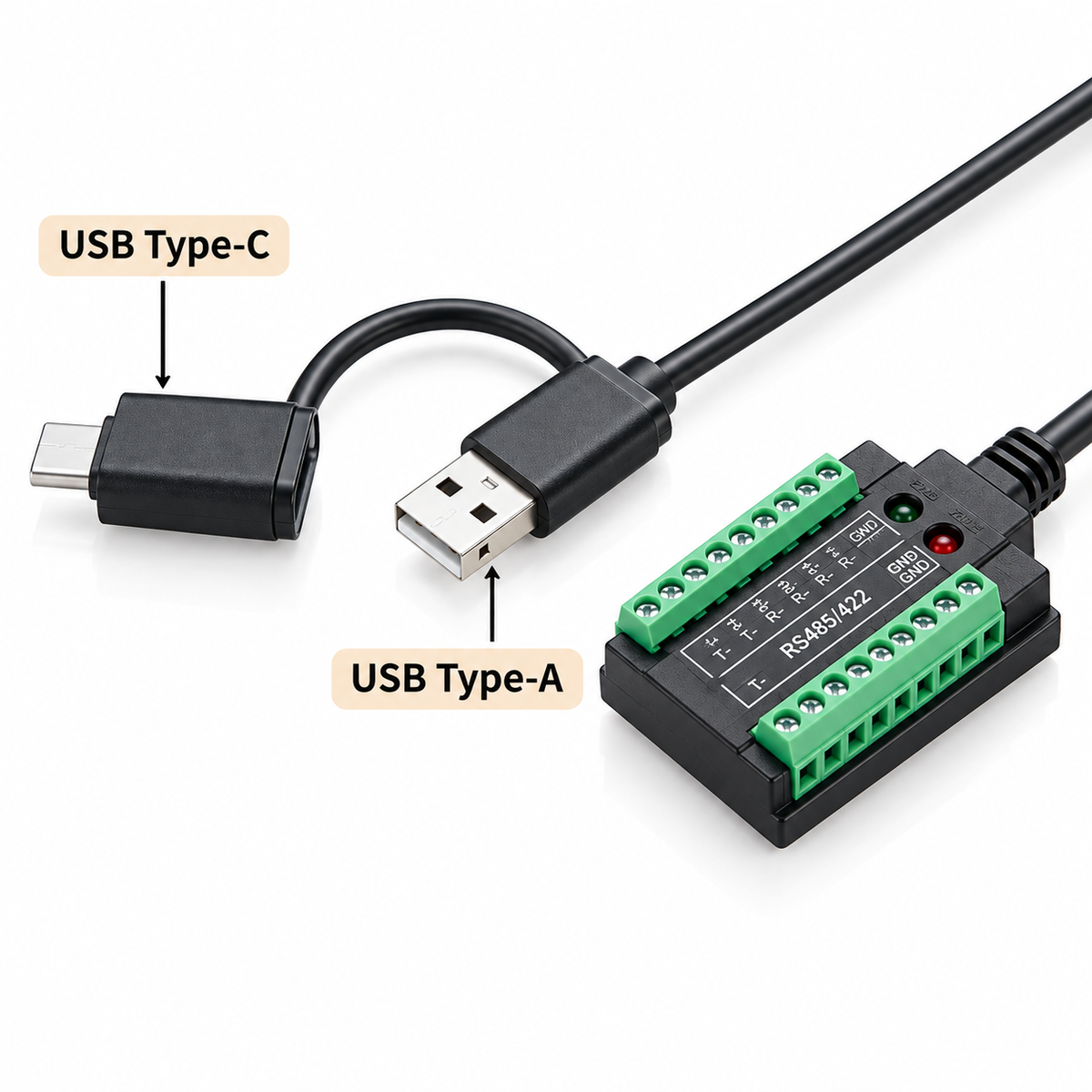

| Input connector | USB-A / USB-C |
| Output connector | Screw terminal block (Terminal Block) |

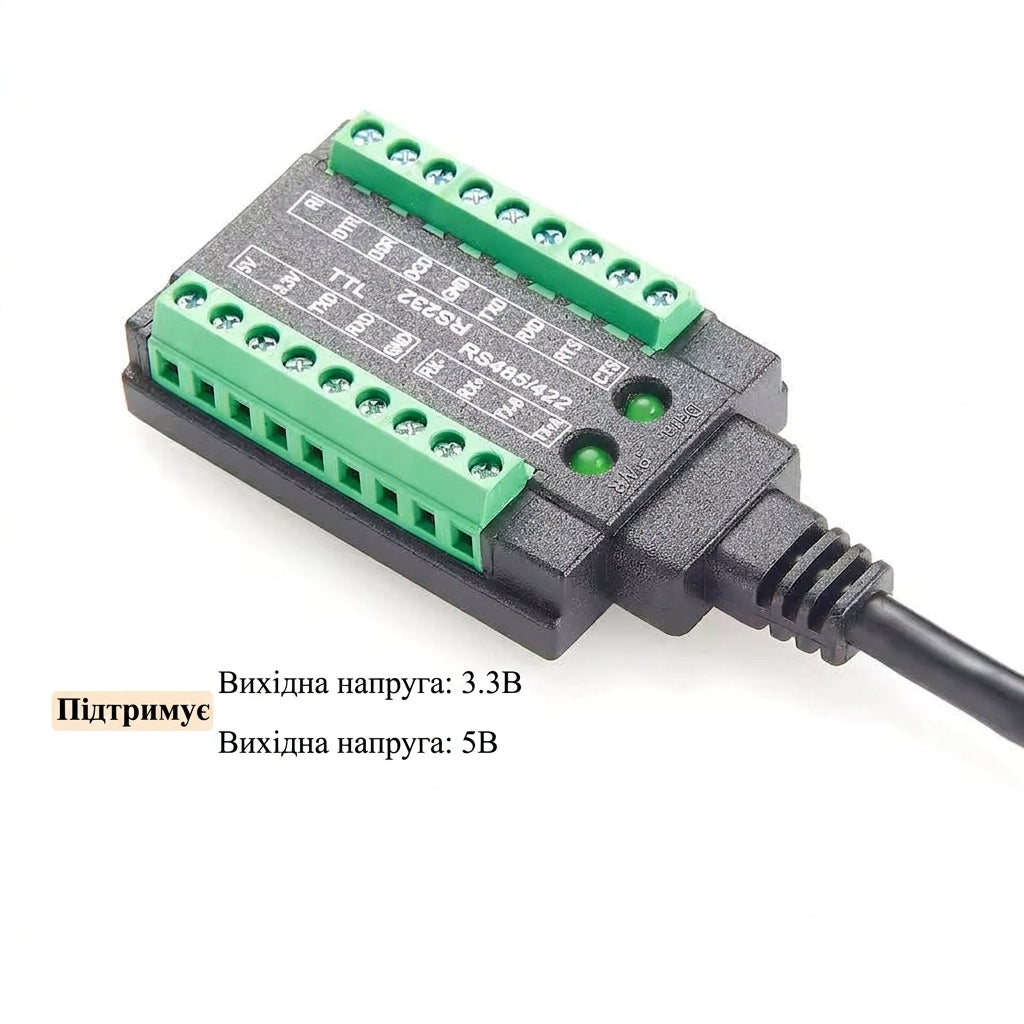

| Initial levels | 3.3V / 5V (TTL), RS232/RS485/RS422 signals |
| Indicators | Red (Power), Green (Data TX/RX) |
| Feeding | From USB, without external source |
| Direction control | Automatic (zero-delay auto TX/RX) |
| OS compatibility | Windows 11/10/8.1/8/7, Linux, macOS, Android |
| Certifications | CE, RoHS, UL |
| Brand | PremierCable |
Equipment
- Converter cable PCM-KW-469 (USB-A/C → RS232/RS485/RS422/TTL)
- Screw terminal block (Terminal Block)
- Phillips screwdriver
- User manual
Part number:
45667
