UART to WiFi and Ethernet Module, Embedded UART Serial Server, Industrial WiFi Module, 802.11b/g/n Integrated Module
Features at a Glance
This is an industrial-grade 802.11b/g/n integrated module, providing bidirectional transparent data transmission via TTL serial port, WiFi, and Ethernet port. It integrates multiple functions in one device, including serial server, Modbus gateway, MQTT gateway, UART to HTTPD Client, and more. Traditional serial port devices or MCU control devices can quickly connect to a wireless WiFi network using this WiFi module. It is small in size, easy to install, and suitable for applications such as data collection, IoT gateway, security, and smart instrument monitoring.
Specifications
| Product | UART-WIFI232-B2 | RS485 TO WIFI/ETH | RS232/485 TO WIFI ETH (B) | RS232/485 TO WIFI POE ETH (B) |
|---|---|---|---|---|
 |
 |
 |
 |
|
| General Features | ||||
| Product Description | Embedded module | Industrial rail-mount module with plastic casing | Industrial rail-mount/wall-mount module with metal casing, optional PoE function | |
| Power Supply | DC 3.3V (±5%) | DC 5~36V | DC 6~36V | DC 6~36V / PoE port |
| Power Supply Method | Pin header | Screw terminal | DC 5.5 power port, screw terminal | DC 5.5 power port, screw terminal or PoE port |
| Dimensions (L × W × H) | 25.00 × 40.00 × 8.00 mm | 109.66 × 28.00 × 64.71 mm | 84.00 × 64.00 × 24.00 mm | |
| Communication | ||||
| Ethernet | 10 / 100M auto-negotiation (connected via pin header) | 10 / 100M auto-negotiation RJ45 jack | ||
| WiFi | 802.11b/g/n compliant | |||
| Serial Port | UART | RS485 (ESD/EFT/Surge protection) | RS232 (ESD/EFT protection) RS485 (ESD/EFT/Surge protection) |
|
| Wireless Specifications | ||||
| Frequency Band | 2.412 ~ 2.484 GHz | |||
| Wireless Network | Station / AP / AP+Station mode | |||
| Security Mechanism | WPA-PSK / WPA2-PSK | |||
| Encryption Type | TKIP / AES | |||
| Transmit Power | 802.11b: +19dBm (max. @11Mbps) 802.11g: +18dBm (max. @54Mbps) 802.11n: +17dBm (max. @HT20, MCS7); +17dBm (max. @HT40, MCS7) |
|||
| Receive Sensitivity | 802.11b: -89dBm (@11Mbps) 802.11g: -81dBm (@54Mbps) 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7) |
|||
| Serial Port Features | ||||
| Baudrate | 300 ~ 460800 bps | |||
| Parity Bit | None, Odd, Even, Mark, Space | |||
| Data Bit | 5 ~ 9 bits | |||
| Flow Control | RTS/CTS | N/A | ||
| Software | ||||
| Protocol | TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT | |||
| Configuration | Host, Web browser, Serial AT command | |||
| Communication Method | TCP/IP direct communication, VCOM | |||
| Working Mode | Transparent transmission, Serial command, HTTPD Client, Modbus TCP to Modbus RTU | |||
| Environmental Requirements | ||||
| Operating Temp. | -40℃ ~ 85℃ | |||
| Humidity Range | 5% ~ 95% RH | |||
Main Function
Supports UART to WiFi, UART to Ethernet, Ethernet to WiFi, and other variations.
Function Block Diagram
Transparent Transmission Mode
Supports TCP Server, TCP Client, UDP Server, UDP Client
Advanced Functions
MQTT Support
Devices can subscribe to messages from other MQTT clients and publish topic information to the server. Supports subscribing to 6 messages and publishing 6 topics, offering a wider range of uses and more applicable scenarios. Users can view device information through terminal devices or cloud platforms.
HTTP Client
After the user has set the HTTP header via AT commands or webpage, the module can send data to the HTTP server or receive data from the HTTP server
Protocol Transmission
Users send data to servers according to the protocol and can send data to different servers without restarting
Modbus Conversion
Supports mutual conversion mode of Modbus TCP and Modbus RTU
Supports Multiple Wireless Connection Methods
Supports AP mode, STA mode, and AP+STA mode
Features
Supports multiple configuration methods such as host, web browser, and serial port configuration
The built-in webpage allows setting IP address, port number, serial port baud rate, and other parameters through the web interface.
The user can query the current state of the module or set related parameters by sending AT commands
In transparent transmission mode, the serial device can send data to the specified Socket connection; the network data of each Socket is sent to the serial device through the serial port
The Websocket function implements data interaction between the module's webpage and the module's serial port; the Websocket server function allows the module's serial port to interact with the webpage in real-time, replacing previous HTTPGET, POST, and PUT methods for faster response times.
The registration pack is used to identify device information on the server, so the server can recognize the device
Through this Ethernet port, data can be transmitted between WiFi, serial port, and Ethernet port.
Application Scenarios
Interface Description

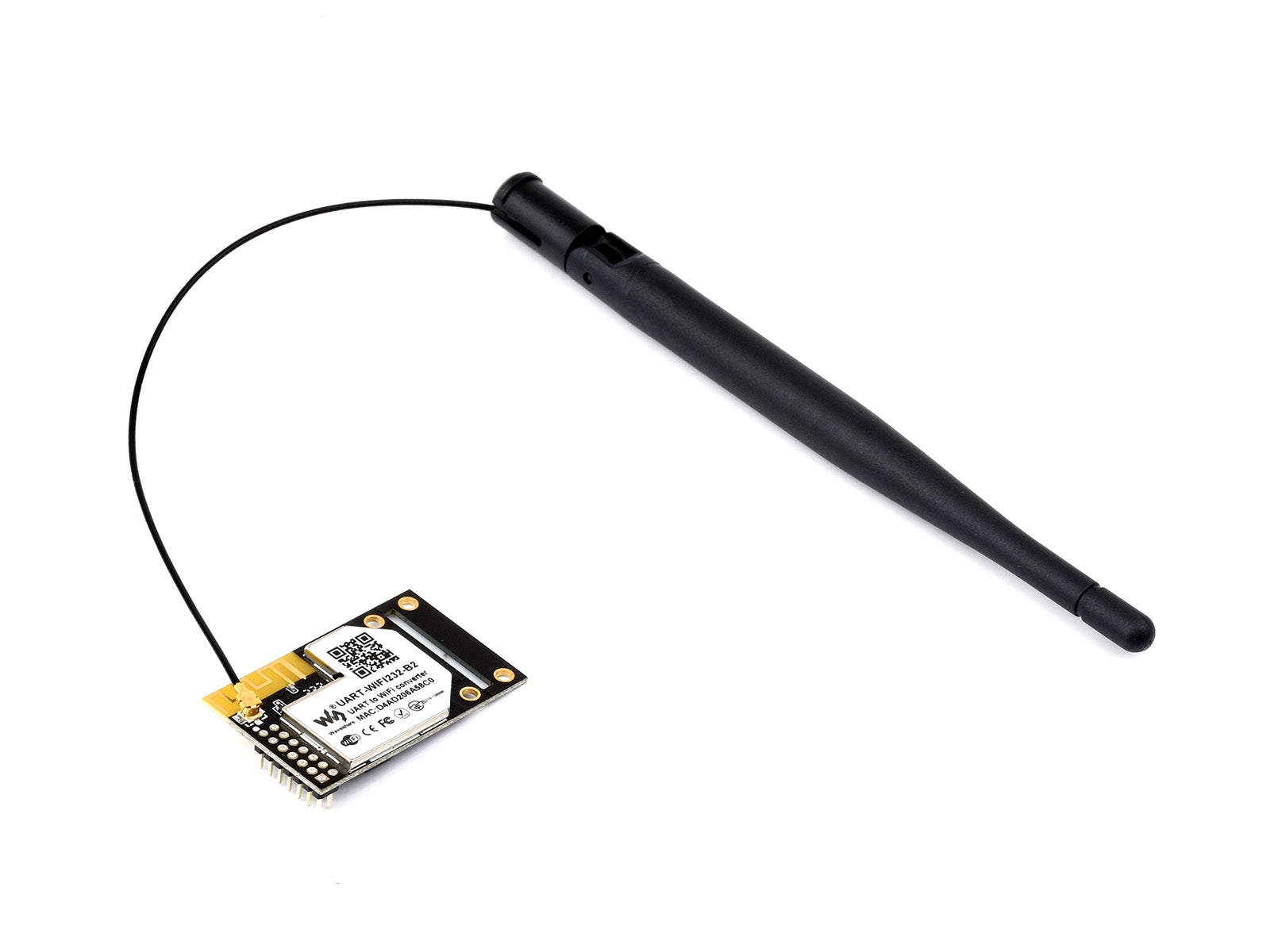

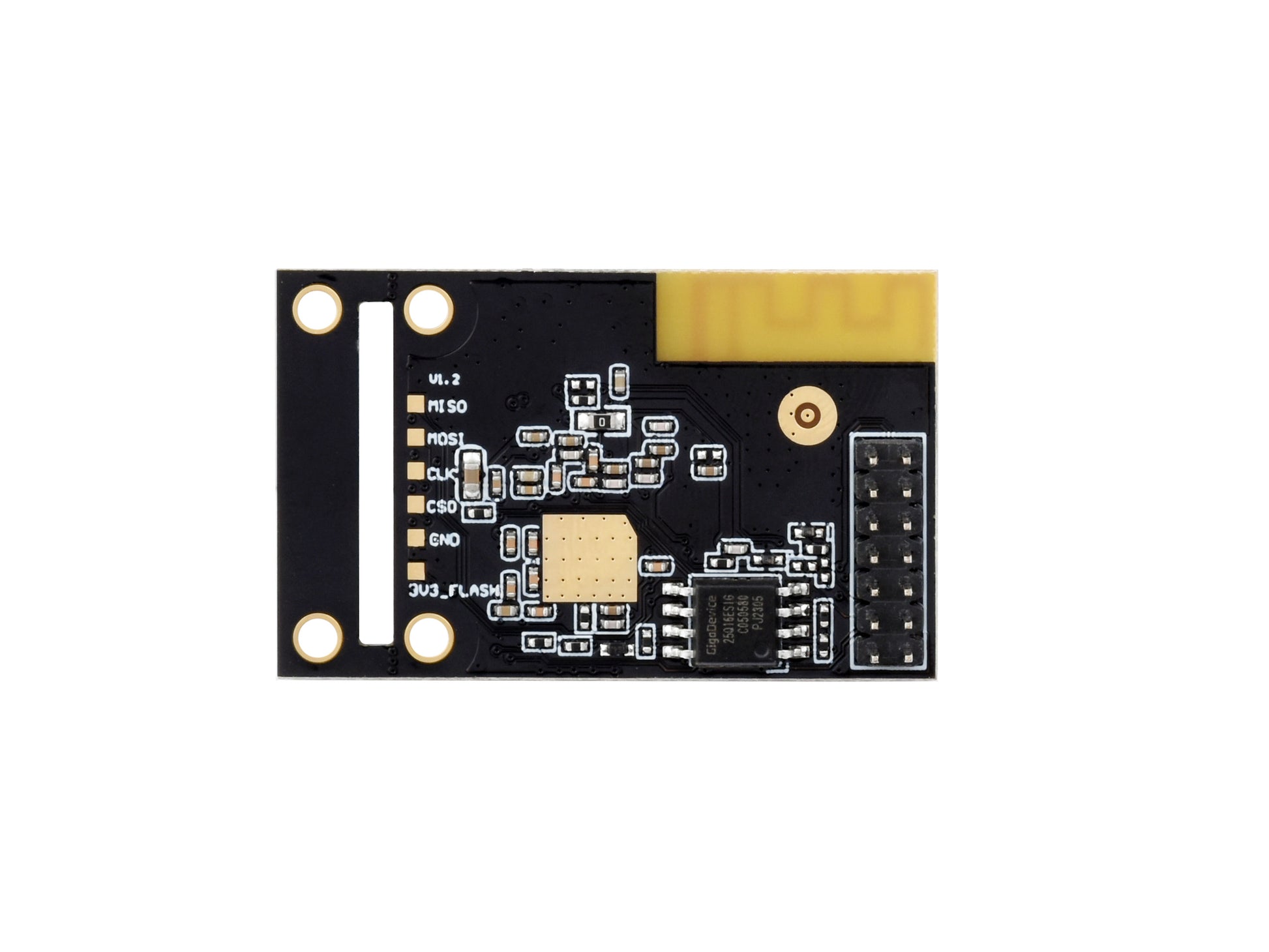

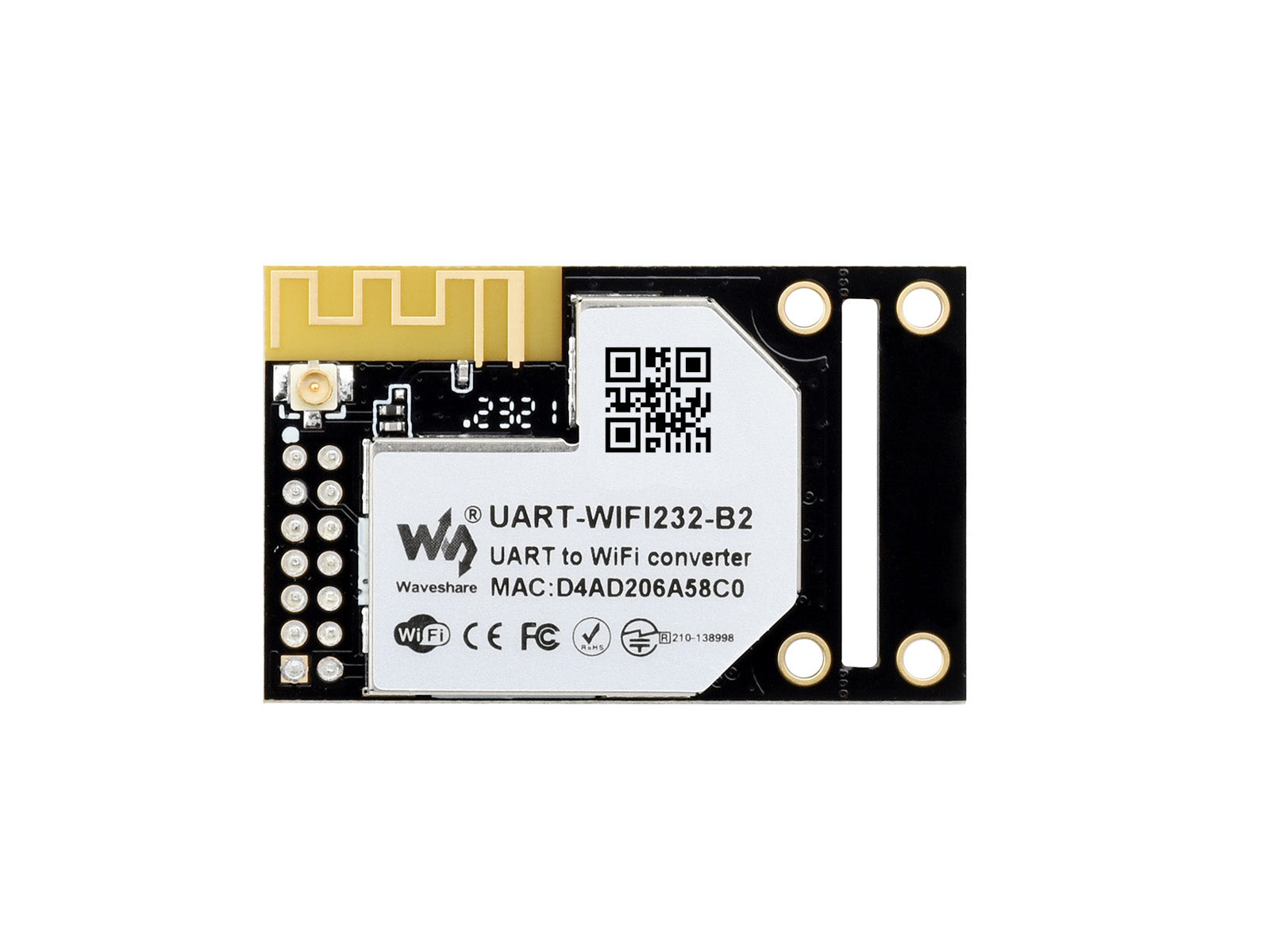

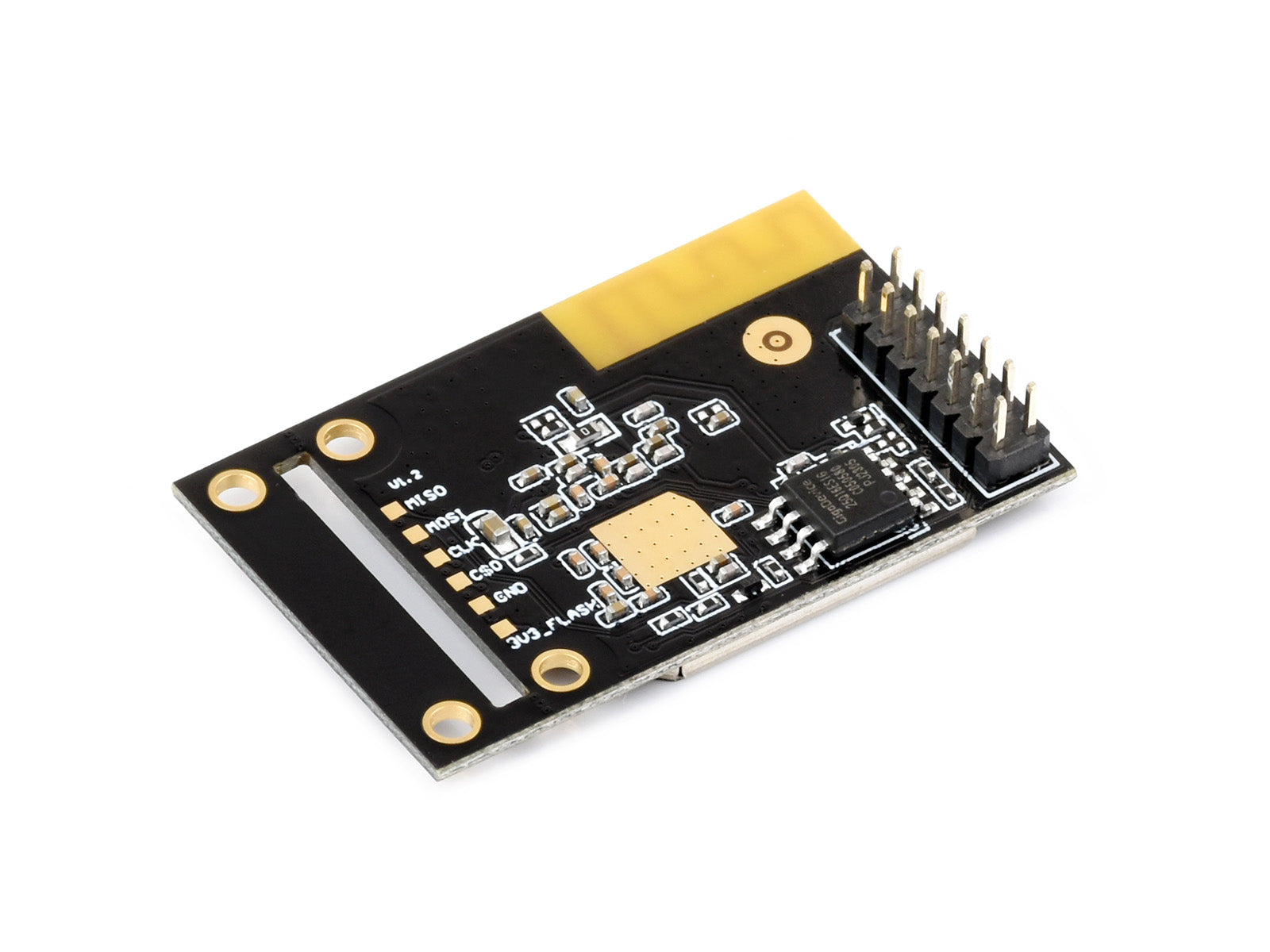

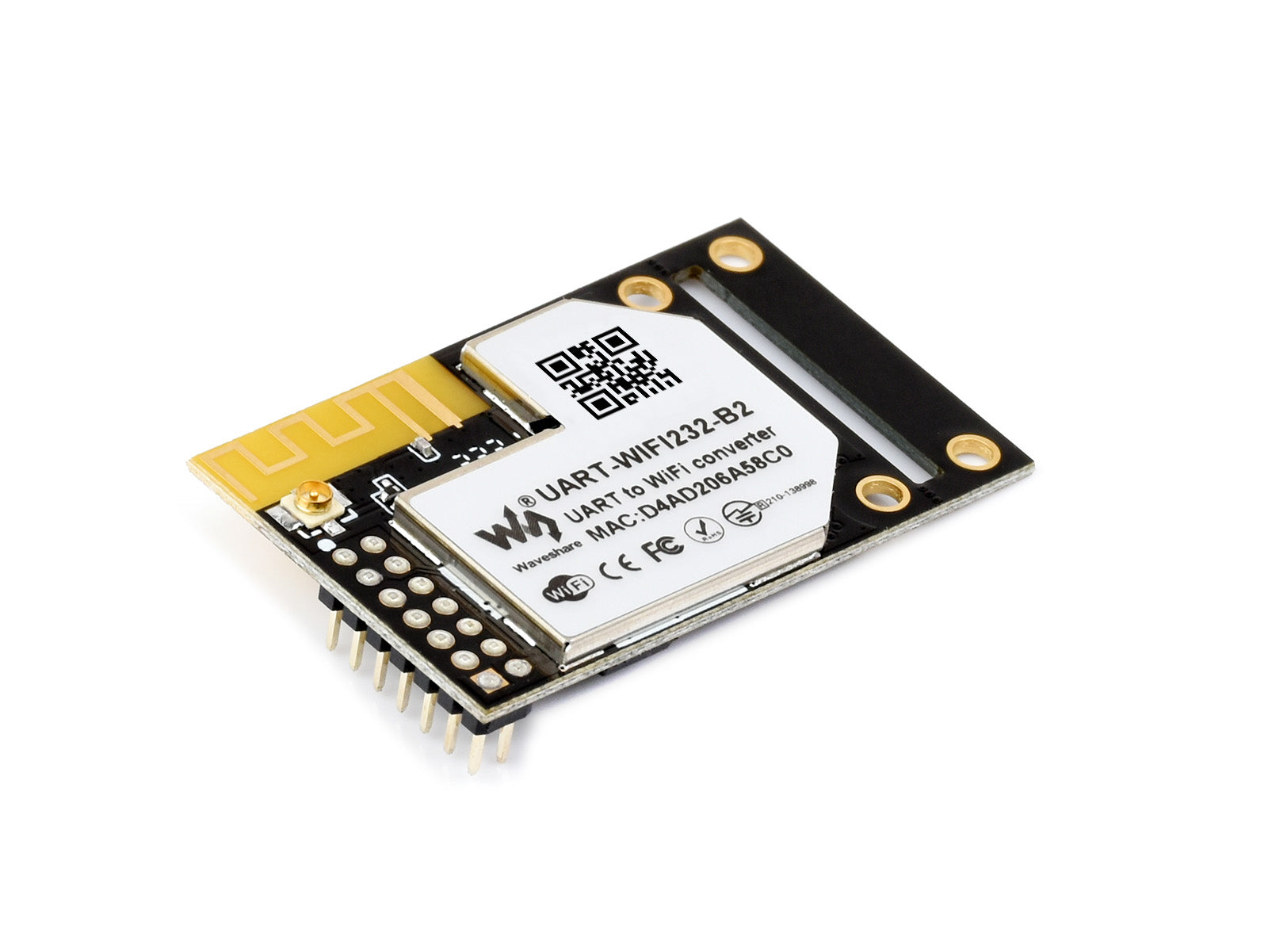

Product Appearance
Outline Dimensions
