Car scanner ELM327 v1.5 OBD2 Bluetooth 1-board, blue

The ELM327 v1.5 OBD2 Bluetooth car scanner is a convenient and effective tool for car diagnostics, allowing you to read information from the electronic control unit and troubleshoot minor problems. Supports all OBD-II protocols and works with most passenger cars manufactured after 1996.

Characteristics

• Model: ELM327 v1.5
• Type: Bluetooth adapter
• Compatibility: Windows and Android (does not work with iOS)
• Bluetooth range: 10 m

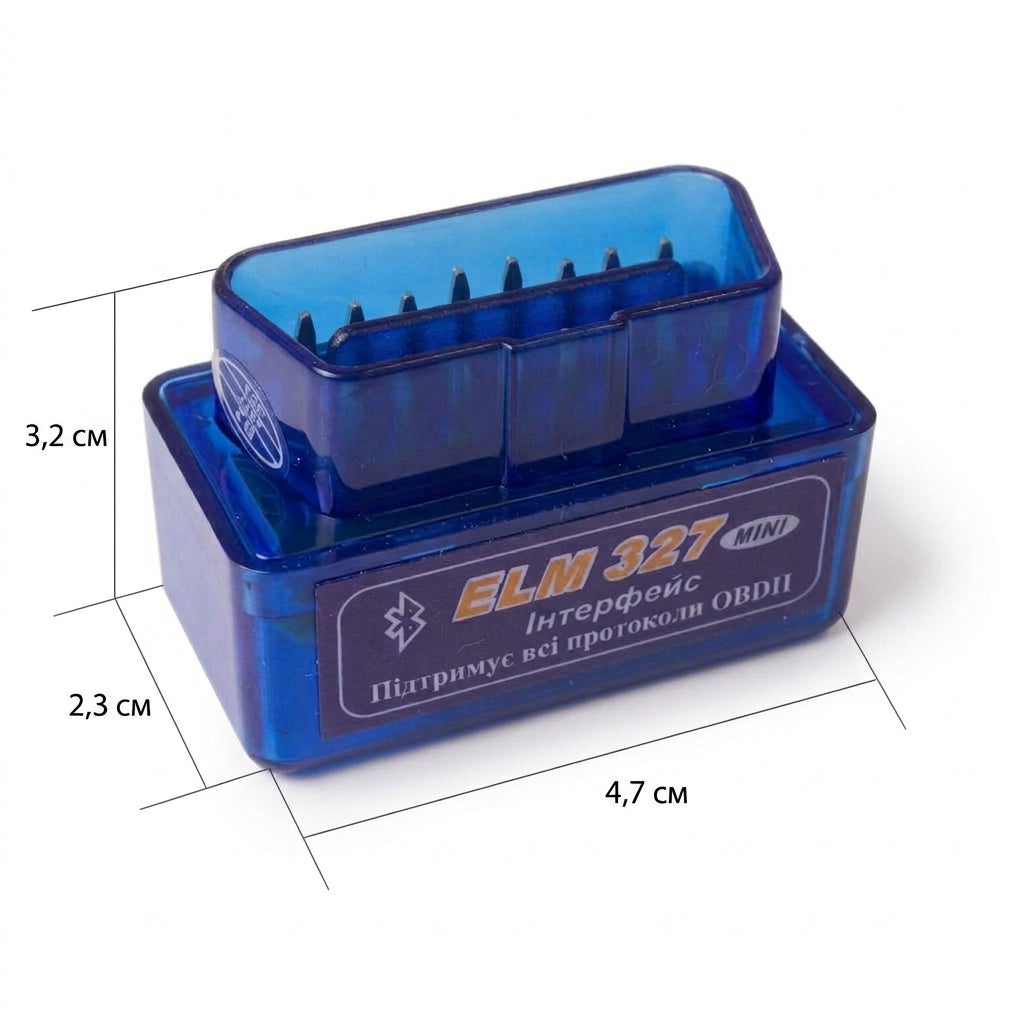

• Dimensions: 3 x 5 x 2.6 cm
• Chip: AB21BPOL
• Bluetooth password: 1234
• Supported protocols: ISO15765-4, ISO14230-4, ISO9141-2, J1850 VPW, J1850 PWM
• Compatible with cars: Acura, Audi, BMW, Ford, Honda, Mercedes-Benz, Nissan, Toyota and others (over 100 brands)

Equipment

• ELM327 V1.5 Bluetooth

Connection assistance

1. Turn on Bluetooth on your phone and search for a device named OBD .
2. Click "Connect" - the system will ask for a password. Enter 1234 and confirm.
3. Open a diagnostic application, such as CarScanner , and in the settings, select the OBD Bluetooth device.
4. Click the "Connect" button in the app. Please note: your phone's Bluetooth settings may NOT show the status "connected" - this is normal, the device is not working as a headset.
