Description

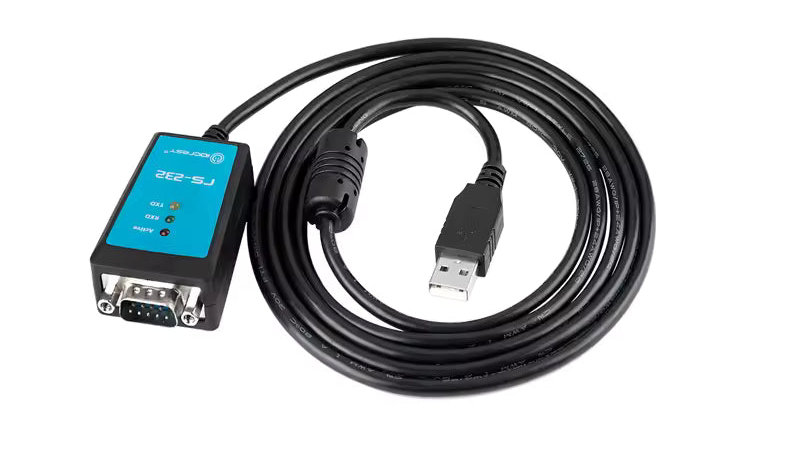

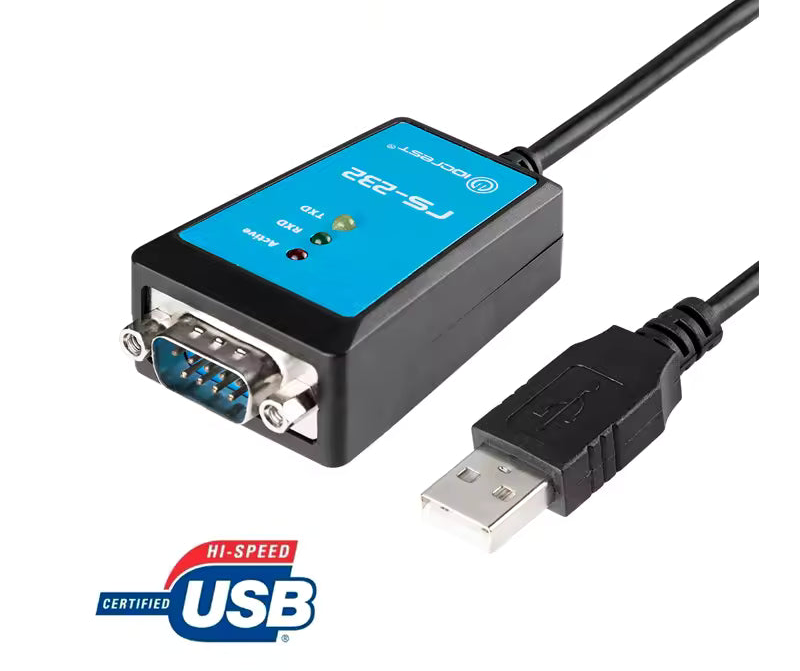

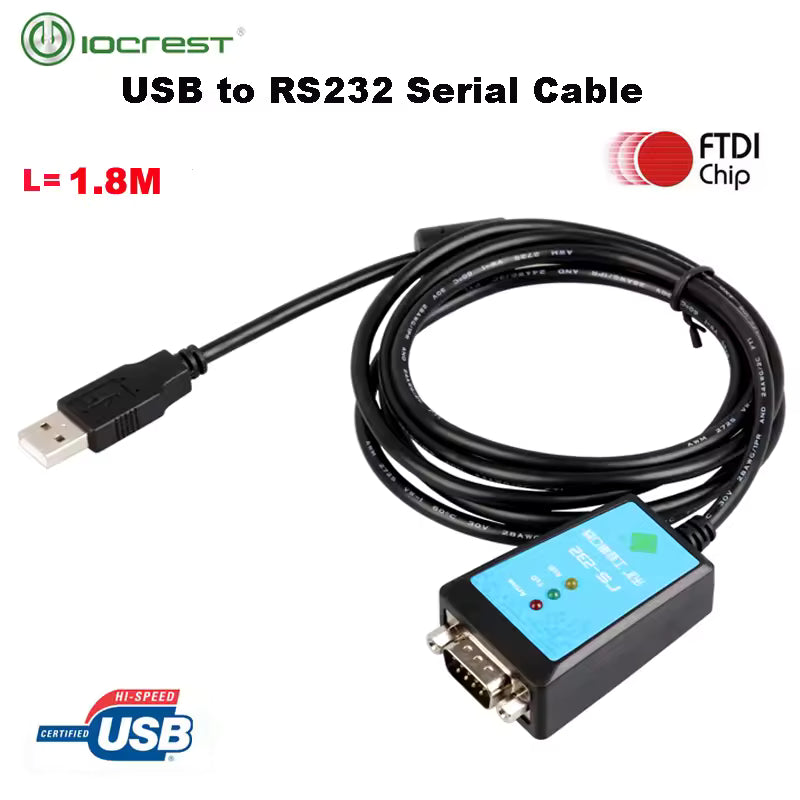

IOCREST USB to RS-232 Cable (FTDI, DB9, 1.8m)
The IOCREST USB to RS-232 cable is designed to connect serial devices (COM, DB9) to a computer via USB. It is equipped with an FTDI chip, ensuring stable operation, high compatibility, and accurate data transmission. Suitable for industrial equipment, POS systems, modems, and diagnostic devices.
Advantages:
• FTDI chipset (high stability and compatibility)
• Speed 300–921600 bps
• USB 2.0 Full Speed

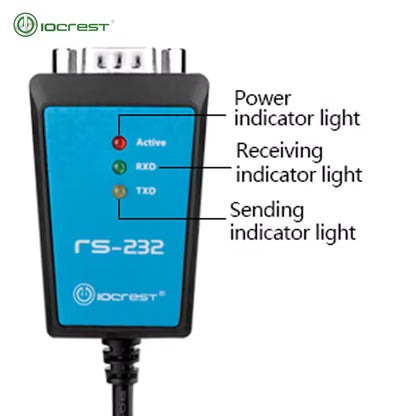

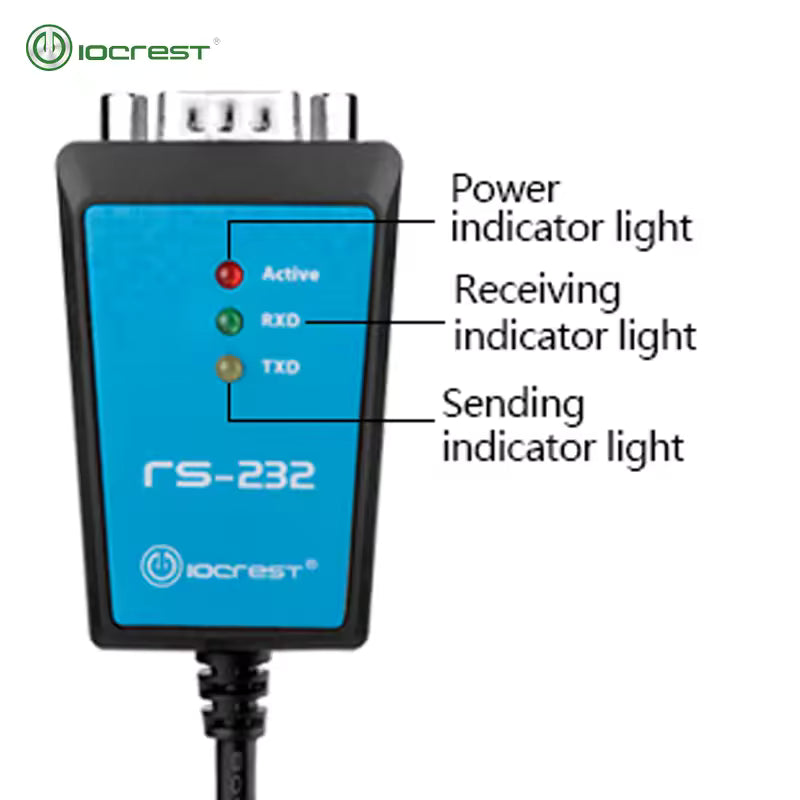

• LEDs: PWR, TXD, RXD
• Magnetic ring for interference reduction
• Support for various flow control modes
• Reliable operation in industrial environments
Specifications:
• Standards: USB 1.0 / 1.1 / 2.0
• Interface: RS-232 (DB9)
• Connectors: USB-A → DB9 (male)
• Cable length: 1.8 m
• USB signals: VCC, DATA+, DATA-, GND, FG
• RS-232 signals: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
• Speed: 300 – 921600 bps
• UART: 7/8 bits, 1/2 stop bits, parity (even/odd/none, etc.)
• Flow control: none / hardware / XON/XOFF
• Indication: PWR, TXD, RXD
• Temperature: -40°C ~ +85°C
• Material: PVC + metal
Compatibility:
Windows (7/8/10/11), macOS, Linux
Applications:
• POS terminals and printers
• Industrial controllers and measurement systems
• Modems and network equipment
• Barcode scanners
• Diagnostic devices

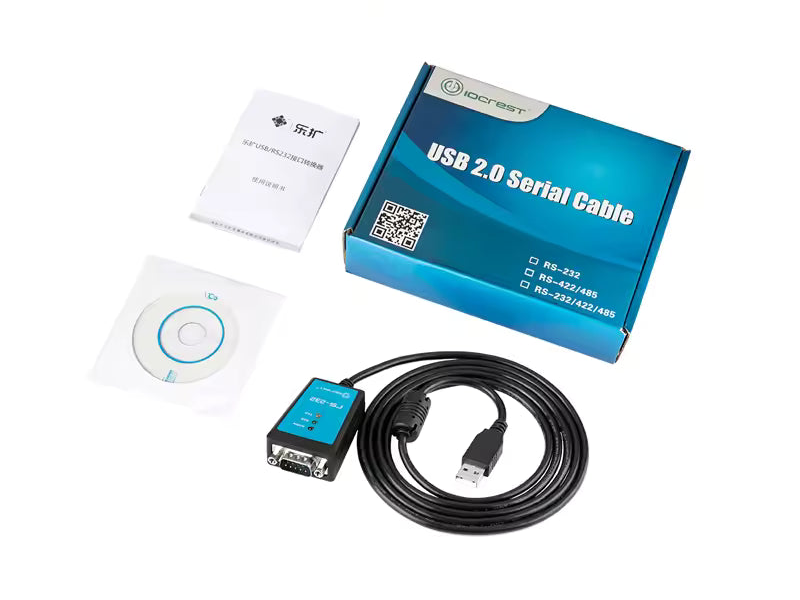

Package contents:
• IOCREST USB to RS-232 cable (1.8m)
