PL2303 USB To UART (TTL) Communication Module Micro USB (24681) Adapter
PL2303 USB To UART (TTL) Communication Module Micro USB (24681) Adapter
SKU: 1105
Out of stock
This item is temporarily out of stock. Call (099) 381-5288 and we will tell you when it is back or suggest an alternative.
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description
Stable Data Transfer | Multi-device Support | Windows Compatibility
Key Features
- Uses the new PL2303GS chip
- Supports Windows XP / 7 / 8 / 10 / 11 and newer versions
- 3 VCCIO power modes via jumper:
- VCCIO — 5V: 5V output
- VCCIO — 3.3V: 3.3V output
- Jumper open: powered by the target board (1.8V / 2.5V / 3.3V / 5V)
- 3 LED indicators: TXD, RXD, PWR
Versions

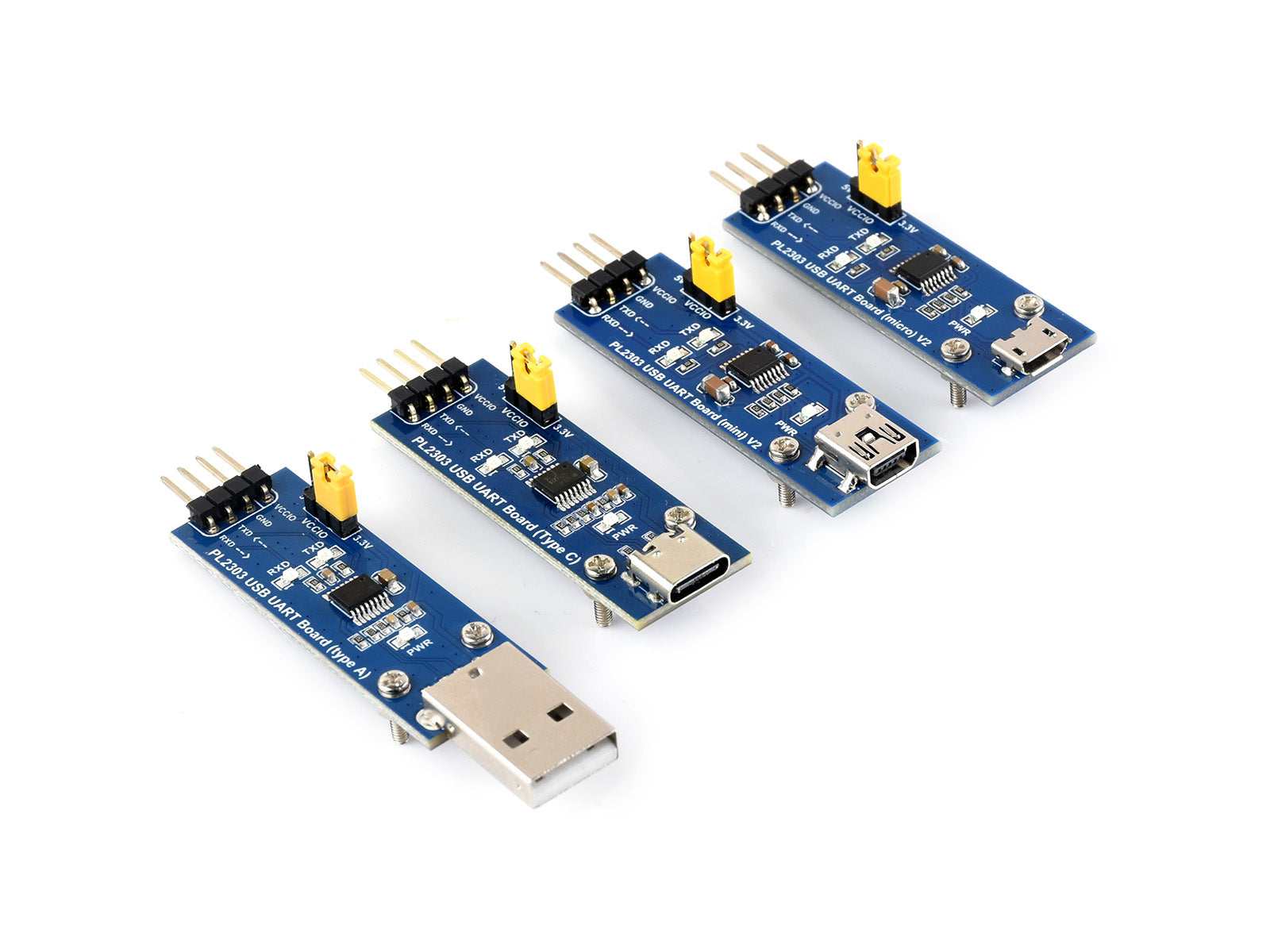

The module is available with four types of USB connectors — choose the option you need:
USB Type A
USB Type C
USB Micro
USB Mini
PL2303-based Solution
The module is built on the new PL2303GS chip, ensuring reliable and stable data transfer between the computer's USB interface and the microcontroller's UART interface.
Connecting to a Microcontroller
Example of connecting the PL2303 USB UART Board (Type A) module to an MCU:
- VCCIO ↔ 3.3V or 5V (module powered by USB; jumper on board set to 3.3V or 5V)
- GND ↔ GND
- TXD ↔ MCU.RX (signal direction: MCU.RX ← PL2303 ← PC.TX)
- RXD ↔ MCU.TX (signal direction: MCU.TX → PL2303 → PC.RX)

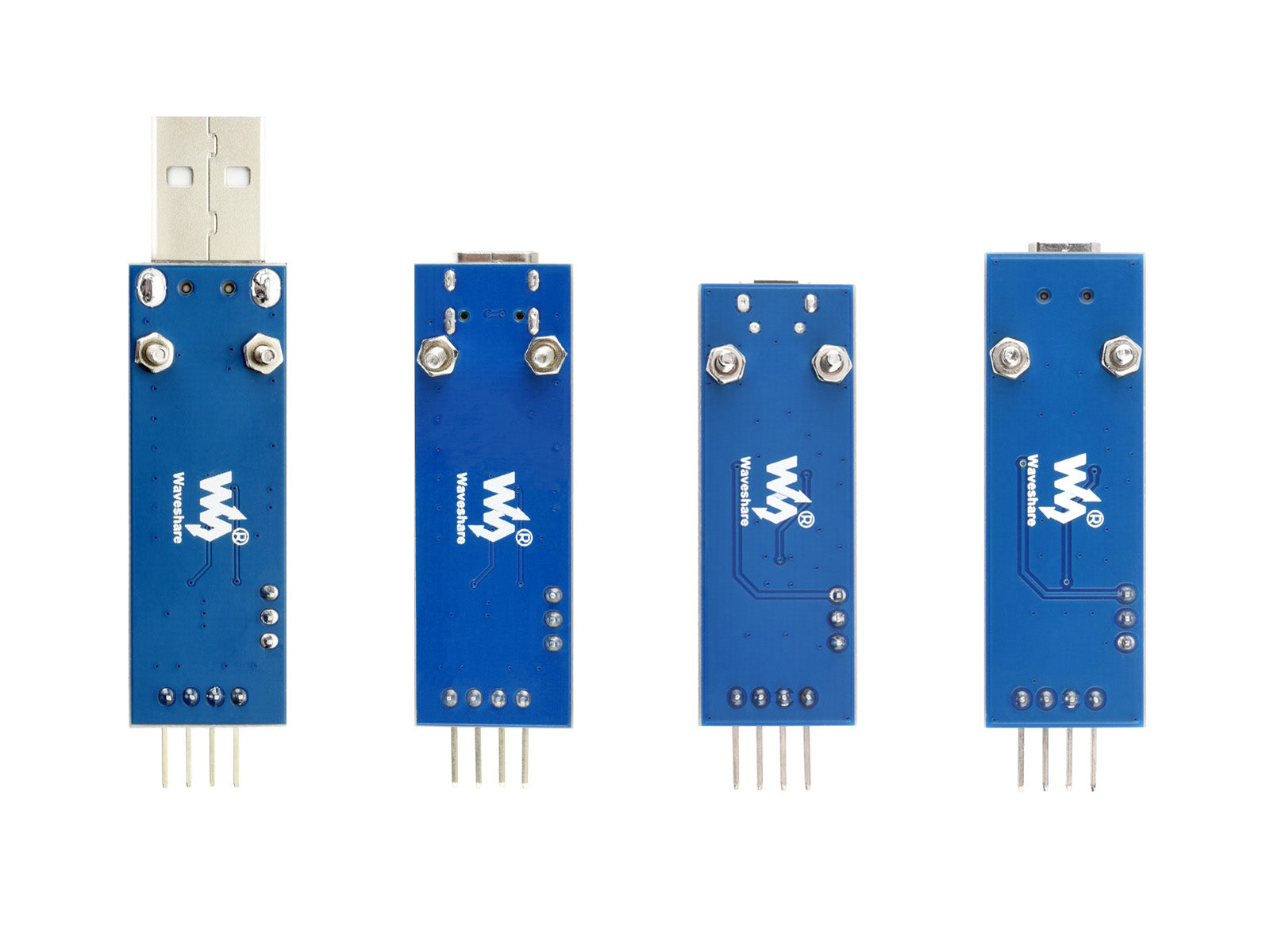

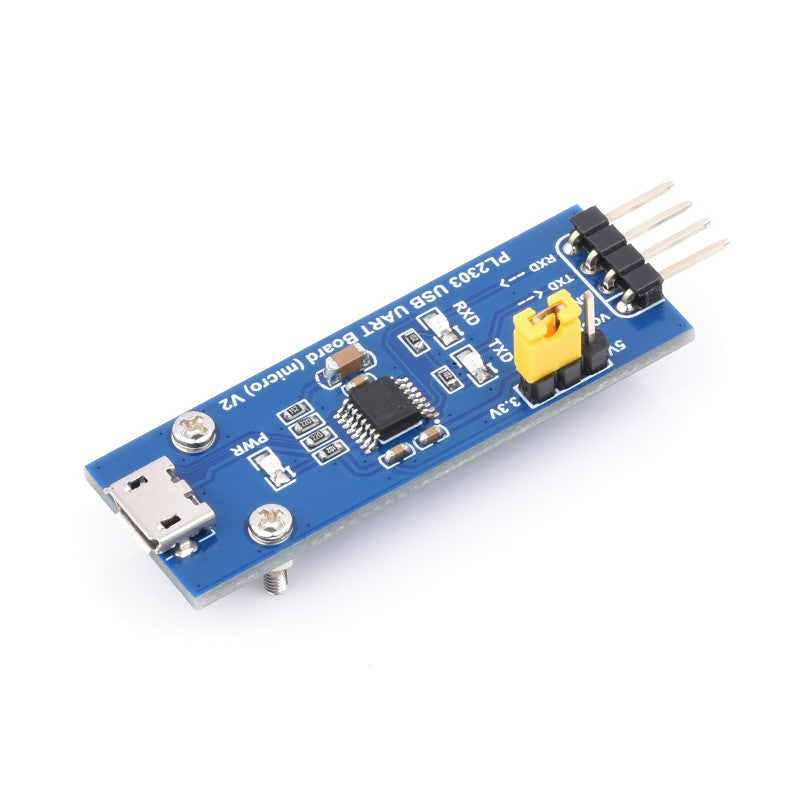

Module Appearance
Dimensions
