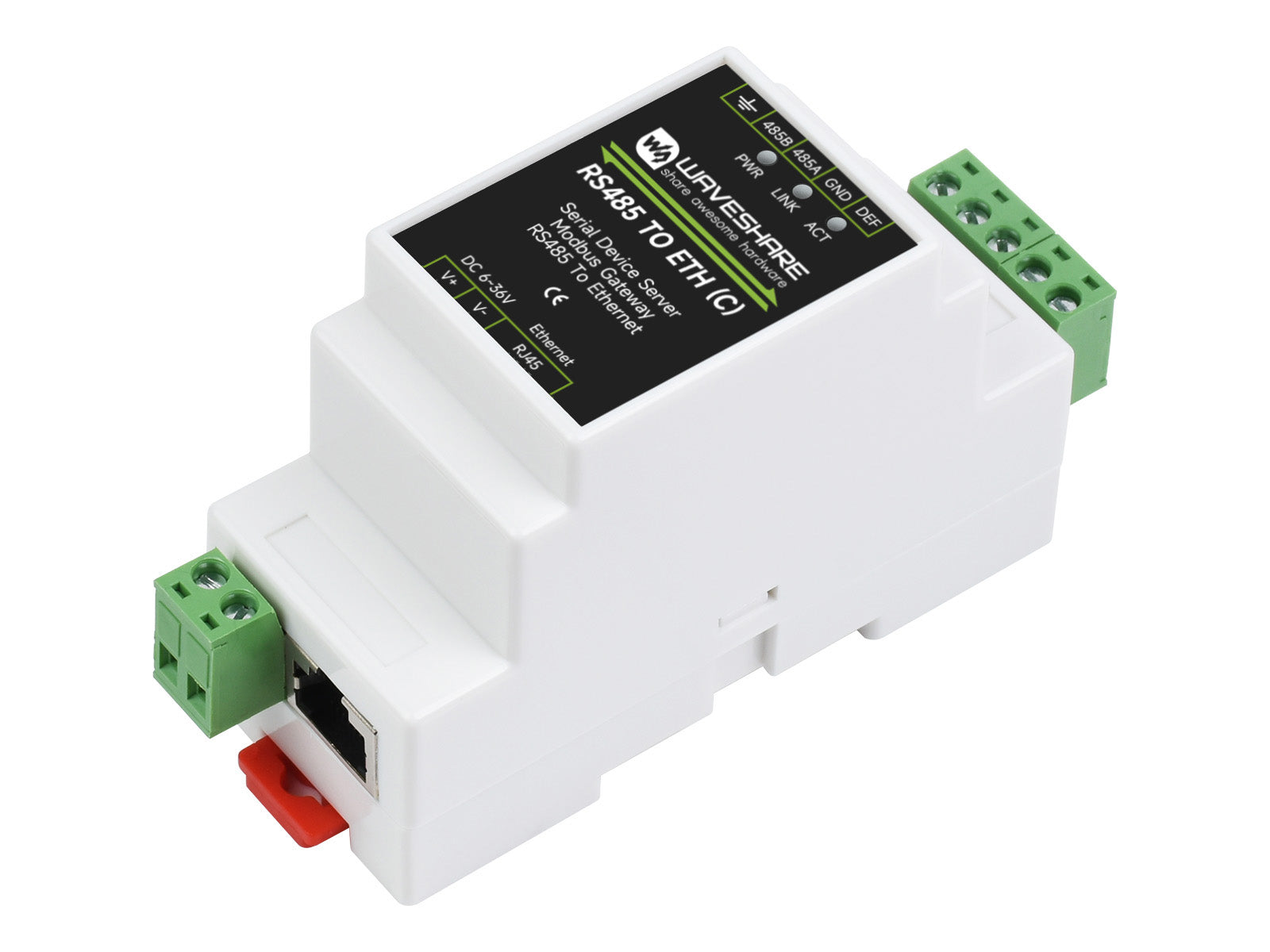

RS485 TO ETH (C) Adapter, with Electrical isolation, Waveshare 30303
RS485 TO ETH (C) Adapter, with Electrical isolation, Waveshare 30303
SKU: 2060
Out of stock
Couldn't load pickup availability
| Warranty 12 months. Return or exchange within 14 days → | |
| Delivery Nova Poshta to branch/locker or courier to your address → | |
| Payment Pay on delivery or prepayment → |
Description
Industrial RS485 to RJ45 Ethernet Serial Server, TCP/IP to Serial, Supports DIN Rail Mounting, with PoE Function (Optional)
RS485 TO RJ45 ETHERNET MODULE
DIN-Rail Mount RS485 Serial Server
VERSION OPTIONS
RS485 TO ETH (B)
Normal Ethernet Port (B)
9~24V Power Supply, No Isolation Protection
RS485 TO ETH (C)
Normal Ethernet Port (C)
6~36V Power Supply, with Electrical Isolation
RS485 TO POE ETH (B)
PoE Ethernet Port + Electrical Isolation
RS485 TO POE ETH (B) is an upgraded version of the hardware, which supports PoE Ethernet port power supply with power and signal isolation protection, making it safer for industrial applications. All three versions have the same software functionality.
OVERVIEW
This is an industrial RS485 data acquisition / IoT gateway, designed for industrial environment. It combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and so on. The module features RS485 and Ethernet port (PoE function is optional), uses screw terminals for power input. DIN-rail mountable case design, compact size, easy to install. It is suitable for applications like data acquisition, IoT gateway, security & IoT, smart instrument monitoring, etc.
SPECIFICATIONS
| Product | RS485 TO ETH (B) | RS485 TO ETH (C) | RS485 TO POE ETH (B) | RS232/485/422 TO ETH (B) | RS232/485/422 TO POE ETH (B) |
|---|---|---|---|---|---|
| Product Type | Serial Server, Modbus Gateway, MQTT Gateway | ||||
| Basic Function | Bi-directional transparent data transmission between RS485 and Ethernet | Bi-directional transparent data transmission between RS232/485/422 and Ethernet | |||
| Communication Interface | RS485 port × 1, Ethernet port × 1 | RS232 port × 1, RS485 port × 1, RS422 port × 1, Ethernet port × 1 | |||
| Power Supply | 9~24V DC, screw terminal | 6~36V DC, screw terminal | 6~36V DC, screw terminal, or PoE port | 5.5V DC jack, 6~36V DC, screw terminal | 5.5V DC jack, 6~36V DC, screw terminal, or PoE port |
| Isolation Protection | None | Power isolation, signal isolation | |||
| Communication | |||||
| Ethernet | Normal network port | PoE network port, supports IEEE 802.3af standard | Normal network port | PoE network port, supports IEEE 802.3af standard | |
| 10/100M auto-negotiation, RJ45 connector, 2KV surge protection | |||||
| Serial Port | RS485 | Isolated RS485 | Isolated RS232/485/422 | ||
| Serial Port Specification | |||||
| Baudrate | 300~115200 bps | ||||
| Parity Bit | None, odd, even, mark, space | ||||
| Data Bit | 5~9 bits | ||||
| Flow Control | N/A | ||||
| Software | |||||
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | ||||
| Configuration | Host, web browser, device management function library | ||||
| Communication Method | TCP/IP direct communication, VCOM | ||||
| Working Mode | TCP server, TCP client (coexists with TCP server), UDP, UDP multicast | ||||
| Environmental Requirements | |||||
| Operating Temperature | −40 °C ~ 85 °C | ||||
| Humidity Range | 5% ~ 95% RH | ||||
| Dimensions | L × W × H: 87 × 36 × 59 mm | L × W × H: 88.7 × 72.5 × 24.2 mm | |||
BASIC FUNCTION
Bi-directional transparent data transmission between RS485 and Ethernet

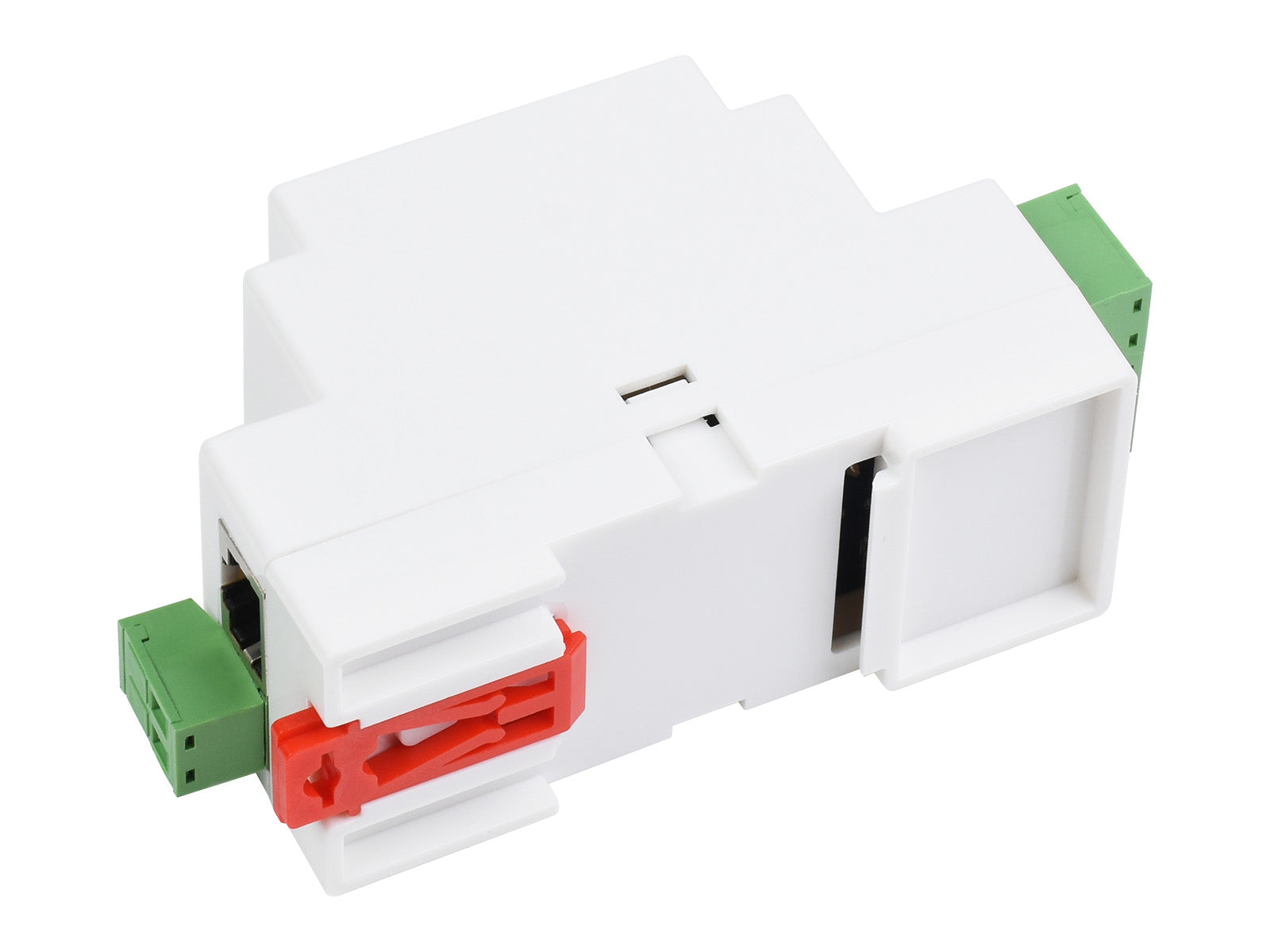

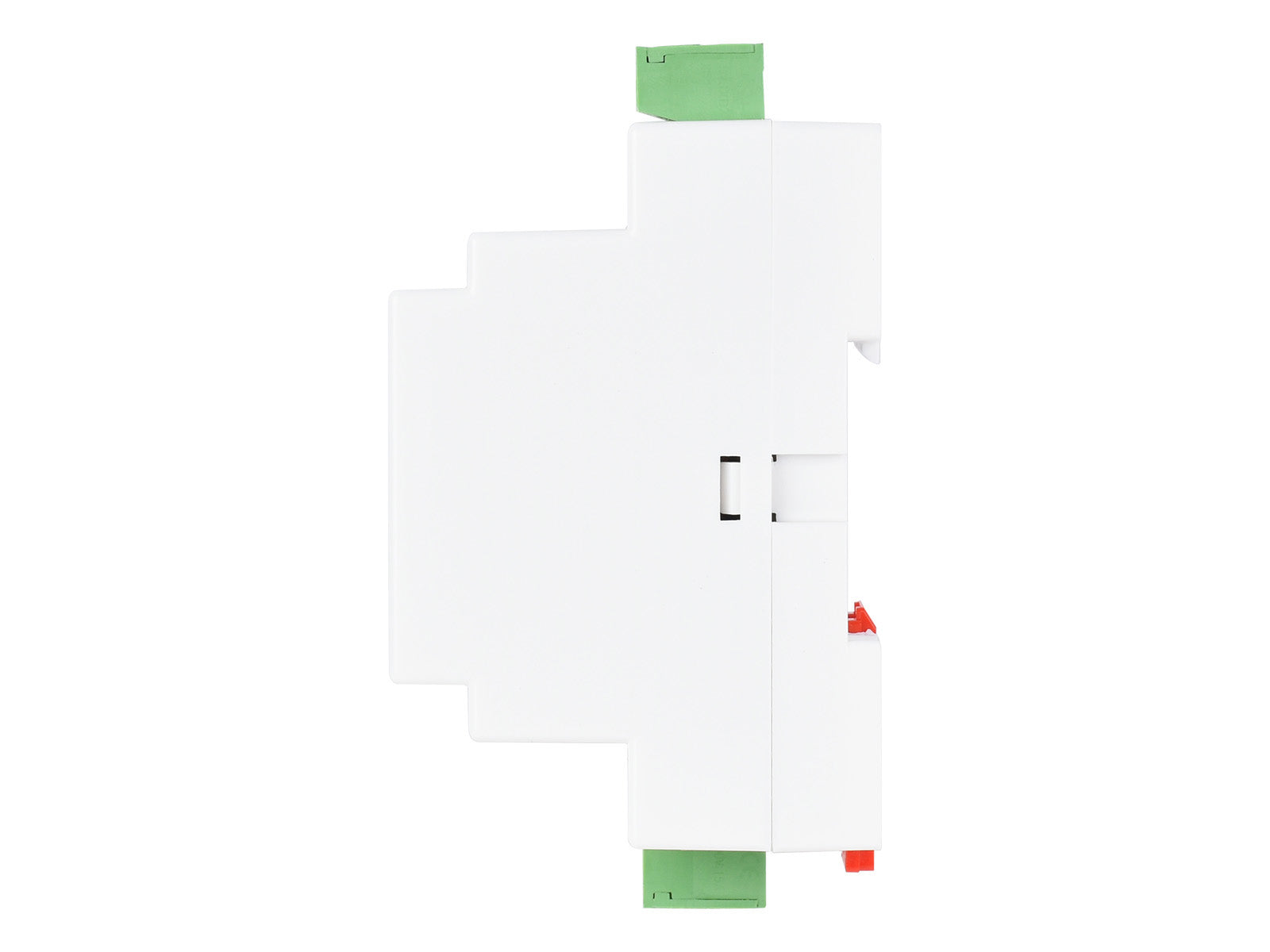

SUPPORTS DIN-RAIL MOUNTING
Easily combine multiple serial servers DIN-rail mounted, more flexible
SUPPORTS MODBUS GATEWAY
Suitable for Modbus network upgrade, can be used with 3D configuration software
MULTIPLE COMMUNICATION MODES
Supports TCP server / TCP client / UDP / UDP multicast mode
MQTT/JSON TO MODBUS
More flexible conversion between different protocols
When used as an MQTT gateway, devices can upload serial data to the MQTT server through the MQTT protocol using transparent transmission. Supported servers include Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, and others. The received Modbus RTU data or non-standard serial data can be parsed in JSON format and packaged into an MQTT data packet for upload.
When used as a JSON data acquisition gateway, devices can be connected to data acquisition instruments via an RS485 connection, then automatically acquire data, convert the data to JSON format, and finally send it to the server. The acquired data supports Modbus RTU 645 meter version 97, 645 meter version 07, as well as various non-standard RS485 protocols. The format of the uploaded data can be configured via the host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, etc.
SUPPORTS MULTI-HOST POLLING
Different network devices will be identified and respond accordingly,
no more crosstalk problems when communicating with multiple network devices
CUSTOM HEARTBEAT/REGISTRATION PACKET
Easy for cloud communication and device identification
SUPPORTS NTP PROTOCOL
Obtaining network time information for serial output or data upload
MULTIPLE CONFIGURATION METHODS
Supports web browser configuration, dynamic IP address acquisition via DHCP,
DNS protocol to connect to the domain server address

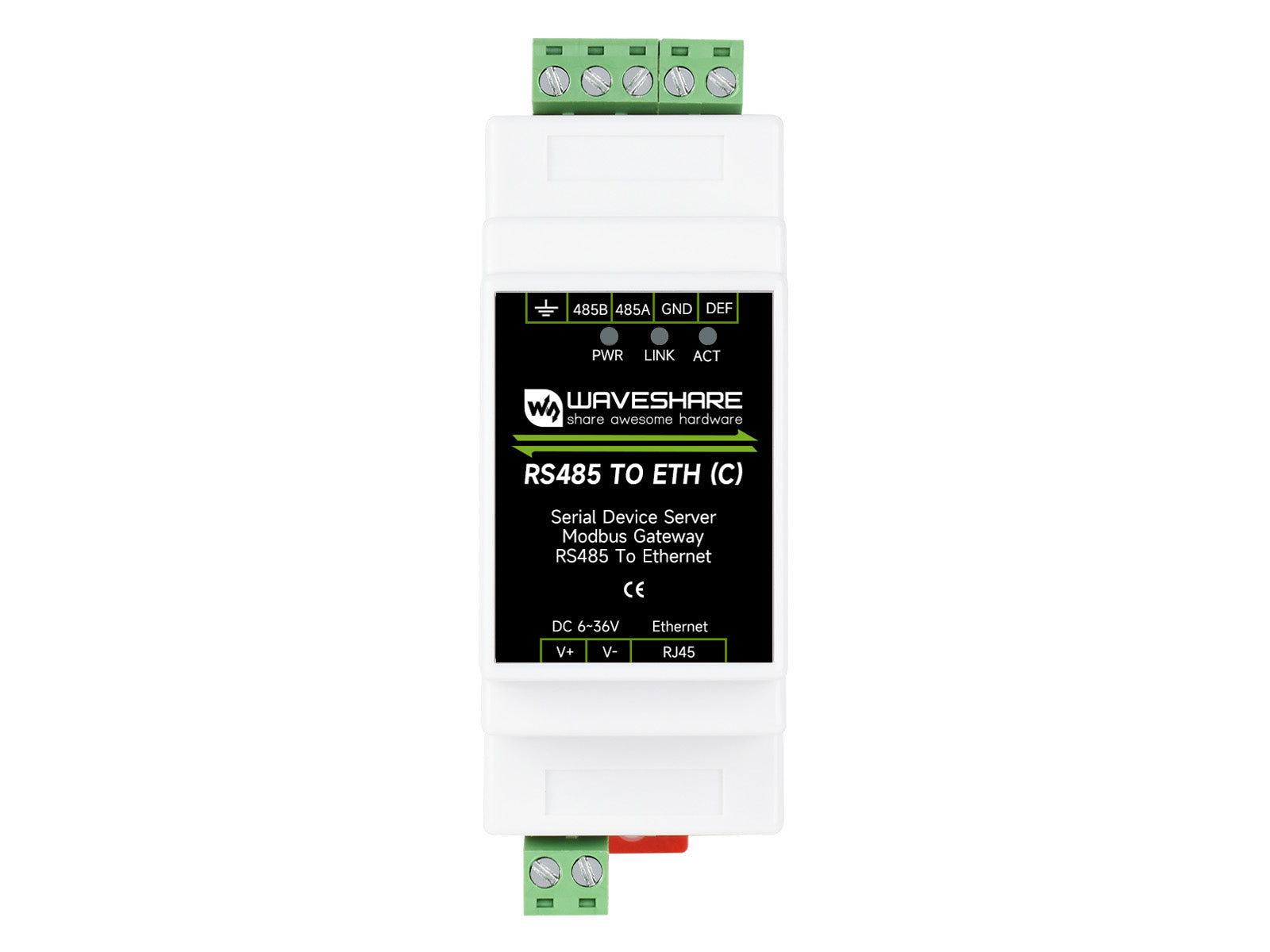

INTERFACE DESCRIPTION
* For power supply range, please refer to the label of the corresponding version.
OUTLINE DIMENSIONS
RESOURCES & SERVICES
Wiki: www.waveshare.com/wiki/RS485_TO_ETH_(B)
Wiki: www.waveshare.com/wiki/RS485_TO_ETH_(C)
Wiki: www.waveshare.com/wiki/RS485_TO_POE_ETH_(B)
SELECTION GUIDE
| Model | Network Port | Isolation Protection | Serial Port Type | Power Supply Methods | Voltage Range | Dimensions (L × W × H) |
|---|---|---|---|---|---|---|
 RS485 TO ETH (B) |
Normal network port | — | Single port serial server | Screw terminal | 9~24V DC | 87.0 × 36.0 × 59.0 mm |
 RS485 TO POE ETH (B) |
PoE network port | Power isolation, signal isolation | Single port serial server | Screw terminal + PoE port | 6~36V DC | 87.0 × 36.0 × 59.0 mm |
 RS485 TO ETH (C) |
Normal network port | Power isolation, signal isolation | Single port serial server | Screw terminal | 6~36V DC | 87.0 × 36.0 × 59.0 mm |
 RS232 TO ETH (B) |
Normal network port | Power isolation, signal isolation | Single port serial server | Screw terminal | 6~36V DC | 87.0 × 36.0 × 59.0 mm |
